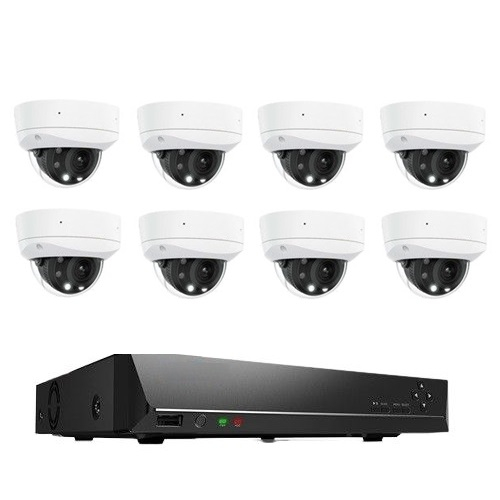

Reolink RLK16-843V8 8-Camera Bundle RLK16-843V8 Smart 4K 8MP IK10 Power Over Ethernet (PoE) Dome Camera System with 5x Optical Zoom, 16-Channel Network Video Recorder (NVR), 8 Cameras

  • Part #:RLK16-843V8 8-Camera Bundle
  • Model #:RLK16-843V8
  • Condition:Brand New
0
Reviews Write a Review Questions & Answers
Reolink RLK16-843V8 8-Camera Bundle RLK16-843V8 Smart 4K 8MP IK10 Power Over Ethernet (PoE) Dome Camera System with 5x Optical Zoom, 16-Channel Network Video Recorder (NVR), 8 Cameras
  • $1,480.00 / Kit
  • Free Shipping logoFree Shipping
  • $1,480.00 / Kit
  • Free Shipping logoFree Shipping
Typically In Stock
Check Availability
Quantity:
Description
See more product information Report an issue with this product
⚠️ Attention CA Residents: Prop 65 Warning
Technical details
Video & Audio
  • Image Sensor: 1/2.8" CMOS sensor
  • Resolution: 3840 x 2160 (8 megapixels) at25fps
  • Lens: f=2.7-13.5mm, Max: F1.6
  • Video Compression: H.265
  • Zoom: 5X optical zoom
  • Field of View:
    • Horizontal: 100°- 31°
    • Vertical: 55°- 17°
    • Diagonal: 123°-39°
  • Infrared Night Vision: Up to 30 meters (100ft); LED: 4pcs/2.8W/850nm (Auto-switching with IR-cut filter)
  • Color Night Vision: With spotlights: 2pcs/3.2W/6500K
  • Frame Rate:
    • Mainstream: 2fps - 25fps (default: 25fps)
    • Substream: 4fps - 15fps (default: 10fps)
  • Code Rate:
    • Main stream: 1024Kbps - 8192Kbps (default: 6144Kbps)
    • Sub stream: 64Kbps - 512Kbps (default: 256Kbps)
  • Audio: Two-way audio
Power Requirements
  • PoE: IEEE 802.3af, 48V, active
  • DC Power: DC 12.0V=1A, <12W
Interface
  • Power Port: DC power port
  • Ethernet Port: One 10M/100Mbps; RJ45
  • SD Card Slot: Supports Max. 256GB microSD card
  • Reset Button: YES
  • Audio In/Out: Built-in microphone and speaker
Software
  • Browsers Supported: Edge, Chrome, Firefox, Safari
  • OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
  • Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
  • User Access: Max. 20 users (1 admin & 19 users); Max. 12 simultaneous streams (2 main & 10 sub streams)
Other Features
  • Smart Alarm: Motion detection; person detection; vehicle detection; animal detection
  • Time Lapse: YES
  • Smart Home Compatibility: Google Assistant
Software Features
  • Recording Modes: Motion-triggered recording (default); scheduled recording; 24/7 recording
Working Environment
  • Operating Temperature: -10°C to +55°C (14°F to 131°F)
  • Operating Humidity: 10% to 90%
  • Weatherproof: IP67
Mechanical
  • Dimensions: Φ132.7 x 98.3mm
  • Weight (Battery Included): 751g
Hardware
  • 4TB HDD: N6MB01
Video/Audio Input
  • Video Input: Cameras with built-in mic
  • Audio Input: Cameras with built-in mic
Video/Audio Output
  • Video Output: VGA, HDMI
  • HDMI Output Resolution: N/A
  • VGA Output Resolution: N/A
  • Audio Output: 1-channel, RCA
Decoding
  • Video Format: H.265, H.264
  • Live View / Playback Resolution: N/A
  • Synchronous Playback: Up to 4 channels
Storage
  • Internal HDD: N/A
  • External HDD: N/A
  • Capacity: N/A
External Interface
  • USB Interface: 2 x USB 2.0
Network
  • PoE: Supported
  • Max. Power Per Port: 25W
  • Supported Standard: IEEE 802.3 af/at
Network Protocols
  • Browsers Supported: Edge, Chrome, Firefox, Safari
  • OS Supported: PC: Windows, Mac OS; smartphone: iOS, Android
  • Max. User Access: 20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General
  • Power Supply: DC 48V~54V
  • Power Consumption: <10W (without HDD & PoE)
  • Working Environment:
    • Temperature: -10°C~+45°C (14°F~113°F)
    • Humidity: 10%~90%
Mechanical
  • Dimensions: 330 x 45 x 285mm
  • Weight: 2.4kg
