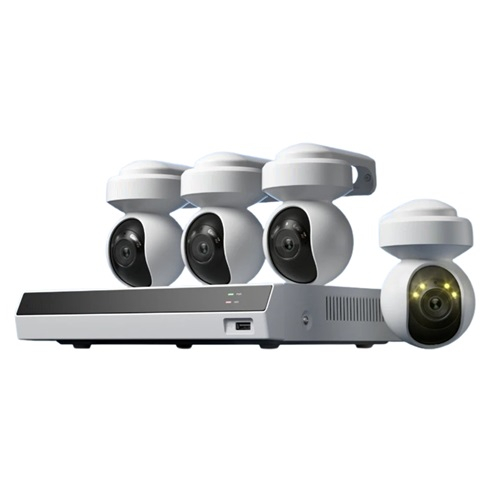

Reolink RLK8-800PT4 1-Pack RLK8-800PT4 4K PoE PT Outdoor Surveillance System with White Network Video Recorder (NVR)

  • Part #:RLK8-800PT4 1-Pack
  • Model #:RLK8-800PT4
  • Condition:Brand New
0
Reviews Write a Review Questions & Answers
Reolink RLK8-800PT4 1-Pack RLK8-800PT4 4K PoE PT Outdoor Surveillance System with White Network Video Recorder (NVR)
  • $690.00 / Kit
  • Free Shipping logoFree Shipping
  • $690.00 / Kit
  • Free Shipping logoFree Shipping
Typically In Stock
Check Availability
Quantity:
Description
See more product information Report an issue with this product
⚠️ Attention CA Residents: Prop 65 Warning
Technical details
Video & Audio
  • Image Sensor: 1/2.7" CMOS sensor
  • Resolution: 3840x2160 (8 megapixels) at25fps
  • Lens: f=4mm, F1.6
  • Video Compression: H.265/H.264
  • Zoom: 10X digital zoom
  • Field of View:
    • Horizontal: 88°
    • Vertical: 45°
  • Infrared Night Vision: Up to 12 meters (40ft); LED: 10pcs/1.4W/850nm (Auto-switching with IR-cut filter)
  • Color Night Vision: With spotlights: 4pcs/3.3W/3000K (Adjustable)
  • Frame Rate:
    • Main stream: 2fps - 25fps (default: 25fps)
    • Sub stream: 4fps - 15fps (default: 10fps)
  • Code Rate:
    • Main stream: 2048Kbps - 8192Kbps (default: 6144Kbps)
    • Sub stream: 64Kbps - 512Kbps (default: 256Kbps)
  • Audio: Two-way audio
Power
  • PoE: IEEE 802.3af, 48V, active
  • DC Power: DC 12V=1A, <12W
Interface
  • Power Port: DC power port
  • Ethernet Port: One 10M/100Mbps; RJ45
  • SD Card Slot: Supports Max. 256GB microSD card
  • Reset Button: YES
  • Audio In/Out: Built-in microphone and speaker
Pan & Tilt
  • PT Angle (Max.): Pan: 355°, Tilt: 50°
  • Preset Points: Supports 1 guard position & up to 64 preset positions
  • Auto Tracking: YES
Software
  • Browsers Supported: Edge, Chrome, Firefox, Safari
  • OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
  • Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
  • User Access: Max. 20 users (1 admin & 19 users); Max. 12 simultaneous streams (2 main & 10 sub streams)
Other Features
  • Smart Alarm: Motion detection; person detection; vehicle detection; animal detection
  • Recording Modes: Motion-triggered recording (default); scheduled recording; 24/7 recording
  • Time Lapse: YES
  • Smart Home Compatibility: Google Assistant
Working Environment
  • Operating Temperature: -10°C~+50°C (14°F~126°F)
  • Operating Humidity: 20% ~ 85%
  • Weatherproof: IP65
Mechanical
  • Dimensions: Φ90x120mm
  • Weight: 446g
Hardware
  • N7MB01
Video/Audio Input
  • IP Video Input: PoE IP camera x 8
  • Audio Input: Cameras with built-in mic
Video/Audio Output
  • HDMI Output Resolution: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
  • VGA Output Resolution: 1920x1080, 1280x1024, 1280x720, 1024x768
  • Audio Output: 1-channel, RCA
Decoding
  • Video Format: H.264, H.265
  • Synchronous Playback: Up to 4 channels
HDD
  • SATA: 1 x SATA interface (1 x 2TB HDD included)
  • External HDD: 1 eSATA interface for HDD
  • Capacity: Up to 16TB (max. 6TB capacity for each HDD)
External Interface
  • USB Interface: 2 x USB 2.0
  • Network Interface:
    • 1, RJ-45-10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN
    • 8, RJ-45-10/100 Mbps self-adaptive PoE Ethernet interface for IP camera
PoE
  • Max. Power Per Port: 25W
  • Supported Standard: IEEE 802.3af/at
Network
  • Network Protocols: HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
  • Browsers Supported: Edge, Firefox, Chrome, Safari
  • OS Supported: PC: Windows, Mac OS; smartphone: iOS, Android
  • Max. User Access: 20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General
  • Power Supply: DC 48V~53V
  • Power Consumption: <10W (without HDD & PoE)
  • Working Environment:
    • Temperature: -10°C~+45°C (14°F~113°F)
    • Humidity: 10%~90%
  • Dimensions: 260 x 41 x 230mm
  • Weight: 1.4kg
