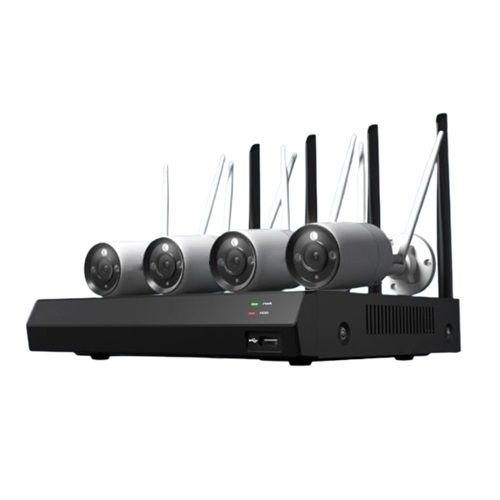

Reolink RLK12-800WB4 1-Pack RLK12-800WB4 All-Powerful 4K Security Kit with Next-Gen Wi-Fi 6

Part #:RLK12-800WB4 1-Pack
Model #:RLK12-800WB4
Condition:Brand New

$679.70 / Kit
Free Shipping

$679.70 / Kit
Free Shipping

Typically In Stock

Check Availability

Quantity:

Description

RLK12-800WB4 All-Powerful 4K Security Kit with Next-Gen Wi-Fi 6

2.4/5 GHz Dual-Band WiFi
4K 8MP Ultra HD
Person/Vehicle/Animal Detection
16-Channel NVR with 2TB HDD

All-Around Protection, All in Control. Easily build your own security center with this powerful WiFi camera system. No more messy and expensive network cabling. The cameras in it can be managed via the NVR to stand guard over every inch of your property. Everything is under your control.

Next-Gen Wi-Fi 6. With dual-band Wi-Fi 6, the system achieves long-distance streaming with faster speed and stronger signal. The BSS Coloring technology minimizes the co-channel interference, while OFDMA and MU-MIMO technologies maximize the network efficiency, leading to reduced latency and jittering.

4K Stunning Videos, Day & Night.4K Ultra HD opens up a world of possibilities. Say goodbye to blurry images and hello to crystal-clear visuals. Enjoy full-color nighttime footage or switch to black & white vision as you like.

Your System, Your Choice. Expand your system with up to 16 IP cameras-whether plug-in Wi-Fi, battery-powered Wi-Fi, or PoE. Secure every inch of your home, store, or factory, and enjoy the creative freedom to design a security system that suits your unique needs.

Bundle of

4xB800W Cameras
1xRLN12W Network Video Recorder
White 4x White Cable

See more product information Report an issue with this product

⚠️ Attention CA Residents: Prop 65 Warning

📈 Tariffs may impact pricing; subject to manufacturer updates.

Specification Sheet
You May Also Like
Your Recently Viewed
Reviews
Q&A

Technical details

Video/Audio Input	IP Video Input: Up to 16 IP cameras Audio Input: Cameras with built-in mic
Video/Audio Output	Video Output: VGA, HDMI Audio Output: 1-channel, RCA
Decoding	Video Compression: H.265/H.264 Synchronous Playback: Up to 4 channels
HDD	SATA: 1 x SATA interface (1 x 2TB HDD included) Capacity: Up to 16TB
External Interface	USB Interface: 2 x USB 2.0 Network Interface: 4 x RJ-45, 10/100 Mbps self-adaptive (for IP cameras); 1 x RJ-45, 10/100 Mbps self-adaptive (for LAN/WAN)
Wi-Fi	Wireless Standard: IEEE 802.11a/ac/ax/b/g/n Operating Frequency: 2.4 GHz/5 GHz Wireless Security: WPA/WPA2/WPA3
Network	Network Protocols: HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP Browser Supported: Edge, Firefox, Chrome, Safari OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
Max. User Access	Max. 20 users (1 admin & 19 users) Max. 12 simultaneous streams (10 substreams & 2 mainstreams)
General	Power Supply: DC 12V/2A Power Consumption: <10W (with 2TB HDD)
Working Environment	Temperature: -10°C ~ +45°C (14°F ~ 113°F) Humidity: 10% ~ 90%
Dimensions	255mm (W) x 49.5mm (H) x 222.7mm (D)
Weight	1.4kg

Video & Audio	Image Sensor: 1/2.7" CMOS sensor Resolution: 3840 x 2160 (8 megapixels) at20fps Video Compression: H.265/H.264 Field of View: Horizontal: 88.8° Vertical: 45.2° Diagonal: 106.2° Infrared Night Vision: Up to 30 meters (100ft); LED: 2pcs/1.8w/850nm (Auto-switching with IR-cut filter) Color Night Vision: With spotlights: 1pcs/4.3w/6500k Frame Rate: Mainstream: 2fps - 20fps (default: 20fps) Substream: 20fps Code Rate: Mainstream: 2048Kbps - 5120Kbps (default: 4096Kbps) Substream: 1228Kbps Audio: Two-way audio
Power Requirements	DC Power: DC 12.0V=1A, <12W
Interface	Power Port: DC power port Ethernet Port: One 10M/100Mbps; RJ45 Reset Button: YES Audio In/Out: Built-in microphone and speaker
Wi-Fi	Wireless Standard: IEEE 802.11a/ac/ax/b/g/n Operating Frequency: 2.4 GHz/5 GHz Wireless Security: WPA/WPA2/WPA3
Software	Protocols & Standards: SSL, TCP/IP, UDP, UPNP, NTP, DHCP, DNS, DDNS
Other Features	Smart Alarm: Motion detection; person detection; vehicle detection; animal detection
Working Environment	Operating Temperature: -10°C~+55°C (14°F~131°F) Operating Humidity: 10% ~ 90% Weatherproof: IP67
Mechanical	Dimensions: Φ67 x 187mm Weight: Battery Included
