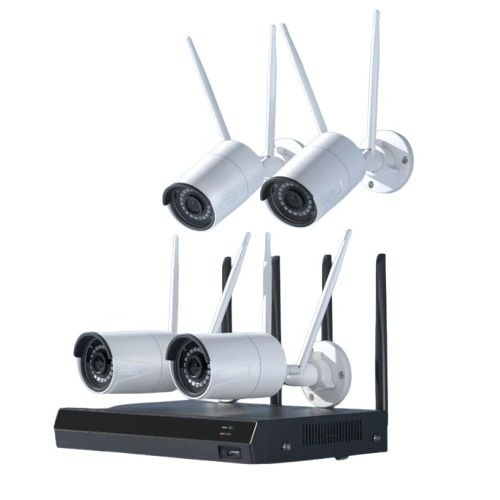

Reolink RLK12-500WB4 Standard Kit RLK12-500WB4 Smart 2K+ 5MP Wi-Fi Surveillance System with 24/7 Recording

Part #:RLK12-500WB4 Standard Kit
Model #:RLK12-500WB4
Condition:Brand New

$423.25 / Kit
Free Shipping

$423.25 / Kit
Free Shipping

Typically In Stock

Check Availability

Quantity:

Description

RLK12-500WB4 Smart 2K+ 5MP Wi-Fi Surveillance System with 24/7 Recording

2.4/5 GHz Dual-Band Wi-Fi
5MP Super HD
Person/Vehicle/Animal Detection
16-Channel NVR with 1TB HDD

Your Personal Security Hub. Transform your space into a fortress with this Wi-Fi security system. Manage all cameras effortlessly through the NVR, ensuring every inch of your property is seamlessly monitored and under your control.

5MP Super Clarity, Day and Night. Thanks to the 5MP resolution (2560x1920), these Wi-Fi cameras capture images and videos with exceptional clarity. Even during nighttime, they provide sharp visibility up to 30 meters using IR LEDs, ensuring worry-free surveillance around the clock.

Stable Connectivity via Dual-Band Wi-Fi. This Wi-Fi camera system operates on both 2.4GHz and 5GHz frequency bands. Without the need for cumbersome wiring, you can connect the Wi-Fi cameras to the NVR and enjoy the convenience of a stable and fast network connection.

Design Your Ultimate Security System.Connect up to 16 IP cameras, choosing from plug-in Wi-Fi, battery-powered Wi-Fi, or PoE options. Cover every corner and customize your security setup to meet your exact needs. Create a tailored security solution that fits your home, store, or factory.

Bundle of

B500W x4 Cameras
1xRLN12W Network Video Recorder

See more product information Report an issue with this product

⚠️ Attention CA Residents: Prop 65 Warning

📈 Tariffs may impact pricing; subject to manufacturer updates.

Specification Sheet
You May Also Like
Your Recently Viewed
Reviews
Q&A

Technical details

Video/Audio Input	IP Video Input: Up to 16 IP cameras Audio Input: Cameras with built-in mic
Video/Audio Output	Video Output: VGA, HDMI Audio Output: 1-channel, RCA
Decoding	Video Compression: H.265/H.264 Synchronous Playback: Up to 4 channels
HDD	SATA: 1 x SATA interface (1 x 2TB HDD included) Capacity: Up to 16TB
External Interface	USB Interface: 2 x USB 2.0 Network Interface: 4 x RJ-45, 10/100 Mbps self-adaptive (for IP cameras); 1 x RJ-45, 10/100 Mbps self-adaptive (for LAN/WAN)
Wi-Fi	Wireless Standard: IEEE 802.11a/ac/ax/b/g/n Operating Frequency: 2.4 GHz/5 GHz Wireless Security: WPA/WPA2/WPA3
Network	Network Protocols: HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP Browser Supported: Edge, Firefox, Chrome, Safari OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
Max. User Access	Max. 20 users (1 admin & 19 users) Max. 12 simultaneous streams (10 substreams & 2 mainstreams)
General	Power Supply: DC 12V/2A Power Consumption: <10W (with 2TB HDD)
Working Environment	Temperature: -10°C ~ +45°C (14°F ~ 113°F) Humidity: 10% ~ 90%
Dimensions	255mm (W) x 49.5mm (H) x 222.7mm (D)
Weight	1.4kg

Video & Audio	Image Sensor: 1/2.7" CMOS Sensor Resolution: 2560 x 1920 (5 megapixels) at20fps Lens: f=4.0 mm fixed; F=2.0, with IR Cut Video Compression: H.264/H.265 Field of View: Horizontal: 80°; Diagonal: 100°; Vertical: 42° Day/Night Mode: Auto-switching Night Vision: Up to 30 meters (100ft); LED: 18 pcs/14mil/850nm Frame Rate: Main stream: 2fps-20fps (Standard: 20fps) Sub stream: 4fps-15fps (Standard: 10fps) Code Rate: Main stream: 1024Kbps-5120Kbps (Standard: 3072Kbps) Sub stream: 64Kbps-512Kbps (Standard: 256Kbps) Audio: Audio recording
Power Requirements	DC Power: DC 12.0V=1A, <12W
Interface	Power Port: DC power port Reset Button: YES Ethernet Port: One 10M/100Mbps; RJ45 Storage: NVR Audio In/Out: Built-in microphone
Wi-Fi	Wireless Standard: IEEE 802.11a/b/g/n Operating Frequency: 2.4GHz/5GHz Wireless Security: WPA-PSK/WPA2-PSK
Software	Browsers Supported: Edge, Chrome, Firefox, Safari OS Supported: PC (Windows, Mac OS); Smartphone (iOS, Android) Protocols & Standards: SSL, TCP/IP, UDP, UPNP, NTP, DHCP, DNS, DDNS User Access: Max. 20 users (1 admin & 19 users); Max. 12 simultaneous streams (2 main & 10 sub streams)
Other Features	Smart Alarm: Motion detection; person detection; vehicle detection; animal detection Recording Modes: Motion-triggered recording (default); scheduled recording, 24/7 recording
Working Environment	Temperature: -10° - +55° (14° - 131°) Humidity: 10% - 90% Weatherproof: IP67
Mechanical	Dimensions: Φ67 x 186mm Weight: 415g
