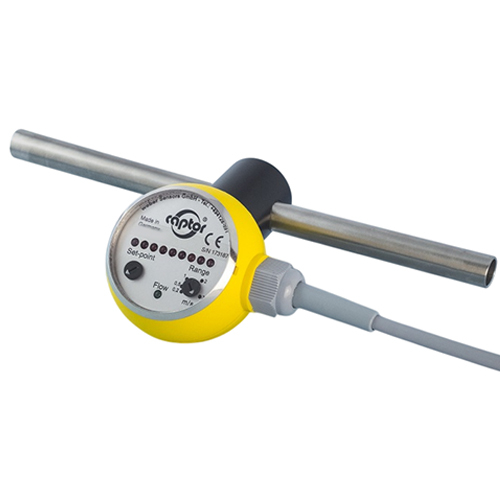

Weber Sensors 4320.13/18 M12 Flow-Captor Flow Switch with Measuring Range 0-20 to 0-300 cm/sec in Water Systems, 316 Stainless Steel Sensor Tube, 18 mm Diameter, with M-12 Socket

Part #:4320.13/18 M12
Model #:Flow-Captor
Condition:Brand New

Weber Sensors 4320.13/18 M12 Flow-Captor Flow Switch with Measuring Range 0-20 to 0-300 cm/sec in Water Systems, 316 Stainless Steel Sensor Tube, 18 mm Diameter, with M-12 Socket

List Price: $1,424.94
$1,325.90 / Each
You Save: 6.95%
Free Shipping

Related Products

Tube Size
18 mm

List Price: $1,424.94
$1,325.90 / Each
You Save: 6.95%
Free Shipping

Typically In Stock

Check Availability

Quantity:

Description

The flow-captor is a flow monitor which is used in automation processes and other industrial applications where liquid media need to be monitored. This series offers "inline-models" that have been specially designed for installation in smaller pipe diameters. The sensor works according to the calorimetric measuring principle. The detection takes place inside the inline tube, whereby the sensor measures the flow velocity of the medium and converts it into an electrical signal.

Features:

For small pipe sizes
Precise switching flow sensor with high accuracy even with slower flows
Separate adjustment of flow range and switching point
Analogue display of flow condition and adjusted switch-point via LED chain
Electronic function without any mechanically moved parts
Robust industrial design (special potting)
ISO 9001:2015
The sensor tube is made of stainless steel 316 and is an integral part of the inline flow-captor

See more product information Report an issue with this product

⚠️ Attention CA Residents: Prop 65 Warning

📈 Tariffs may impact pricing; subject to manufacturer updates.

Specification Sheet
Manuals/Tutorials
You May Also Like
Your Recently Viewed
Reviews
Q&A

Technical details

Medium	water-based
Sensor Data
Measuring range	0 - 20 cm/s to 0 - 300 cm/s, continuously adjustable
Flow volume at 300 cm/s related to tube inner diameter	18 x 1.5 mm; 31.8 l/min
Set-point range	approx. 15 % - 90 % of measuring range setting
Medium temperature	-20 °C to +80 °C
Ambient temperature	-20 °C to +70 °C
Pressure	max. 30 bar (3000 kPa)
Response time	2 sec. to 10 sec. (according to range setting)
Linearity deviation	< 5 %
Repeatability	< 2 %
Hysteresis	ca. 10 %
Temperature drift	< 0.3 % K
Mechanical Data
Protection class	IP 65
Material housing	PBTP, glass fibre reinforced (Ultradur ®)
Material inline tube	stainless steel 316
Torsion between pipe and housing	≤ 10 Nm / ≤ 80 °C
Tube to housing	at higher temperatures no torsion allowed
Pipe sizes OD x wall thickness	18 x 1,5 mm
Electrical connection	Integrated plug connection with M12 coupling, 2 m oilflex cable 3 x 0,5 mm²
Electrical Data
Operating voltage	18 to 30 VDC, incl. residual ripple
Current consumption	max. 150 mA (pulsed)
Power consumption	approx. 1 W
Switching current	≤ 400 mA
Circuit protection	reverse polarity / short circuit / overload
Voltage drop	< 2 V at max. load
State of readiness	approx. 10 sec. after connection of power
Electrical output
Switching condition with flow < switching point	currentless, not switched
LED	off
Switching condition with flow > switching point	energized, switched
LED	green
