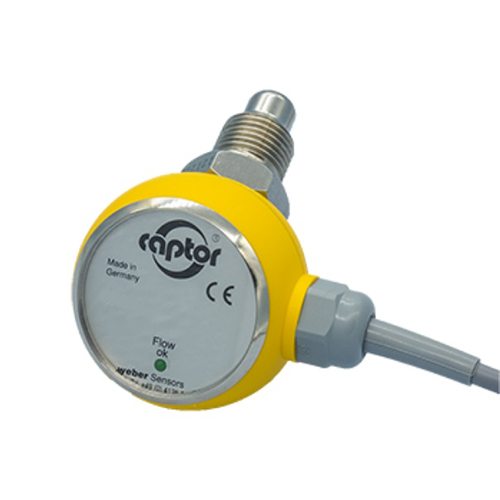

Weber Sensors 4140.13 Flow-Captor Flow Switch Highly Precise Compact Industrial with LED Display for Power and Switching Status
- Part #:4140.13
- Model #:Flow-Captor
- Condition:Brand New
- List Price: $678.81
- $647.30 / EachYou Save: 4.64%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $678.81
- $647.30 / EachYou Save: 4.64%
- Free Shipping
Description
The flow-captor 4140.13 is a highly precise, compact, industrial flow switch. The flow-captor works according to the calorimetric principle which is evaluated by using microprocessor technology.
Features:
- Switch-point factory set
- Simple commissioning
- Reliable and durable for water-based media
- No moving parts
- LED display for power and switching status
- Rugged design
- Maintenance-free
- ISO 9001:2015
⚠️ Attention CA Residents: Prop 65 Warning
- Specification Sheet
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| Medium | water-based |
| Sensor Data | |
| Medium temperature | -20 °C to + 80°C |
| Ambient temperature | -20 °C to +70 °C |
| Pressure | up to 100 bar (10000 KPa) |
| Response time | approx. 5 sec. |
| Repeatability | < 2 % |
| Hysteresis | approx. 10 % |
| Mechanical Data | |
| Protection class | IP 65 |
| Material: Housing | PBTP, glass fibre reinforced (Ultradur®) |
| Sensor pipe | stainless steel AISI 303 |
| Thread | G 1/2" BSP |
| Electrical connection | integrated plug connection with PG9 fitting, 2 m oilflex cable 3 x 0,5 mm |
| Electrical Data | |
| Operating voltage | 18 - 30 VDC incl. residual ripple |
| Current consumption | max. 150 mA pulsed |
| Internal consumption | approx. 1 W |
| Switching current | ≤ 400 mA |
| Protective circuit | reverse polarity, short circuits and overload protection (ready for operation after correcting the short circuit) |
| Operation readiness | appprox. 10 sec. after applying the operating voltage |
| Electrical output | 4140.13 PNP n.o. (closer) currentless |
| Electrical output indication | LED = switch state red / green |
