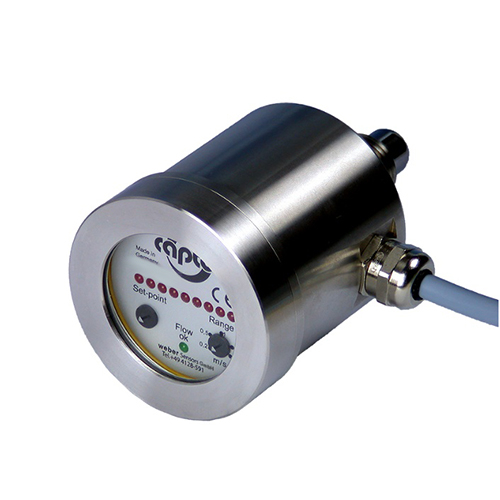

Weber Sensors 4120.52MA S110/67 Flow-Captor Flow Switch with LED Display and Stainless Steel Housing and 67 mm Sensor Head
- Part #:4120.52MA S110/67
- Model #:Flow-Captor
- Condition:Brand New
- List Price: $1,754.06
- $1,745.30 / EachYou Save: 0.5%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $1,754.06
- $1,745.30 / EachYou Save: 0.5%
- Free Shipping
The flow-captor is ideally suited for use in automation processes or other industrial applications where liquid media must be controlled. The sensor operates according to the calorimetric (thermal) measuring principle, fully electronic and without any mechanically moving parts. The flow-captor detects the flow velocity of the medium and converts it into an electrical signal.
Features:
- Precise switching flow monitor with solid state relay output (SSR)
- High switching accuracy even with slower flows
- Separate adjustment of set-point and range
- Display of flow and the adjusted switching point via LED chain
- LED for output status
- Robust stainless steel design (special potting)
- ISO 9001:2015
- Specification Sheet
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Medium | water-based |
| Sensor Data | |
| Measuring range | 0 - 20 cm/s to 0 - 300 cm/s, continuously adjustable |
| Set-point range | approx. 15 % - 90 % of range setting |
| Medium temperature | -20 °C bis +80 °C |
| Ambient temperature | -20 °C bis +70 °C |
| Pressure | max. 100 bar (1000 Kpa) |
| Response time | 2 sec. - 10 sec. depends on range setting |
| Linearity deviation | < 5 % |
| Repeatability | < 2 % |
| Hysteresis | approx. 10 % |
| Temperature drift | < 3 % per kelvin |
| Mechanical Data | |
| Protection class | IP67 |
| Material: Housing | stainless steel AISI 303 or equivalent |
| Material sensor head | stainless steel AISI 316 |
| Thread | Length 67 mm, 1/2" BSP |
| Electrical connection | 2 m oilflex cable 4 x 0.75 mm2 |
| Electrical Data | |
| Operating voltage | 90 - 250 VAC/DC |
| Switching current | max. 100 mA at 90 - 250 VAC/DC |
| Initial operation | approx. 10 sec. after connection power |
| Electrical output | reverse polarity, short circuit and overload |
| Ready to operate | solid state relay (SSR) |
| Flow < set - point | LED on |
