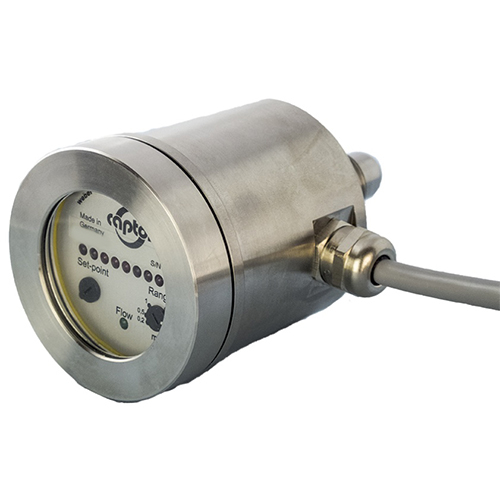

Weber Sensors 4120.41MA S110/90 Flow-Captor Metering Flow Switch with Stainless Steel Housing AISI 316 for Water Based Solutions, 1/2" BSP Thread and Length 90 mm
- Part #:4120.41MA S110/90
- Model #:Flow-Captor
- Condition:Brand New
- List Price: $2,008.38
- $1,998.30 / EachYou Save: 0.5%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $2,008.38
- $1,998.30 / EachYou Save: 0.5%
- Free Shipping
Description
The flow-captor is ideally suited for use in automation processes or other industrial applications where liquid media must be controlled. The sensor operates according to the calorimetric measuring principle, fully electronic and without any mechanically moving parts. The flow-captor detects the flow velocity of the medium and converts it into an electrical signal.
Features:
- Precise switching flow monitor with relay output
- Operating voltage 18 - 30 VDC
- High switching accuracy even with slower flows
- Separate adjustment of set-point and range
- Display of flow and the adjusted switching point via LED chain
- LED for output status
- Robust stainless steel design (special potting)
- ISO 9001:2015
⚠️ Attention CA Residents: Prop 65 Warning
- Specification Sheet
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| Medium | water-based |
| Sensor Data | |
| Measuring range | 0 - 20 cm/s to 0 - 300 cm/s, continuously adjustable |
| Set-point range | approx. 15 % - 90 % of measuring range setting |
| Medium temperature | - 20 °C to + 80 °C |
| Ambient temperature | - 20 °C to + 70 °C |
| Pressure | max. 100 bar (1000 Kpa) |
| Response time | 2 sec. - 10 sec., according to range setting |
| Linearity deviation | < 5 % most favourable straight line related to the final value |
| Repeatability | < 2 % |
| Hysteresis | approx. 10 % |
| Temperature drift | < 3 % per kelvin |
| Mechanical Data | |
| Protection class | IP67 |
| Material: Housing | stainless steel AISI 303 |
| Material sensor head | stainless steel AISI 316 |
| Thread | Length 90 mm, 1/2" BSP |
| Electrical connection | 2 m oilflex cable 6 x 0.5 mm2 |
| Electrical Data | |
| Operating voltage | 18 - 30 VDC |
| Switching current | ≤ 5 A, 120 VAC/ ≤ 3 A, 250 VAC/ ≤ 5 A, 150 W with VDC |
| Initial operation | approx. 10 sec. after connection of power |
| Electrical output | relay with potential free contact |
| Flow < set-point | .40 |
| LED, green | off |
| Output relay | activated |
