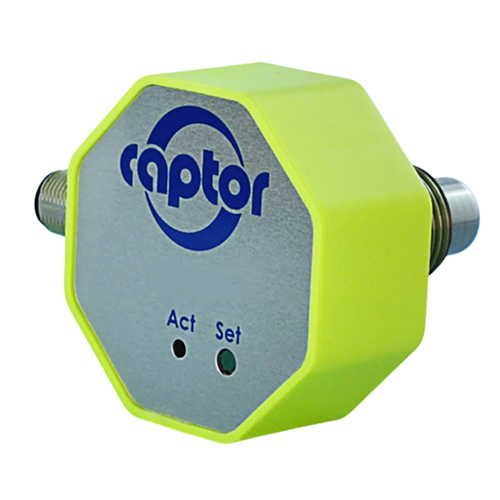

Weber Sensors 4120.30 S110/67 Flow-Captor Flow Meter with 4-20mA and Modbus RTU Outputs, Measuring Range 0-300 cm/sec in Water and Oil Systems, 1/2" NPT, 67 mm
- Part #:4120.30 S110/67
- Model #:Flow-Captor
- Condition:Brand New
- List Price: $1,846.00
- $1,836.80 / EachYou Save: 0.5%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $1,846.00
- $1,836.80 / EachYou Save: 0.5%
- Free Shipping
The i-captor type is ideal for all measurement and control tasks within automation processes and other industrial applications in which liquid media must be controlled. This i-captor works according to a calorimetric measuring principle developed on the basis of modern microprocessor technology; this allows the measuring range to be adapted to a large quantity spectrum.
Features:
- precise flow measuring
- djustable measuring range
- analog current and temperature output 4 - 20 mA
- digital signal transmission via RS-485 Modbus
- encapsulated for vibration resistance
- electronic function without mechanically moved parts
- Made in USA
- Specification Sheet
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Interface | 4 - 20 mA flow and temperature, RS-485 Modbus RTU for all readings |
| Medium | oil or water-based |
| Sensor data | |
| Measuring velocity range | 0 - 300 cm/s (0 -10 ft/sec), auto-ranging |
| Measuring temperature range | 0°C - +100°C / +32°F - +212°F |
| Medium temperature | -20°C - +90°C / -4°F - +175°F |
| Temperature drift | < 0.1 % K |
| Pressure | up to 100 bar (1.450 psi) |
| Response time | max. 5 sec. at normal flow |
| Accuracy | < ±2 % over range |
| Repeatability | < 2 % |
| Mechanical data | |
| Protection class | IP 65 |
| Housing material | PBTP, glassfibre reinforced (Ultradur ®) |
| Sensor head material | stainless steel AISI 303 |
| Sensor thread, Length | 1/2" NPT, 67 mm |
| Electrical connection | 8-pin M12-plug |
| Electrical data | |
| Operating voltage | 24VDC, incl. residual ripple |
| Ambient temperature | -20°C - +70°C / -4°F - +158°F |
| Initial operation | approx. 10 sec. after connection of power |
| Current consumption | max. 250 mA (pulsed) |
| Power consumption | approx. 1 W |
| Circuit protection | reverse polarity, short circuit and overload |
