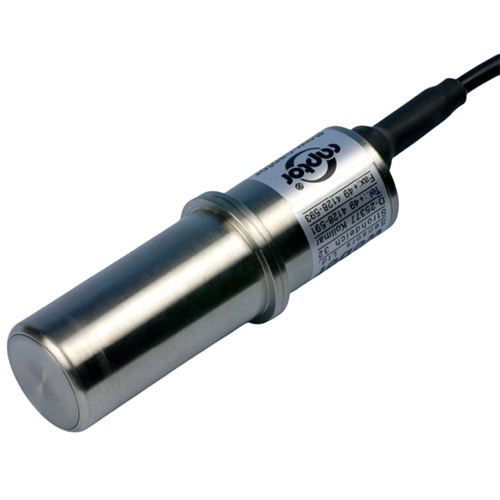

Weber Sensors 4114.30/3 m/s Flow Meter 24 VDC Analog Flow-Captor Measuring Range from 0-20 to 0-300 cm/sec
- Part #:4114.30/3 m/s
- Model #:Flow-Captor
- Condition:Brand New
- List Price: $1,651.21
- $1,530.60 / EachYou Save: 7.3%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $1,651.21
- $1,530.60 / EachYou Save: 7.3%
- Free Shipping
Description
24 VDC Analog flow-captor, Type 4114.30
Features:
- High measuring accuracy even in the lower flow range
- Robust industrial design (fully encapsulated)
- Housing and sensor head in stainless steel
- With 4 - 20 mA current output or 0.1 - 10 V voltage output
- Measuring range from 0-20 to 0-300 cm/sec
- 2-m oilflex cable
- IP65 / DIN 400 50
- stainless steel head with G 1-1/4 A SW 50mm Union Nut
⚠️ Attention CA Residents: Prop 65 Warning
- Specification Sheet
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| Medium | Waterbased media |
| Sensor Data | |
| Measuring range | continuously adjustable from 0 - 20 cm/s to 0 - 300 cm/s, A S101 |
| Set-point range | Zero point and range adjustment by potentiometer |
| Medium temperature | -10°C to +80°C |
| Ambient temperature | -10°C to +60°C |
| Pressure | Max. 30 bar |
| Response time | 2 -10 s depends on measuring conditions |
| Linearity deviation | < 5% best fitting slope |
| Repeatability | < 2% |
| Temperature drift | < 0.3% / K |
| Mechanical Data | |
| Protection class | IP65 |
| Material housing | stainless steel WN 1.4305 / AISI 303 |
| Material of sensor head | stainless steel WN 1.4305 / AISI 303 |
| Mounting accessories | Union nut G 1-1/4 A, SW 50 mm (stainless steel WN 1.4305 / AISI 303) |
| Material of sensor probe | FP (Viton) |
| Electrical connection | 2 m moulded oilflex cable 3 x 0.5 mm2 |
| Dimensions | L = 109.5 mm; B = 32 mm |
| Electrical Data | |
| Operating voltage | 24 VDC ±10% |
| Power consumption | approx. 100 - 200 mA (at max. flow) |
| Current output | 4 - 20 mA |
| Initial operation | approx. 10 s after connection of power |
| Output display | green LED |
| Load | Max. 600Ω |
