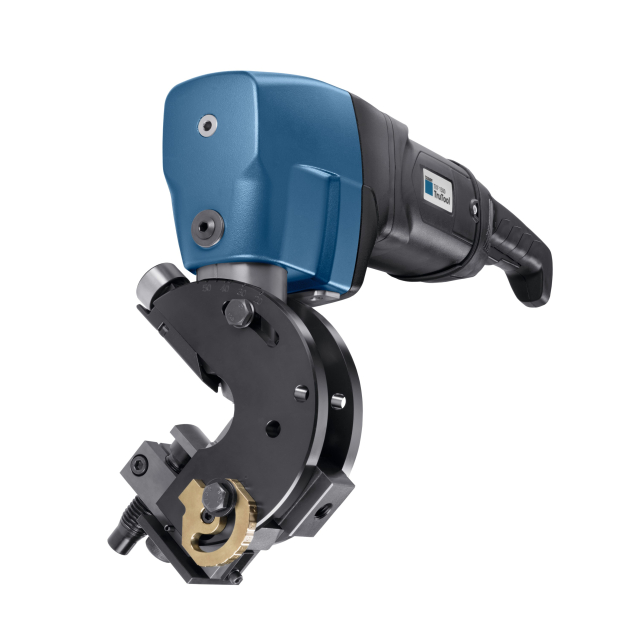

Trumpf 2606423 TruTool TKF 1500 Beveler

Overview

This powerful and precise metalworking tool, the Trumpf 2606423 TruTool TKF 1500 Beveler, is designed for superior beveling performance on various metal materials. It addresses the need for consistent, oxide-free results on straight sheets, T-beams, and tubes, replacing less efficient and less precise beveling methods. The TruTool TKF 1500 is equipped with a 2,600 W motor that delivers continuous operation, while its integrated hand protection and soft grip ensure safe and comfortable use. The adjustable beveling angle, ranging from 20° to 55°, and the low-vibration design guarantee precision and efficiency. This beveler excels at preparing edges for welding, creating chamfers and countersinks, removing burrs, and enhancing the appearance of metal parts. It handles interior cut-outs from a diameter of 130 mm and radii from 55 mm, providing high-quality, repeatable edges with low surface roughness.

Key Features

• Powerful Operation: 2,600 W motor for continuous and efficient performance.
• Precise Beveling: Beveling angle easily adjustable from 20° to 55°.
• Enhanced Safety: Integrated hand protection for increased safety.
• Comfortable Handling: Soft grip design for low-vibration operation.
• Versatile Application: Handles straight sheets, T-beams, tubes, interior cut-outs, and radii.
• High-Quality Results: Produces consistent, oxide-free bevels with low surface roughness.
• Ergonomic Operation: Handle shape, size, and positioning are optimized for safe machine guidance.

Applications

Ideal for beveling various metal materials, processing straight sheets, T-beams, and tubes, and suitable for industrial and manufacturing applications, as well as the automotive and construction industries. This tool is essential for preparing edges for welding, creating chamfers and countersinks, removing burrs and sharp edges, and enhancing the appearance of metal parts.

Specifications

Brand: Trumpf.
Model: TruTool TKF 1500.
Part Number: 2606423.
Power Source: Electric.
Motor Power: 2,600 W.
Beveling Angle: 20° to 55°.
Weight: 12.35 lbs (5.6 kg).

Performance and Characteristics

The TruTool TKF 1500 delivers superior beveling performance with its powerful 2,600 W motor, ensuring consistent, oxide-free results. The adjustable beveling angle and low-vibration design guarantee precision and efficiency, while the integrated hand protection and soft grip ensure safe and comfortable operation. This beveler is designed for versatile use, handling interior cut-outs and radii with ease, and providing high-quality, repeatable edges without rework. The ergonomic handle design enhances machine guidance and supports chamfer quality. The tool-free adjustment of chamfer lengths allows for quick and easy setup, and the stop prism ensures easy run-in to the sheet metal, acting as a chip protector. The high-quality multi-edge cutters and radius multi-edge cutters offer a wide range of materials, with standard multi-edge cutters having four cutting edges and radius multi-edge cutters having three cutting edges. The high-quality stop prism is made of stainless steel to ensure optimal machine guidance and easy run-in to the sheet metal. The machine is designed to produce chamfer lengths of up to 11 mm in one operation, and for chamfer lengths from 11 mm to 15 mm, two steps are required. The electronic overload protection offers yet another notable benefit, protecting the motor against overload.

Kit Contents

• TruTool TKF 1500 Beveler.
• Standard cutting tool.
• Chip box.
• Punching and nibbling oil for steel (17 oz bottle).
• Hexagon-head screws M 10 x 25 - 10.9 DIN 933 (2 units).
• Hexagon-head screw M 10 x 20 - 10.9 DIN 933.
• Tube of grease "S1" (0.88 oz).
• Allen key 6 mm.
• Wrench AL17 DIN 3113.
• Grease gun.
• Tube-shaped handle.
• Handle base.
• Setting gauge.
• Roller holder complete, right.
• Case.

Additional Information

This beveler is designed for professional metalworking, offering powerful performance, precise results, and enhanced safety. Its robust construction, high-quality multi-edge cutters, and versatile applications make it a reliable and efficient tool for demanding industrial environments. The tool's ability to create chamfer lengths up to 11 mm in one operation (15 mm in two) and its compatibility with various materials make it a valuable and versatile tool for professional metalworking.
