Solinst 115458 Submersible Pump Assembly 12V, Assy
- Part #:115458
- Model #:415
- Condition:Brand New
- List Price: $1,379.00
- $1,372.10 / EachYou Save: 0.5%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping
Submersible Pump Assembly 12V
12V Submersible Pump provides an efficient means of purging and obtaining groundwater samples from monitoring wells.

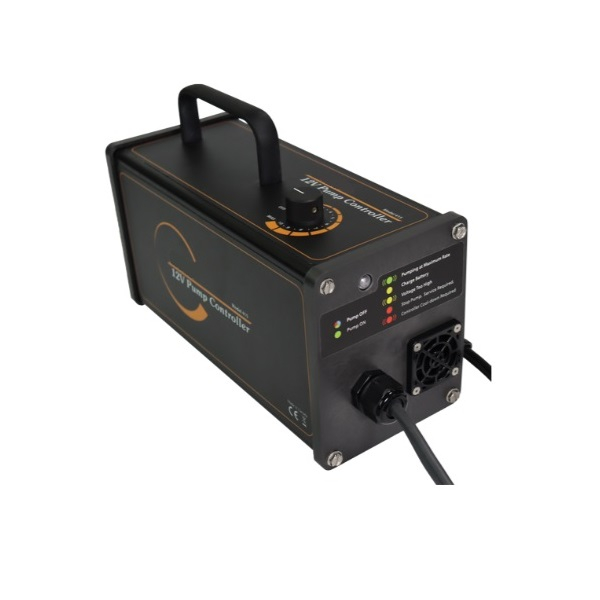

The 12V Submersible Pump and 12V Pump Controller are lightweight, portable, and easy to set up, deploy and operate. There is also the option to dedicate the pump using a specially designed well cap. The Pump's sleek, short design ensures it fits easily down wells without hang-ups.
Features
- Very simple to operate and adjust from high to low flow rates
- Smooth, short (6" nominal) Pump design avoids getting stuck in wells that aren't straight or plumb
- Fits inside Nominal 2" OD Sched.
- Convenient LED light indicates 12V Pump Controller status and Pump operation
- Lightweight, compact, portable system; also a dedicated well cap option for longer term projects
Applications
- High and low-flow groundwater sampling for general chemistry
- High purge rates ideal when sampling using three volume purge protocol
- Useful when performing constant head tests in environments with high K (hydraulic conductivity)
- Specification Sheet
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Sampling Depth | As much as 36.5 m (120 ft) below ground surface |
| Flow Rates | Up to 13.5 L/min (3.6 US gpm) |
| Pump Cable Lengths | 25, 50, 75, 100 and 130 ft (7.5, 15, 23, 30 and 40 m) |
| Pump Cable Weight | 3.5 kg (7.8 lbs) (for 130 ft (40 m) cable length) |
| Wetted Materials | ABS pump body, 304 stainless steel motor, impeller and eyebolt, polypropylene discharge outlet and hose barb, nitrile/buna o-rings and seals, PVC jacket electrical wire |
| Pump Size | 4.78 cm OD x 13.97 cm long (1.88" x 5.5") |
| Pump Weight | 0.8 kg (1.8 lbs) |
| Controller Size | 33 cm x 13 cm x 17 cm (13" x 5" x 6.5") |
| Controller Weight | 3.4 kg (7.5 lbs) |
| Controller Cable Length | 1 m (3.5 ft) |
| Power Source | 12V Deep Cycle 60 amp AGM Battery or larger, or vehicle or marine battery |
| Voltage Required | 12.5V-15V at source |
| Power Draw | 20mA (when dial is OFF), 3A (dial is at 1) to 36A (dial is at MAX (10)) |
| Max. Run Time | Continuous, as long as Pump fully submerged during operation |
| Warranty | 12V Submersible Pump: 90 Days 12V Pump Controller: 3 Years |
