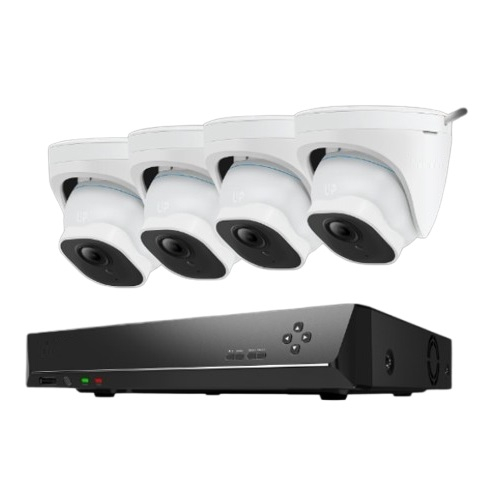

Reolink RLK8-520D4-A Bundle RLK8-520D4-A 5MP Security Kit with White Smart Person/Vehicle Detection Camera

Part #:RLK8-520D4-A Bundle
Model #:RLK8-520D4-A
Condition:Brand New

Check Availability

Quantity:

Description

RLK8-520D4-A 5MP Security Kit with White Smart Person/Vehicle Detection Camera

Person/Vehicle Detection
Power over Ethernet
With 8-Channel NVR
2TB HDD Built-in

Advanced Detection & Alerts. This PoE security camera system is a strong and smart guard. Rugged, waterproof, with keen eyes and ears, and featuring intelligent person/vehicle detection. It only alerts you to true threats. The 4-camera security kit has your back, front, and sides.

More Than 5MP Super HD. Combining 5MP Super HD high resolution, up to 30 frames per second and H.264 video coding technology, the cameras deliver super clear and smooth live streaming. With the built-in microphone, they also pick up ambient sound for an extra layer of security.

Easy Setup with PoE Technology. This dome security camera system features PoE (Power over Ethernet) tech, with only one cable connecting each IP camera to the NVR for both power supply and video signal transmission. A real plug and play security system!

Bundle of

4xRLC-520A Cameras
1xRLN8-410 Network Video Recorder
18m Ethernet cables

See more product information Report an issue with this product

⚠️ Attention CA Residents: Prop 65 Warning

📈 Tariffs may impact pricing; subject to manufacturer updates.

Specification Sheet
You May Also Like
Your Recently Viewed
Reviews
Q&A

Technical details

Hardware	V2
Video/Audio Input	IP Video Input: PoE IP camera x 8 Audio Input: Cameras with built-in mic
Video/Audio Output	Video Output: VGA, HDMI Display Resolution: HDMI: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 VGA: 1920x1080, 1280x1024, 1280x720, 1024x768 Audio Output: 1-channel, RCA
Decoding	Video Format: H.264, H.265 Synchronous Playback: Up to 4 channels
HDD	SATA: 1 x SATA interface (1 x 2TB HDD included) External HDD: 1 eSATA interface for HDD Capacity: Up to 12TB (max. 6TB capacity for each HDD)
External Interface	USB Interface: 2 x USB 2.0 Network Interface: 1, RJ-45-10/100 Mbps self-adaptive Ethernet interface for LAN/WAN 8, RJ-45-10/100 Mbps self-adaptive PoE Ethernet interface for IP camera
PoE	Max. Power Per Port: 25W Supported Standard: IEEE 802.3af/at
Network	Network Protocols: HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP Browsers Supported: Edge, Firefox, Chrome, Safari OS Supported: PC: Windows, Mac OS Smartphone: iOS, Android Max. User Access: 20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General	Power Supply: DC 48V~53V Power Consumption: <10W (without HDD & PoE) Working Environment: Temperature: -10°C~+45°C (14°F~113°F) Humidity: 10%~90% Dimensions: 260 x 41 x 230mm Weight: 1.4kg

Note: The cameras of the kit cannot work without the NVR.
Video & Audio	Image Sensor: 1/2.7" CMOS sensor Video Resolution: Default: 2560 x 1920 (5.0 Megapixels) at 30 frames/sec Lens: f=4.0mm fixed; F=2.0, with IR-cut filter Video Format: H.264 Field of View: Horizontal: 80° Vertical: 42° Day & Night: Auto-switching with IR-cut filter Night Vision: 30 meters (100ft) (LED: 18pcs/14mil/850nm) Audio: Audio recording
Power	PoE: IEEE 802.3af, 48V Active DC Power: DC 12.0V 1A, <12W
Interface	Power: DC power port Ethernet: One 10M/100Mbps; RJ45 Audio: Built-in microphone
System	Reset button
Software Features	Frame Rate: Mainstream: 2fps - 30fps (default: 30fps) Substream: 4fps - 15fps (default: 10fps) Code Rate: Mainstream: 1024Kbps - 8192Kbps (default: 6144Kbps) Substream: 64Kbps - 512Kbps (default: 256Kbps) Smart Alarm: Motion detection, Person detection, Vehicle detection Record Mode: Motion-triggered recording (default); scheduled recording; 24/7 recording
Working Environment	Temperature: Operating temperature: -10°C ~ +55°C (14°F ~ 131°F) Humidity: Operating humidity: 10% ~ 90% Waterproof: IP66
Size & Weight	Dimension: Φ105*95mm Weight: 467.5g
