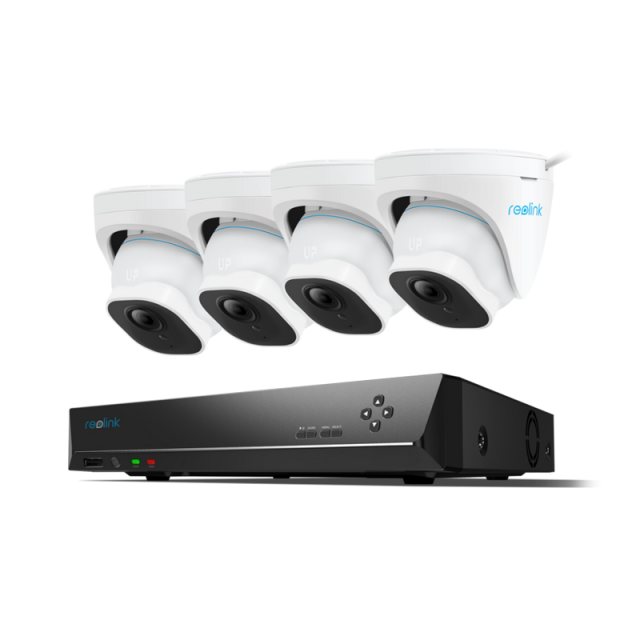

Reolink RLK8-520D4 1 Pack Smart 5MP 8CH Home Security Camera System
- Part #:RLK8-520D4 1 Pack
- Model #:RLK8-520D4
- Condition:Brand New





Equipped with smart motion detection technology, the cameras in the RLK8-520D4 kit can detect moving objects and distinguish people and vehicles from other objects. Alert you immediately when a suspicious person or car appears and filter out false alarms triggered by trivial objects' movements.
Boasting a high resolution of 2560x1920, the 5MP security cameras in the kit capture clear and sharp images. You can get buttery-smooth videos, without any freezing or jerky footage.
To protect your home and business 24 hours a day, this system features 18 infrared LEDs in each camera to capture videos clearly in the dark with a range of up to 100ft.
The system features PoE (Power over Ethernet) technology, allowing you to connect each camera to the NVR with a single cable for both power supply and video signal transmission. A real plug-and-play security system!
With its 2TB hard drive and up to 8TB of storage capacity, the PoE video surveillance kit supports all cameras to allow for simultaneous and continuous recording. Record continuous video, without missing a beat.
Features:
- Power over Ethernet
- With 8-Channel NVR
- 2TB HDD Built-in
- Person/Vehicle Detection
Includes:
- RLN8-410 x1
- D500 x4
- NVR Power Adapter x1
- HDMI Cable x1
- USB Mouse x1
- 1m Network Cable x1
- 18m Network Cable x4
- Quick Start Guide x1
- Mounting Template x5
- Surveillance Sticker x4
- Waterproof Lid x4
- Pack of Screws x5
- Wrench x1
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| RLN8-410 | |
| Hardware | V2 |
| IP Video Input | PoE IP Camera x 8 |
| Audio Input | Cameras with built-in mic |
| Video Output | VGA, HDMI |
| HDMI Output Resolution | 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768 |
| VGA Output Resolution | 1920x1080, 1280x1024, 1280x720, 1024x768 |
| Audio output | 1-Channel, RCA |
| Video Format | H.264, H.265 |
| Live View / Playback Resolution | 4096x3072, 3840x2160, 2560x1920, 2560x1440, 2048x1536, 2304x1296, 1080p, 720p |
| Synchronous Playback | Up to 4 channels |
| SATA | 1 x SATA interface (1 x 2TB HDD included) |
| External HDD | 1 eSATA Interface for HDD |
| Capacity | Up to 12TB (max. 6TB capacity for each HDD) |
| USB Interface | 2 x USB 2.0 |
| Network Interface | 1, RJ-45 10/100 Mbps self-adaptive Ethernet interface for LAN/WAN; 8, RJ-45 10/100 Mbps self-adaptive PoE Ethernet interface for IP camera |
| Max. Power Per Port | 25W |
| Supported Standard | IEEE 802.3af/at |
| Network Protocols | HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP |
| Browsers Supported | Edge, Firefox, Chrome, Safari |
| OS Supported | PC: Windows, Mac OS; smartphone: iOS, Android |
| Max. User Access | 20 users (1 admin account & 19 user accounts); supports up to 12 simultaneous video streams (10 substreams & 2 mainstreams) |
| Power Supply | DC 48V~53V |
| Power Consumption | <10W (Without HDD&PoE) |
| Working Environment | Temperature: -10°C~+45°C (14°F~113°F); humidity: 10%~90% |
| Dimensions | 260 x 41 x 230mm |
| Weight | 1.4kg |
| D500 | |
| Note | The cameras of the kit cannot work without the NVR |
| Image Sensor | 1/2.7" CMOS Sensor |
| Video Resolution | 2560x1920 (5.0 Megapixels) at 30 frames/sec |
| Lens | f=4.0mm fixed; F=2.0, with IR-cut filter |
| Video Format | H.264 |
| Field of View | Horizontal: 80°; Vertical: 42° |
| Day & Nigh | Auto-switching with IR-cut filter |
| Night Vision | 30 meters (100ft) (LED: 18pcs/14mil/850nm) |
| Audio | Audio recording |
| PoE | IEEE 802.3af, 48V Active |
| DC Power | DC 12.0V=1A, <12W |
| Power | DC power port |
| System | Reset button |
| Ethernet | One 10M/100Mbps; RJ45 |
| Audio | Built-in microphone |
| Frame Rate | Mainstream: 2fps - 30fps (default: 30fps); Substream: 4fps - 15fps (default: 10fps) |
| Code Rate | Mainstream: 1024Kbps - 8192Kbps (default: 6144Kbps); Substream: 64Kbps - 512Kbps (default: 160Kbps) |
| Smart Alarm | Motion detection; person detection; vehicle detection |
| Record Mode | Motion-triggered recording; scheduled recording; 24/7 recording |
| Temperature | Operating temperature: -10°C - +55°C (14°F - 131°F) |
| Humidity | Operating humidity: 10% - 90% |
| Waterproof | IP66 |
| Dimension | Φ105*93mm |
| Weight | 480g |
