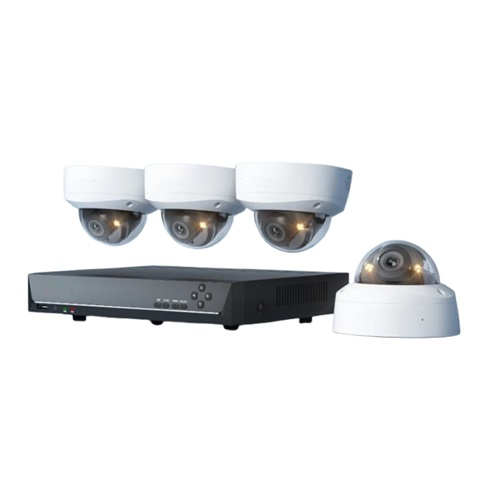

Reolink RLK8-500V4 RLK8-500V4 Smart 5MP IK10 Power Over Ethernet (PoE) Surveillance System with Smart Detection

  • Part #:RLK8-500V4
  • Model #:RLK8-500V4
  • Condition:Brand New
0
Reviews Write a Review Questions & Answers
Reolink RLK8-500V4 RLK8-500V4 Smart 5MP IK10 Power Over Ethernet (PoE) Surveillance System with Smart Detection
  • $450.11 / Kit
  • Free Shipping logoFree Shipping
  • $450.11 / Kit
  • Free Shipping logoFree Shipping
Typically In Stock
Check Availability
Quantity:
Description
See more product information Report an issue with this product
⚠️ Attention CA Residents: Prop 65 Warning
Technical details
Video & Audio
  • Image Sensor: 1/2.7" CMOS sensor
  • Resolution: 2560x1920 (5 Megapixels) at25FPS
  • Lens: f=2.8mm F=2.0
  • Video Compression: H.265/H.264
  • Field of View:
    • Horizontal: 100°
    • Vertical: 75°
    • Diagonal: 130°
  • Infrared Night Vision: Up to 30 meters (100ft); LED: 2pcs/2W/850nm (auto-switching with IR-cut filter)
  • Color Night Vision: With spotlights: 2pcs/3W/3000K (adjustable)
  • Frame Rate:
    • Main stream: 2fps - 25fps (default: 25fps)
    • Sub stream: 4fps - 15fps (default: 10fps)
  • Code Rate:
    • Main stream: 1024Kbps - 8192Kbps (default: 6144Kbps)
    • Sub stream: 64Kbps - 512Kbps (default: 256Kbps)
  • Audio: Two-way audio
Power Requirements
  • PoE: IEEE 802.3af, 48V, active
  • DC Power: DC 12.0V=1A, <12W
Interface
  • Power Port: DC power port
  • Ethernet Port: One 10M/100Mbps; RJ45
  • Reset Button: YES
  • Audio In/Out: Built-in microphone and speaker
Other Features
  • Smart Alarm: Motion detection; person detection; vehicle detection; animal detection
  • Recording Modes: Motion-triggered recording (default); scheduled recording; 24/7 recording
Working Environment
  • Operating Temperature: -10°C to 55°C (14°F to 131°F)
  • Operating Humidity: 10% to 90%
  • Weatherproof: IP67
Mechanical
  • Dimensions: Φ117 x 86mm
  • Weight: 570g
Hardware
  • N7MB01
Video/Audio Input
  • IP Video Input: PoE IP camera x 8
  • Audio Input: Cameras with built-in mic
Video/Audio Output
  • HDMI Output Resolution: 3840x2160, 1920x1080, 1280x1024, 1280x720, 1024x768
  • VGA Output Resolution: 1920x1080, 1280x1024, 1280x720, 1024x768
  • Audio Output: 1-channel, RCA
Decoding
  • Video Format: H.264, H.265
  • Synchronous Playback: Up to 4 channels
HDD
  • SATA: 1 x SATA interface (1 x 2TB HDD included)
  • External HDD: 1 eSATA interface for HDD
  • Capacity: Up to 16TB (max. 6TB capacity for each HDD)
External Interface
  • USB Interface: 2 x USB 2.0
  • Network Interface:
    • 1, RJ-45-10/100/1000 Mbps self-adaptive Ethernet interface for LAN/WAN
    • 8, RJ-45-10/100 Mbps self-adaptive PoE Ethernet interface for IP camera
PoE
  • Max. Power Per Port: 25W
  • Supported Standard: IEEE 802.3af/at
Network
  • Network Protocols: HTTP, TCP/IP, UDP, DHCP, P2P, UPNP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP
  • Browsers Supported: Edge, Firefox, Chrome, Safari
  • OS Supported: PC: Windows, Mac OS; smartphone: iOS, Android
  • Max. User Access: 20 users (1 admin account & 19 user accounts); up to 12 simultaneous video streams (10 substreams & 2 mainstreams)
General
  • Power Supply: DC 48V~53V
  • Power Consumption: <10W (without HDD & PoE)
  • Working Environment:
    • Temperature: -10°C~+45°C (14°F~113°F)
    • Humidity: 10%~90%
  • Dimensions: 260 x 41 x 230mm
  • Weight: 1.4kg
