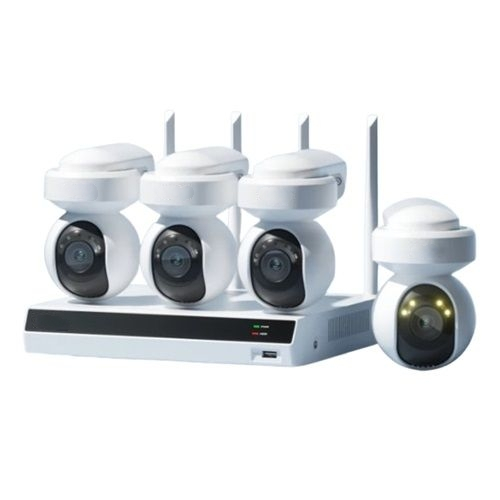

Reolink RLK12-800WPT4 1-Pack RLK12-800WPT4 4K Wi-Fi 6 Pan-Tilt Surveillance System for 24/7 All-Round Protection

Part #:RLK12-800WPT4 1-Pack
Model #:RLK12-800WPT4
Condition:Brand New

Check Availability

Quantity:

Description

RLK12-800WPT4 4K Wi-Fi 6 Pan-Tilt Surveillance System for 24/7 All-Round Protection

4K 8MP Ultra HD & Auto Tracking
Person/Vehicle/Animal Detection
2.4/5 GHz Dual-Band Wi-Fi
16-Channel NVR with 2TB HDD

Your Personal Security Center. Enjoy all-around surveillance and round-the-clock recording with this Wi-Fi 6 security system. It offers a convenient solution for centrally managing all your cameras and keeping an eye on your property, all at your fingertips.

Redefining Flexibility, Monitoring Everywhere. Offering unmatched flexibility, cameras in this system are capable of not only tilting but also horizontally rotating 355°, leaving nocorner unchecked. When detecting movement, be it people, vehicles, or animals, they will seamlessly track them, providing automatic monitoring. By setting up to 64 preset points, you'll experience swift surveillance of critical areas.

Relive Day and Night with 4K Clarity. Explore new heights of sharpness with 4K ultra-high definition. With a large F1.6 aperture lens, every nighttime detail is clearly captured. Activate the spotlights to illuminate the vibrant colors of the night, ensuring each moment, day or night, is captured in breathtaking clarity.

Your System, Your ChoiceExpand your system with up to 16 IP cameras-whether plug-in Wi-Fi, battery-powered Wi-Fi, or PoE. Secure every inch of your home, store, or factory, and enjoy the creative freedom to design a security system that suits your unique needs.

Bundle of

E1 Outdoor S x4 Cameras
1xRLN12W White Network Video Recorder

See more product information Report an issue with this product

⚠️ Attention CA Residents: Prop 65 Warning

📈 Tariffs may impact pricing; subject to manufacturer updates.

Specification Sheet
You May Also Like
Your Recently Viewed
Reviews
Q&A

Technical details

Video/Audio Input	IP Video Input: Up to 16 IP cameras Audio Input: Cameras with built-in mic
Video/Audio Output	Video Output: VGA, HDMI Audio Output: 1-channel, RCA
Decoding	Video Compression: H.265/H.264 Synchronous Playback: Up to 4 channels
HDD	SATA: 1 x SATA interface (1 x 2TB HDD included) Capacity: Up to 16TB
External Interface	USB Interface: 2 x USB 2.0 Network Interface: 4 x RJ-45, 10/100 Mbps self-adaptive (for IP cameras); 1 x RJ-45, 10/100 Mbps self-adaptive (for LAN/WAN)
Wi-Fi	Wireless Standard: IEEE 802.11a/ac/ax/b/g/n Operating Frequency: 2.4 GHz/5 GHz Wireless Security: WPA/WPA2/WPA3
Network	Network Protocols: HTTPS, TCP/IP, UDP, DHCP, P2P, UPNP, RTMP, RTSP, SMTP, SSL/TLS, DNS, DDNS, NTP, FTP Browser Supported: Edge, Firefox, Chrome, Safari OS Supported: PC: Windows, Mac OS; Smartphone: iOS, Android
Max. User Access	Max. 20 users (1 admin & 19 users) Max. 12 simultaneous streams (10 substreams & 2 mainstreams)
General	Power Supply: DC 12V/2A Power Consumption: <10W (with 2TB HDD)
Working Environment	Temperature: -10°C ~ +45°C (14°F ~ 113°F) Humidity: 10% ~ 90%
Dimensions	255mm (W) x 49.5mm (H) x 222.7mm (D)
Weight	1.4kg

Video & Audio	Image Sensor: 1/2.7" CMOS sensor Resolution: 3840x2160 (8 megapixels) at20fps Lens: f=4.0mm fixed, F=1.6 Video Compression: H.264/H.265 Field of View: Horizontal: 88° Vertical: 45° Infrared Night Vision: Up to 12 meters; LED: 10pcs/MAX 1.4W/850nm (Auto-switching with IR-cut filter) Color Night Vision: With spotlights: 4pcs/3.3W/3000K Frame Rate: Main stream: 2fps - 20fps (default: 20fps) Sub stream: 4fps - 15fps (default: 10fps) Code Rate: Main stream: 2048Kbps - 5120Kbps (default: 4096Kbps) Sub stream: 64Kbps - 512Kbps (default: 256Kbps) Audio: Two-way audio
Power Requirements	DC Power: DC 12.0V=1A, <12W
Interface	Power Port: DC power port Ethernet Port: One 10M/100Mbps; RJ45 Reset Button: YES Audio In/Out: Built-in microphone and speaker
Wi-Fi	Wireless Standard: IEEE 802.11 ac/ax/a/b/g/n Operating Frequency: 2.4GHz/5GHz Wireless Security: WPA-PSK/WPA2-PSK/WPA3-SAE
Pan & Tilt	PT Angle(Max.): Pan: 355° Tilt: 50° Preset Points: Supports 1 guard position & up to 64 preset positions Power-off Memory Function: YES Auto Tracking: YES
Software	OS Supported: PC (Windows, Mac OS); Smartphone (iOS, Android) Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, SMTP, NTP, DHCP, DNS, DDNS
Other Features	Smart Alarm: Motion detection; person detection; vehicle detection; animal detection Recording Modes: Motion-triggered recording (default); Scheduled recording, 24/7 recording Time Lapse: YES
Working Environment	Operating Temperature: -10°C~55°C (14°F~131°F) Operating Humidity: 20% ~ 85% Weatherproof: IP65
Mechanical	Dimensions: Φ90*120mm Weight (Battery Included): 446g
