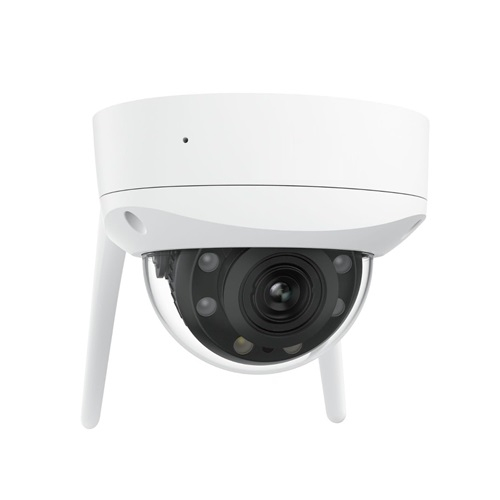

Reolink RLC-843WA 1-Pack (White, Wi-Fi 6) RLC-843WA 4K IK10 Vandal-Proof Wi-Fi 6 Security Camera with 5X Optical Zoom

  • Part #:RLC-843WA 1-Pack (White, Wi-Fi 6)
  • Model #:RLC-843WA
  • Condition:Brand New
0
Reviews Write a Review Questions & Answers
Reolink RLC-843WA 1-Pack (White, Wi-Fi 6) RLC-843WA 4K IK10 Vandal-Proof Wi-Fi 6 Security Camera with 5X Optical Zoom
Discontinued
Quantity:
Description
See more product information Report an issue with this product
⚠️ Attention CA Residents: Prop 65 Warning
Technical details
Video & Audio
  • Image Sensor: 1/2.8" CMOS sensor
  • Resolution: 3840 x 2160 (8 megapixels) at20fps
  • Lens: f=2.7-13.5mm, Max: F1.6
  • Video Compression: H.265
  • Zoom: 5X optical zoom
  • Field of View:
    • Horizontal: 100°-31°
    • Vertical: 55°-17°
    • Diagonal: 123°-39°
  • Infrared Night Vision: Up to 30 meters (100ft); LED: 4pcs/2.8W/850nm (Auto-switching with IR-cut filter)
  • Color Night Vision: With spotlights: 2pcs/3.2W/6000K
  • Frame Rate:
    • Main Stream: 2fps - 20fps (default: 15fps)
    • Sub Stream: 4fps - 15fps (default: 10fps)
  • Code Rate:
    • Main Stream: 1024Kbps - 6144Kbps (default: 4096Kbps)
    • Sub Stream: 64Kbps - 512Kbps (default: 256Kbps)
  • Audio: Two-way audio
Power Requirements
  • DC Power: DC 12.0V=1A, <12W
Interface
  • Power Port: DC power port
  • Ethernet Port: One 10M/100Mbps; RJ45
  • SD Card Slot: Supports Max. 256GB microSD card
  • Reset Button: YES
  • Audio In/Out: Built-in microphone and speaker
Wi-Fi
  • Wireless Standard: IEEE 802.11 a/ac/b/g/n
  • Operating Frequency: 2.4GHz/5GHz
  • Wireless Security: WPA/WPA2
Software
  • Browsers Supported: Edge, Chrome, Firefox, Safari
  • OS Supported:
    • PC: Windows, Mac OS
    • Smartphone: iOS, Android
  • Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
  • User Access: Max. 20 users (1 admin & 19 user); Max. 12 simultaneous streams (2 main & 10 sub streams)
Other Features
  • Smart Alarm: Motion detection; person detection; vehicle detection; animal detection
  • Recording Modes: Motion-triggered recording (default); Scheduled recording, 24/7 recording
  • Time Lapse: YES
  • Smart Home Compatibility: Google Assistant
Working Environment
  • Operating Temperature: -10°C~+55°C (14°F~131°F)
  • Operating Humidity: 10% ~ 90%
  • Weatherproof: IP67
Mechanical
  • Dimensions: Φ132.7 x 98.3mm
