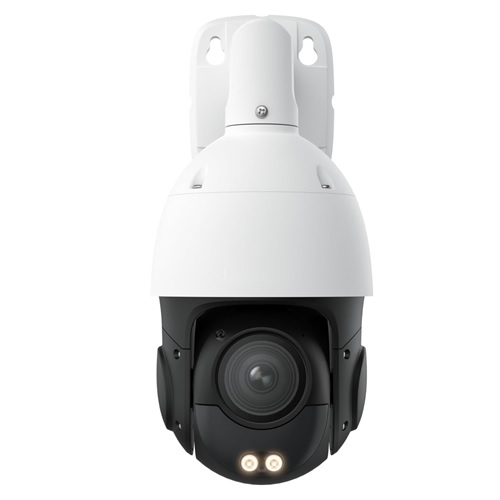

Reolink RLC-823S2 1-Pack RLC-823S2 Smart 4K Pan & Tilt Power Over Ethernet (PoE) Security Camera with 16X Optical Zoom

  • Part #:RLC-823S2 1-Pack
  • Model #:RLC-823S1
  • Condition:Brand New
0
Reviews Write a Review Questions & Answers
Reolink RLC-823S2 1-Pack RLC-823S2 Smart 4K Pan & Tilt Power Over Ethernet (PoE) Security Camera with 16X Optical Zoom
  • $329.99 / Each
  • Free Shipping logoFree Shipping
  • $329.99 / Each
  • Free Shipping logoFree Shipping
Typically In Stock
Check Availability
Quantity:
Description
See more product information Report an issue with this product
⚠️ Attention CA Residents: Prop 65 Warning
Technical details
Video & Audio
  • Image Sensor: 1/2.8" CMOS sensor
  • Resolution: 3840x2160 (8 Megapixels) at25FPS
  • Lens: f=5.3-86mm/Max F1.6
  • Video Compression: H.265/H.264
  • Zoom: 16X
  • Field of View:
    • Horizontal: 54.2°-3.6°
    • Vertical: 41.7°-2.1°
  • Infrared Night Vision: Up to 80 meters (260ft); LED: 7pcs/Max 5.5W/850nm (Auto-switching with IR-cut filter)
  • Color Night Vision: With spotlights: 2pcs/4w/4000K (Adjustable)
  • Frame Rate:
    • Mainstream: 2fps - 25fps (default: 25fps)
    • Substream: 4fps - 15fps (default: 10fps)
  • Code Rate:
    • Mainstream: 2048Kbps - 8192Kbps (default: 6144Kbps)
    • Substream: 64Kbps - 512Kbps (default: 256Kbps)
  • Audio: Two-way audio
Power
  • PoE: IEEE 802.3at, 48V, active
  • DC Power: DC 12V=2A, <24W
Interface
  • Power Port: DC power port
  • Ethernet Port: One 10M/100Mbps; RJ45
  • SD Card Slot: Supports Max. 256GB microSD card
  • Reset Button: YES
  • Audio In/Out: Built-in microphone and speaker
Pan & Tilt
  • Pan Angle (Max.): Pan: 360°, Tilt: 90°
  • Pan Speed: 1.4°-90°/s (configurable)
  • Tilt Speed: 1.4°-56°/s (configurable)
  • Preset Points: Supports 1 guard position & up to 64 preset positions
  • Patrol: Supports 1 patrol; up to 16 presets per patrol
  • Power-off Memory Function: YES
  • Auto Tracking: YES
Software
  • Browsers Supported: Edge, Chrome, Firefox, Safari
  • OS Supported:
    • PC: Windows, Mac OS
    • Smartphone: iOS, Android
  • Protocols & Standards: HTTPS, SSL, TCP/IP, UDP, HTTP, IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P
  • User Access: Max. 20 users (1 admin & 19 users); Max. 12 simultaneous streams (2 main & 10 substreams)
Other Features
  • Smart Alarm: Motion detection; Person detection; Vehicle detection; Animal detection
  • Time Lapse: YES
  • Smart Home Compatibility: Google Assistant
Recording Modes
  • Motion-triggered recording (default); Scheduled recording, 24/7 recording
Working Environment
  • Operating Temperature: -10°C~+50°C (14°F~126°F)
  • Operating Humidity: 10% ~ 90%
  • Weatherproof: IP66
Mechanical
  • Dimensions: 373x177x140mm (Ceiling Mount)
  • Weight: 2.34kg
