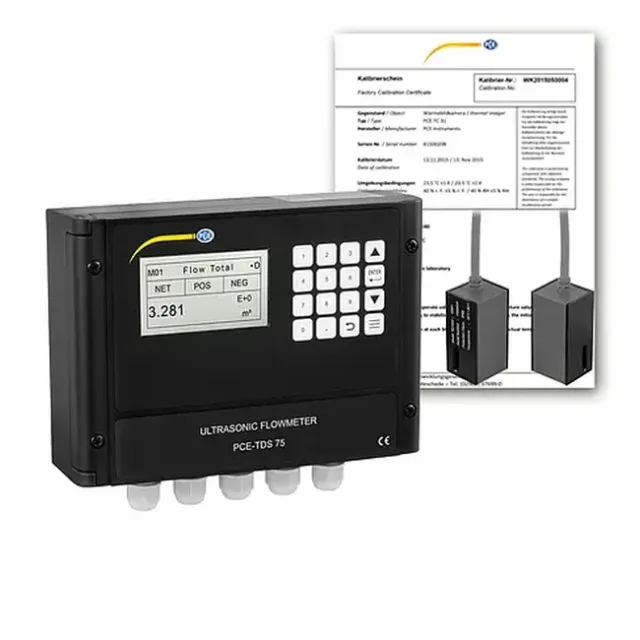

PCE Instruments PCE-TDS 75-ICA Ultrasonic Flow Meter, 25 to 1200 mm incl. ISO Calibration Certificate
- Part #:PCE-TDS 75-ICA
- Condition:Brand New
- List Price: $2,600.00
- $2,497.50 / KitYou Save: 3.94%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $2,600.00
- $2,497.50 / KitYou Save: 3.94%
- Free Shipping
Ultrasonic Flow Meter PCE-TDS 75Flow meter for fixed installation / Various process connection options / Measurement accuracy of 1% / Up to a pipe diameter of 1200 mm (47.2 in) / Flow rate determination
The flow measuring device is a measuring device for fixed installation. The flow rate of liquids in pipes can be determined with this flow meter. The sensors from the flow meter can be mounted directly on the pipes to be measured without having to cut them open. This enables the flow meter to be installed even during operation.
Another special feature of the flow meter are the different outputs. It is possible to get the flow rate converted by the flow meter into an analog 4… 20-mA signal. Any other measurement value can be transmitted via the pulse output (OCT) from the flow meter. It is also possible to receive the measured values directly via the Modbus outputs RS232 and RS485. This allows the flow meter to be integrated directly into the process control.
Features:
- Flow meter for fixed installation
- Different outputs for process connection
- For fixed installation
- For pipe diameters 25 ... 1200 mm / 1 in ... 47.2 in
Includes:
- 1 x Ultrasonic flow meter PCE-TDS 75
- 2 x Flow sensors
- 1 x Wall mounting set
- 2 x Hose clamps
- 1 x Instruction manual
- 1 x ISO Calibration Certificate
- Specification Sheet
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Measuring range | ± 0.03 ... ± 5 m / s (± 0.09 ... ± 16 ft / s) |
| Measurement accuracy | ± 1% of the measured value |
| Repeatability | 0.2% |
| Pipe diameter | 25 ... 1200 mm (1 ... 48 in) |
| Analog output | 0/4 ... 20 mA (maximum load 750 Ω) |
| Pulse output | 0 ... 9999 Hz OCT |
| (Frequency limits are adjustable) | |
| Relay output | 1 A at 125V AC, 2 A at 30V DC |
| Maximum frequency 1 Hz | |
| Communication interface | RS232 & RS485 |
| Power supply | 10 ... 36V DC |
| Power consumption | 1 A |
| Display | LCD, 256 x 128 pixels, with backlight |
| Ambient conditions base | -40 ... 60°C / -40 ... 140°F 0 ... 99% RH non-condensing |
| Ambient conditions sensor | -40 ... 80°C / -40 ... 176° F 0 ... 99% RH non-condensing |
| Housing material base | PC / ABS |
| Protection class base | IP 65 |
| Protection class sensor | IP 68 |
| Cable length | 9 m / 30 ft |
| Dimensions | 16 x 23 x 28 cm / 6.3 x 9.1 x 11" |
| Weight | 3.2 kg / 7.1 lbs |
