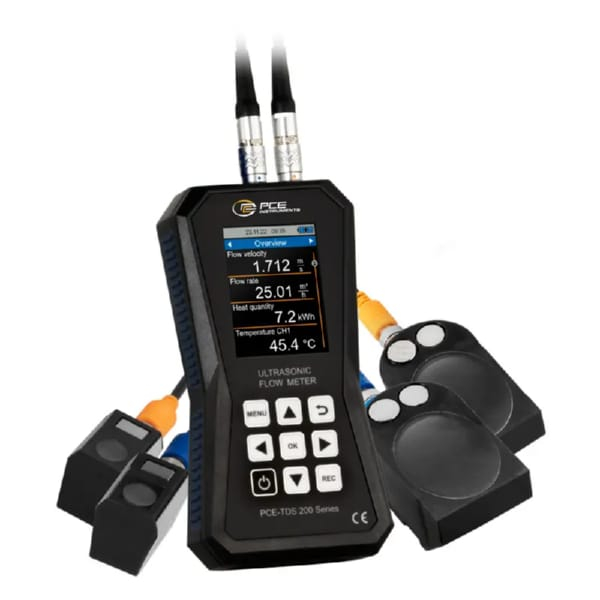

PCE Instruments PCE-TDS 200 SL Ultrasonic Flowmeter with Measuring Range +/-32 m/s

Overview

This robust **PCE Instruments PCE-TDS 200 SL Ultrasonic Flowmeter** is engineered for highly accurate, non-invasive fluid flow measurement across a vast range of pipe diameters, from small to exceptionally large, and various media. It addresses the critical need for precise flow rate monitoring without interrupting operations or damaging pipes, making it an ideal solution for professionals requiring on-site, real-time data for diverse applications.

The PCE-TDS 200 SL offers exceptional accuracy and reproducibility, enhancing operational efficiency and ensuring compliance in industrial, commercial, and municipal sectors. Its comprehensive 32 GB internal data memory allows for extensive data logging and analysis. This device provides a sophisticated yet user-friendly alternative to traditional, invasive measurement methods, preventing costly downtime, and its versatility is further boosted by the inclusion of both small (S) and large (L) sensor pairs, ensuring adaptability to an extensive array of pipe sizes.

Key Features

• Wide Measuring Range: Accurately measures flow velocities from ±0.01 m/s up to ±32 m/s.
• High Data Storage Capacity: Features a massive 32 GB built-in memory, capable of storing up to 10 million measuring points.
• Precise Reproducibility: Ensures consistent and reliable measurements with a reproducibility of ±0.5% of the measured value.
• Versatile Sensor Compatibility: Includes both Small (S) and Large (L) sensor pairs, accommodating pipe diameters from DN 15 to DN 6000.
• User-Friendly Interface & Setup: Equipped with a 2.8" LC color display and an intuitive installation aid for optimal signal quality.

Specifications

Part Number: PCE-TDS 200 SL

Product Type: Ultrasonic Flowmeter

Measuring Range: ±32 m/s

Accuracy (DN ≥50): ±1.5 % f.s.

Accuracy (DN <50): ±3.5 % f.s.

Reproducibility: ±0.5 % f.s.

Data Memory: 32 GB (up to 10 million measuring points)

Display: 2.8" LC color display

Adjustable Storage Interval: 1 second to 12 hours

Interface: USB-C

Sensor Type (S Sensor Pair): For pipe diameters DN 15 ... 100 / 20 ... 108 mm

Sensor Type (L Sensor Pair): For pipe diameters DN 300 ... 6000 mm

Sensor Temperature Resistance (S Sensor): -30 ... 160 °C

Sensor Mounting: Built-in magnets (for ferrous pipes) or detachable cable ties

Measurement Units: m³, l, gal, igl, mgl, cf, bal, ib, ob, and more

Heat Quantity Measurement: N/A (Feature present, but details for direct measurement without additional sensors not specified)

Applications

Ideal for **facility managers, hydrologists, HVAC technicians, process engineers, and environmental consultants** needing to monitor liquid flow across an extremely wide range of pipe sizes without cutting into pipes. This **ultrasonic flowmeter** is perfect for applications such as validating pump performance in small lines, identifying leaks in large distribution networks, conducting energy audits for heating/cooling systems, or ensuring precise flow rates in diverse industrial processes. Its non-invasive nature and broad sensor compatibility make it indispensable for temporary measurements, troubleshooting, and verifying existing inline flow meters across various industries, including water utilities, chemical processing, building management, and power generation.

Performance and Characteristics

The **PCE-TDS 200 SL** delivers high-precision, non-intrusive flow measurement through advanced ultrasonic technology. Its inclusion of both small (S) and large (L) sensor pairs ensures unparalleled adaptability across an extensive range of pipe diameters, from DN 15 up to DN 6000, catering to virtually any application. The integrated installation aid visually guides sensor placement, guaranteeing optimal signal quality for accurate readings. With a rapid measuring range of ±32 m/s and a high reproducibility of ±0.5% f.s., this device provides reliable data crucial for critical operational decisions. Its robust data logging capabilities, including configurable start/stop conditions and storage intervals, coupled with optional software for tabular and graphic analysis, allow for comprehensive long-term monitoring and reporting in .csv or PDF formats. The vivid 2.8" LC color display ensures clear readability of all measured values, making on-site diagnostics efficient and effective.

Kit Contents

• 1 x Ultrasonic flow meter PCE-TDS 200 SL
• 1 x Flow sensors PCE-TDS 200 S SENSOR (pair)
• 1 x Flow sensors PCE-TDS 200 L SENSOR (pair)
• 2 x 5 m connection cable
• 2 x Detachable cable ties
• 1 x Power supply unit
• 1 x USB-C cable
• 1 x Ultrasonic contact gel
• 1 x PCE measuring tape
• 1 x Plastic case
• 1 x Instruction manual
