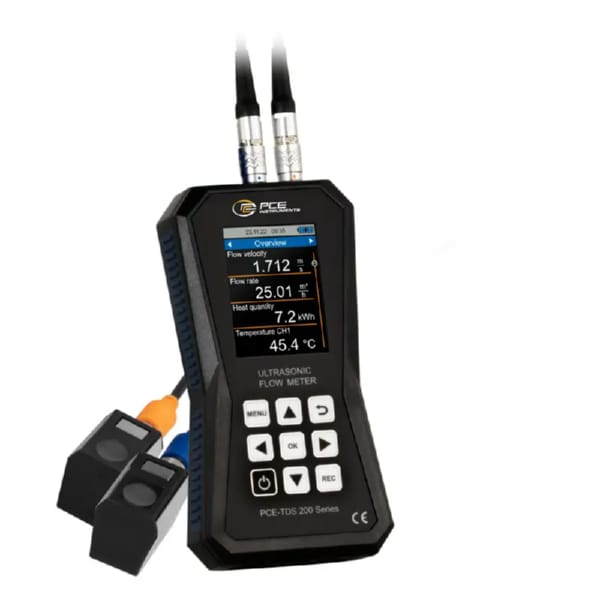

PCE Instruments PCE-TDS 200 S Ultrasonic Flowmeter

Overview

The PCE Instruments PCE-TDS 200 S Ultrasonic Flowmeter is a precise and versatile instrument designed for professional fluid flow measurement in a variety of applications, particularly those involving smaller pipes. This portable ultrasonic flow meter features a wide measuring range of ±32 m/s, high accuracy, and a large 32 GB data memory, making it suitable for detailed flow analysis. Capable of measuring flow velocity, volume flow, and volume, and even heat quantity (when equipped with optional thermocouples), the PCE-TDS 200 S offers comprehensive flow data for professionals.

Key Features

• Wide Measuring Range: Measures flow velocity across a range of ±32 m/s, accommodating diverse flow rates.
• High Reproducibility: Offers a reproducibility of ±0.5 % of measured value, ensuring consistent and reliable readings.
• Large Data Memory: Features a built-in 32 GB data logger capable of storing up to 10 million measuring points for extensive data analysis.
• Heat Quantity Measurement: Can determine heat quantity with optional thermocouples, suitable for heating system analysis (available on PCE-TDS 200+).
• User-Friendly Interface: Features a 2.8" LC color display for clear and easy-to-read measurement results.
• Small Sensors (S SENSOR): Includes small sensors specifically designed for accurate measurement on smaller pipe diameters.

Specifications

• Brand: PCE Instruments
• Model: PCE-TDS 200 S
• Measuring Range: ±32 m/s
• Accuracy:
  • ±1.5 % f.s. (DN ≥50)
  • ±3.5 % f.s. (DN <50)
• Reproducibility: ±0.5 % of measured value
• Data Memory: 32 GB (10 million measuring points)
• Display: 2.8" LC color display
• Interface: USB-C
• Sensor Type: PCE-TDS 200 S SENSOR (Small)
• Pipe Diameter Range (S SENSOR): DN 15 ... 100 / 20 ... 108 mm
• Sensor Temperature Resistance: -30 ... 160 °C

Applications

Essential for industrial process control, providing accurate flow measurement for optimizing production and resource management, especially in systems with smaller pipes. Valuable for energy audits and heating system analysis (with optional thermocouples), allowing for precise determination of heat consumption and efficiency. Useful in water treatment facilities for monitoring flow rates in pipelines and distribution networks. Applicable in HVAC systems for balancing flow rates and ensuring efficient operation. Ideal for any professional needing precise and non-invasive flow measurement of liquids in smaller pipe systems.

Performance and Characteristics

The PCE-TDS 200 S ultrasonic flowmeter delivers highly accurate and reproducible flow measurements using advanced ultrasonic technology. The non-invasive measurement technique eliminates the need for pipe cutting or alterations, minimizing downtime and potential leaks. The device provides flexible measurement options, displaying flow velocity, volume flow, and total volume in various units. The integrated data logger with its large 32 GB memory enables long-term monitoring and analysis of flow patterns. The optional heat quantity measurement capability (PCE-TDS 200+) provides valuable data for energy efficiency studies. The clear LC color display ensures easy readability of measurement results. The included small sensors are specifically designed for accurate measurement on smaller pipe diameters, ensuring optimal performance in these applications.

Additional Information

PCE Instruments is a reputable manufacturer of professional testing and measurement equipment. The PCE-TDS 200 S is designed to meet the rigorous demands of industrial and commercial flow measurement, particularly in applications involving smaller pipes. The small sensors are a key feature, allowing for accurate measurements in situations where larger sensors would be impractical. The ability to set custom alarm limits provides an additional level of control and monitoring. The USB-C interface facilitates easy data transfer to a computer for further analysis. This ultrasonic flow meter is a valuable tool for professionals seeking accurate, versatile, and reliable flow measurement solutions for smaller pipe systems.

Kit Contents

• 1 x Portable Ultrasonic Flow Meter PCE-TDS 200 S
• 1 x Flow sensor PCE-TDS 200 S SENSOR (pair)
• 2 x 5 m connection cable
• 2 x Detachable cable ties
• 1 x Power supply unit
• 1 x USB-C cable
• 1 x Ultrasonic contact gel
• 1 x PCE measuring tape
• 1 x Plastic case
• 1 x Instruction manual

Achieve precise and versatile flow measurement in smaller pipe systems with the PCE Instruments PCE-TDS 200 S Ultrasonic Flowmeter! Enhance your industrial processes and energy efficiency today.
