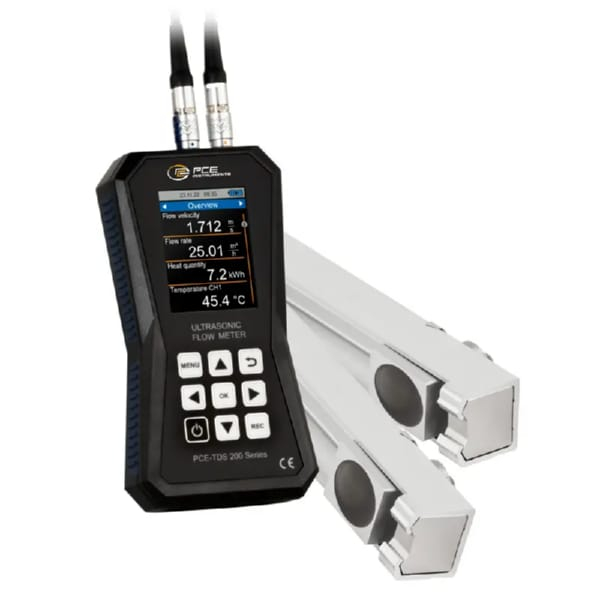

PCE Instruments PCE-TDS 200 MR Portable Ultrasonic Flow Meter

Overview

The PCE Instruments PCE-TDS 200 MR Portable Ultrasonic Flow Meter is a versatile and precise instrument designed for professional fluid flow measurement in a variety of industrial and commercial applications. This portable flow meter offers a wide measuring range of ±32 m/s, high accuracy, and a large 32 GB data memory, making it ideal for detailed flow analysis. Capable of measuring flow velocity, volume flow, and volume, and even heat quantity (with optional thermocouples), the PCE-TDS 200 MR provides comprehensive flow data. The MR sensor configuration with separate on-rail sensors offers flexibility in sensor placement, enhancing measurement accuracy and ease of use.

Key Features

• Wide Measurement Range: Measures flow velocity across a range of ±32 m/s, accommodating diverse flow rates in various pipe systems.
• High Reproducibility: Offers a high reproducibility of ±0.5 % of the measured value, ensuring consistent and reliable flow readings.
• Large Data Memory: Features a built-in 32 GB data logger capable of storing up to 10 million measuring points for extensive data collection and analysis.
• Heat Quantity Measurement: Can determine heat quantity with optional thermocouples (PCE-TDS 200+), making it suitable for energy audits and heating system optimization.
• User-Friendly Interface: Features a 2.8" LC color display for clear and easy-to-read measurement results.
• Separate On-Rail Sensors (MR SENSOR): Equipped with sensors mounted on separate rails, allowing for flexible and precise sensor positioning on the pipe.

Specifications

• Brand: PCE Instruments
• Model: PCE-TDS 200 MR
• Measuring Range: ±32 m/s
• Accuracy:
  • ±1.5 % f.s. (DN ≥50)
  • ±3.5 % f.s. (DN <50)
• Reproducibility: ±0.5 % of measured value
• Data Memory: 32 GB (10 million measuring points)
• Display: 2.8" LC color display
• Interface: USB-C
• Sensor Type: PCE-TDS 200 MR SENSOR (separate on-rail)
• Pipe Diameter Range (MR SENSOR): DN 50 ... 700 / 57 ... 720 mm
• Sensor Temperature Resistance: -30 ... 160 °C

Applications

Essential for industrial process control, providing accurate flow measurement for optimizing production, monitoring fluid transfer, and managing resources efficiently. Valuable for energy audits and heating system analysis (with optional thermocouples), enabling precise determination of heat consumption and efficiency. Useful in water treatment facilities for monitoring flow rates in pipelines and distribution networks, ensuring proper treatment and distribution. Applicable in various industries where accurate and non-invasive flow measurement of liquids is required, including chemical processing, food and beverage production, and power generation.

Performance and Characteristics

The PCE-TDS 200 MR ultrasonic flow meter delivers highly accurate and reproducible flow measurements using advanced ultrasonic technology. The non-invasive measurement technique eliminates the need for pipe cutting or alterations, minimizing downtime and potential leaks. The device offers versatile measurement options, displaying flow velocity, volume flow, and total volume in various units. The integrated data logger with its large 32 GB memory allows for extensive long-term monitoring and analysis of flow patterns. The optional heat quantity measurement capability (PCE-TDS 200+) provides valuable data for energy efficiency studies and cost analysis. The clear LC color display ensures easy readability of measurement results. The separate on-rail sensors provide flexibility in sensor placement, optimizing signal quality and measurement accuracy.

Additional Information

PCE Instruments is a reputable manufacturer of professional testing and measurement equipment, known for its commitment to accuracy and reliability. The PCE-TDS 200 MR is designed to meet the rigorous demands of industrial and commercial flow measurement. The separate on-rail sensors allow for optimal sensor positioning on the pipe, which is critical for accurate measurement, especially in challenging pipe configurations. The device's versatility, large data storage capacity, and optional heat quantity measurement capabilities make it a valuable tool for professionals seeking comprehensive and accurate flow measurement solutions.

Kit Contents

• 1 x Portable Ultrasonic Flow Meter PCE-TDS 200 MR
• 1 x Flow sensor PCE-TDS 200 MR SENSOR (pair)
• 2 x 5 m connection cable
• 2 x Detachable cable ties
• 1 x Power supply unit
• 1 x USB-C cable
• 1 x Ultrasonic contact gel
• 1 x PCE measuring tape
• 1 x Plastic case
• 1 x Instruction manual

Achieve precise and flexible flow measurement with the PCE Instruments PCE-TDS 200 MR Portable Ultrasonic Flow Meter! Optimize your industrial processes and energy efficiency today.
