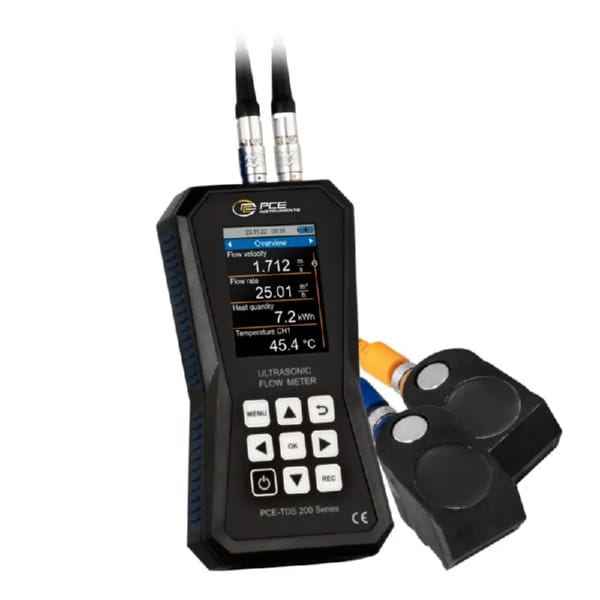

PCE Instruments PCE-TDS 200 M Ultrasonic Flowmeter with 32 GB Data Memory

Overview

This robust **PCE Instruments PCE-TDS 200 M Ultrasonic Flowmeter** is engineered for highly accurate, non-invasive fluid flow measurement across medium-sized pipe diameters. It addresses the critical need for precise flow rate monitoring without interrupting operations or damaging pipes, making it an ideal solution for professionals requiring on-site, real-time data and detailed energy analysis.

The PCE-TDS 200 M offers exceptional accuracy and reproducibility, enhancing operational efficiency and ensuring compliance in industrial, commercial, and municipal applications. Its versatility is further boosted by a comprehensive 32 GB internal data memory, allowing for extensive data logging and analysis. This device provides a sophisticated yet user-friendly alternative to traditional, invasive measurement methods, preventing costly downtime and offering the unique capability to calculate heat quantity and costs simultaneously when paired with optional thermocouples, perfect for **heating system inspections** and energy management.

Key Features

• Wide Measuring Range: Accurately measures flow velocities from ±0.01 m/s up to ±32 m/s.
• High Data Storage Capacity: Features a massive 32 GB built-in memory, capable of storing up to 10 million measuring points.
• Precise Reproducibility: Ensures consistent and reliable measurements with a reproducibility of ±0.5% of the measured value.
• Heat Quantity Measurement Ready: Capable of calculating and displaying heat quantity and costs when used with optional thermocouples.
• Dedicated Medium Sensors: Includes the PCE-TDS 200 M SENSOR pair, suitable for pipe diameters from DN 50 to 700 mm.

Specifications

Measuring Range: ±32 m/s

Accuracy (DN ≥50): ±1.5 % f.s.

Accuracy (DN <50): ±3.5 % f.s.

Reproducibility: ±0.5 % f.s.

Data Memory: 32 GB (up to 10 million measuring points)

Display: 2.8" LC color display

Adjustable Storage Interval: 1 second to 12 hours

Interface: USB-C

Sensor Type (M Sensor Pair): For pipe diameters DN 50 ... 700 / 57 ... 720 mm

Sensor Temperature Resistance: -30 ... 160 °C

Sensor Mounting: Built-in magnets (for ferrous pipes) or detachable cable ties

Measurement Units: m³, l, gal, igl, mgl, cf, bal, ib, ob, and more

Applications

Ideal for **HVAC technicians, energy auditors, facility managers, and process engineers** needing to monitor liquid flow and thermal energy in medium-sized pipe systems without disruption. This **ultrasonic flowmeter** is perfect for applications such as evaluating heating and cooling system efficiency, verifying pump performance, identifying energy losses in building networks, conducting compliance checks, or ensuring precise flow rates in various industrial processes. Its non-invasive nature and **heat quantity measurement** capability make it indispensable for temporary measurements, troubleshooting, and verifying existing inline flow meters across industries like commercial building management, smaller-scale industrial applications, and water distribution within specific zones.

Performance and Characteristics

The **PCE-TDS 200 M** delivers high-precision, non-intrusive flow measurement through advanced ultrasonic technology, specifically tailored for medium pipe diameters using the included M sensor pair. The integrated installation aid visually guides sensor placement, guaranteeing optimal signal quality for accurate readings. With a rapid measuring range of ±32 m/s and a high reproducibility of ±0.5% f.s., this device provides reliable data crucial for critical operational decisions. The unique ability to integrate with additional thermocouples (available with PCE-TDS 200+) allows for precise **heat quantity calculation** and simultaneous cost display, making it invaluable for energy efficiency assessments. Its robust data logging capabilities, including configurable start/stop conditions and storage intervals, coupled with optional software for tabular and graphic analysis, allow for comprehensive long-term monitoring and reporting in .csv or PDF formats. The vivid 2.8" LC color display ensures clear readability of all measured values, making on-site diagnostics efficient and effective.

Kit Contents

• 1 x Ultrasonic flow meter PCE-TDS 200 M
• 1 x Flow sensor PCE-TDS 200 M SENSOR (pair)
• 2 x 5 m connection cable
• 2 x Detachable cable ties
• 1 x Power supply unit
• 1 x USB-C cable
• 1 x Ultrasonic contact gel
• 1 x PCE measuring tape
• 1 x Plastic case
• 1 x Instruction manual
