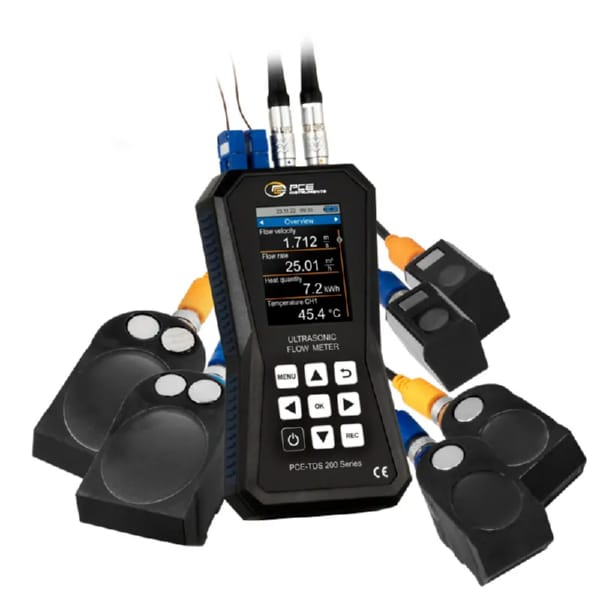

PCE Instruments PCE-TDS 200+ SML Handheld Ultrasonic Flow Meter with Three Sensor

Overview

The PCE Instruments PCE-TDS 200+ SML Handheld Ultrasonic Flow Meter is a comprehensive and highly versatile instrument designed for professional fluid flow measurement across a wide range of pipe sizes. This portable ultrasonic flow meter offers a measuring range of ±32 m/s, high accuracy, and a substantial 32 GB data memory, making it suitable for detailed flow analysis. It's equipped with three sensor pairs (small, medium, and large) to accommodate various pipe diameters and can measure heat quantity, providing valuable data for diverse industrial and commercial applications. The PCE-TDS 200+ SML is a powerful solution for professionals needing flexible and accurate flow measurement in complex or varied pipe systems.

Key Features

• Wide Measuring Range: Accurately measures flow velocity across a range of ±32 m/s, accommodating diverse flow rates in various pipe systems.
• High Reproducibility: Offers a high reproducibility of ±0.5 % of the measured value, ensuring consistent and reliable flow readings.
• Large Data Memory: Features a built-in 32 GB data logger capable of storing up to 10 million measuring points for extensive data collection and analysis.
• Heat Quantity Measurement: Includes thermocouples to determine heat quantity, making it suitable for energy audits and heating system optimization.
• User-Friendly Interface: Features a 2.8" LC color display for clear and easy-to-read measurement results in various lighting conditions.
• Three Sensor Pairs: Comes with small (S), medium (M), and large (L) sensor pairs to cover a broad range of pipe diameters.

Specifications

• Brand: PCE Instruments
• Model: PCE-TDS 200+ SML
• Measuring Range: ±32 m/s
• Accuracy:
  • ±1.5 % f.s. (DN ≥50)
  • ±3.5 % f.s. (DN <50)
• Reproducibility: ±0.5 % of measured value
• Data Memory: 32 GB (10 million measuring points)
• Display: 2.8" LC color display
• Interface: USB-C
• Sensor Options:
  • PCE-TDS 200 S SENSOR (Small): DN 15 ... 100 / 20 ... 108 mm pipes
  • PCE-TDS 200 M SENSOR (Medium): DN 50 ... 700 / 57 ... 720 mm pipes
  • PCE-TDS 200 L SENSOR (Large): DN 300 ... 6000 mm pipes
• Sensor Temperature Resistance: -30 ... 160 °C

Applications

Essential for industrial process control, providing accurate flow measurement to optimize production, monitor fluid transfer, and manage resources efficiently across various pipe sizes. Crucial for energy audits and heating system analysis, enabling precise determination of heat consumption, energy efficiency, and cost analysis in complex systems. Valuable in water treatment facilities for monitoring flow rates in pipelines and distribution networks of varying sizes, ensuring proper treatment and distribution. Applicable in power plants for measuring cooling water flow and optimizing system performance across diverse piping configurations. Ideal for any professional application requiring versatile and non-invasive flow measurement in systems with multiple pipe diameters.

Performance and Characteristics

The PCE-TDS 200+ SML ultrasonic flow meter delivers highly accurate and reproducible flow measurements using advanced ultrasonic technology. The non-invasive measurement technique eliminates the need for pipe cutting or alterations, minimizing downtime and potential leaks. The device provides flexible measurement options, displaying flow velocity, volume flow, and total volume in various units. The integrated data logger with its large 32 GB memory allows for extensive long-term monitoring and analysis of flow patterns. The included thermocouples enable precise heat quantity measurement, providing valuable data for energy efficiency studies and cost analysis. The clear LC color display ensures easy readability of measurement results. The inclusion of three sensor pairs (S, M, L) significantly increases the instrument's versatility, allowing it to adapt to a wide range of pipe sizes and applications.

Additional Information

PCE Instruments is a reputable manufacturer of professional testing and measurement equipment, known for its commitment to accuracy and reliability. The PCE-TDS 200+ SML is designed to meet the rigorous demands of industrial and commercial flow measurement, particularly in systems with varying pipe diameters. The combination of different sensor sizes and heat quantity measurement capabilities makes this instrument a comprehensive and efficient solution. The USB-C interface facilitates easy data transfer to a computer for further analysis. This ultrasonic flow meter is a valuable tool for professionals seeking accurate, versatile, and comprehensive flow measurement solutions for complex and varied pipe systems.

Kit Contents

• 1 x Ultrasonic flow meter PCE-TDS+ 200 SML
• 1 x Flow sensors PCE-TDS 200 S SENSOR (pair)
• 1 x Flow sensors PCE-TDS 200 M SENSOR (pair)
• 1 x Flow sensors PCE-TDS 200 L SENSOR (pair)
• 2 x Temperature sensor TF-RA330
• 2 x 5 m connection cable
• 2 x Detachable cable ties
• 1 x Power supply unit
• 1 x USB-C cable
• 1 x Ultrasonic contact gel
• 1 x PCE measuring tape
• 1 x Plastic case
• 1 x Instruction manual

Achieve comprehensive and versatile flow measurement across a wide range of pipe sizes with the PCE Instruments PCE-TDS 200+ SML Handheld Ultrasonic Flow Meter! Optimize your industrial processes and energy efficiency today.
