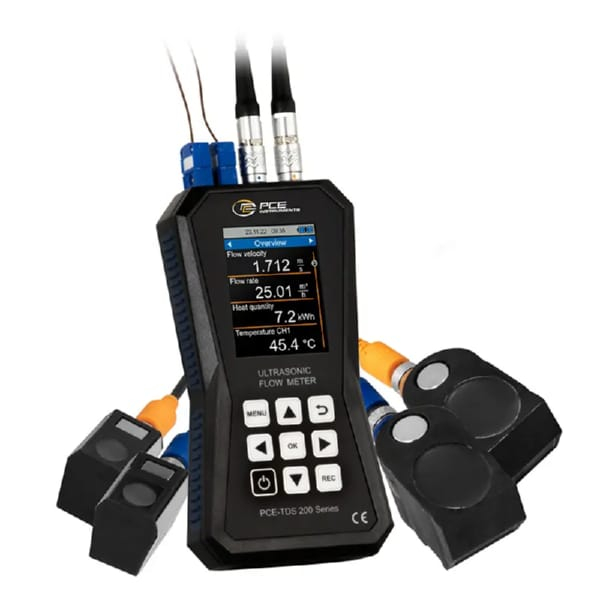

PCE Instruments PCE-TDS 200+ SM Portable Ultrasonic Flow Meter with Two Sensor

Overview

The PCE Instruments PCE-TDS 200+ SM Portable Ultrasonic Flow Meter is a versatile and precise instrument designed for professional fluid flow measurement in a range of pipe sizes. This portable ultrasonic flow meter offers a wide measuring range of ±32 m/s, high accuracy, and a large 32 GB data memory, making it ideal for detailed flow analysis. Notably, it includes thermocouples for heat quantity measurement, expanding its application beyond standard flow measurement. The PCE-TDS 200+ SM comes with both small and medium sensor pairs, providing flexibility for different pipe diameter requirements.

Key Features

• Wide Measuring Range: Measures flow velocity across a range of ±32 m/s, accommodating diverse flow rates in various pipe systems.
• High Reproducibility: Offers a high reproducibility of ±0.5 % of the measured value, ensuring consistent and reliable flow readings.
• Large Data Memory: Features a built-in 32 GB data logger capable of storing up to 10 million measuring points for extensive data collection and analysis.
• Heat Quantity Measurement: Includes thermocouples to determine heat quantity, making it suitable for energy audits and heating system optimization.
• User-Friendly Interface: Features a 2.8" LC color display for clear and easy-to-read measurement results.
• Two Sensor Pairs: Comes with both small (S) and medium (M) sensor pairs for accurate measurement on different pipe diameters.

Specifications

• Brand: PCE Instruments
• Model: PCE-TDS 200+ SM
• Measuring Range: ±32 m/s
• Accuracy:
  • ±1.5 % f.s. (DN ≥50)
  • ±3.5 % f.s. (DN <50)
• Reproducibility: ±0.5 % of measured value
• Data Memory: 32 GB (10 million measuring points)
• Display: 2.8" LC color display
• Interface: USB-C
• Sensor Options:
  • PCE-TDS 200 S SENSOR (Small): DN 15 ... 100 / 20 ... 108 mm pipes
  • PCE-TDS 200 M SENSOR (Medium): DN 50 ... 700 / 57 ... 720 mm pipes
• Sensor Temperature Resistance: -30 ... 160 °C

Applications

Essential for industrial process control, providing accurate flow measurement for optimizing production, monitoring fluid transfer, and managing resources efficiently. Crucial for energy audits and heating system analysis, enabling precise determination of heat consumption, energy efficiency, and cost analysis. Valuable in water treatment facilities for monitoring flow rates in pipelines and distribution networks. Applicable in various industries where accurate and non-invasive flow measurement of liquids is required, including chemical processing, food and beverage production, and power generation.

Performance and Characteristics

The PCE-TDS 200+ SM ultrasonic flow meter delivers highly accurate and reproducible flow measurements using advanced ultrasonic technology. The non-invasive measurement technique eliminates the need for pipe cutting or alterations, minimizing downtime and potential leaks. The device provides flexible measurement options, displaying flow velocity, volume flow, and total volume in various units. The integrated data logger with its large 32 GB memory allows for extensive long-term monitoring and analysis of flow patterns. The included thermocouples enable precise heat quantity measurement, providing valuable data for energy efficiency studies and cost analysis. The clear LC color display ensures easy readability of measurement results. The included sensor installation aid simplifies sensor placement and optimizes measurement accuracy.

Additional Information

PCE Instruments is a reputable manufacturer of professional testing and measurement equipment, known for its commitment to accuracy and reliability. The PCE-TDS 200+ SM is designed to meet the rigorous demands of industrial and commercial flow measurement. The combination of different sensor sizes and heat quantity measurement capabilities makes this instrument a versatile and efficient solution. The USB-C interface facilitates easy data transfer to a computer for further analysis. This ultrasonic flow meter is a valuable tool for professionals seeking accurate, versatile, and comprehensive flow measurement solutions.

Kit Contents

• 1 x Portable Ultrasonic Flow Meter PCE-TDS 200+ SM
• 1 x Flow sensors PCE-TDS 200 S SENSOR (pair)
• 1 x Flow sensors PCE-TDS 200 M SENSOR (pair)
• 2 x Temperature sensor TF-RA330
• 2 x 5 m connection cable
• 2 x Detachable cable ties
• 1 x Power supply unit
• 1 x USB-C cable
• 1 x Ultrasonic contact gel
• 1 x PCE measuring tape
• 1 x Plastic case
• 1 x Instruction manual

Achieve precise flow and heat quantity measurement with the versatile and accurate PCE Instruments PCE-TDS 200+ SM Portable Ultrasonic Flow Meter! Optimize your industrial processes and energy efficiency today.
