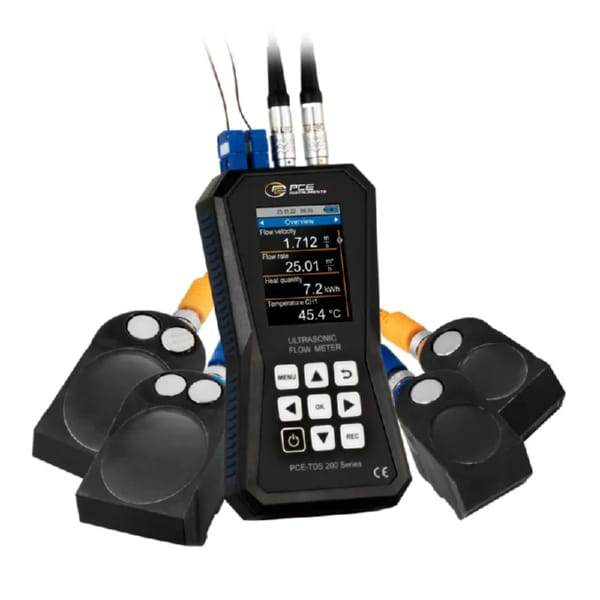

PCE Instruments PCE-TDS 200+ ML Portable Ultrasonic Flow Meter with Measuring Range of +/-32 m/s
- Part #:PCE-TDS 200+ ML
- Condition:Brand New
- List Price: $4,827.00
- $3,860.00 / EachYou Save: 20.03%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $4,827.00
- $3,860.00 / EachYou Save: 20.03%
- Free Shipping
Overview
This robust **portable ultrasonic flow meter**, the **PCE Instruments PCE-TDS 200+ ML**, is engineered for highly accurate, non-invasive fluid flow measurement across a wide range of pipe diameters and media. It solves the critical need for precise flow rate monitoring without interrupting operations or damaging pipes, making it an ideal solution for professionals requiring on-site, real-time data.
The PCE-TDS 200+ ML offers exceptional accuracy and reproducibility, enhancing operational efficiency and ensuring compliance in industrial, commercial, and municipal applications. Its versatility is further boosted by a comprehensive 32 GB internal data memory, allowing for extensive data logging and analysis. This device provides a sophisticated yet user-friendly alternative to traditional flow measurement methods, preventing costly downtime associated with invasive sensor installations.
Key Features
- Wide Measuring Range: Accurately measures flow velocities from ±0.01 m/s up to ±32 m/s.
- High Data Storage Capacity: Features a massive 32 GB built-in memory, capable of storing up to 10 million measuring points.
- Precise Reproducibility: Ensures consistent and reliable measurements with a reproducibility of ±0.5% of the measured value.
- Versatile Sensor Compatibility: Includes both M and L sensor pairs for pipe diameters ranging from DN 50 to DN 6000, accommodating diverse pipe sizes.
- User-Friendly Interface & Setup: Equipped with a 2.8" LC color display and an intuitive installation aid to ensure correct sensor positioning and optimal signal quality.
Specifications
Measuring Range: ±32 m/s
Accuracy (DN ≥50): ±1.5 % f.s.
Accuracy (DN <50): ±3.5 % f.s.
Reproducibility: ±0.5 % f.s.
Data Memory: 32 GB (up to 10 million measuring points)
Display: 2.8" LC color display
Adjustable Storage Interval: 1 second to 12 hours
Interface: USB-C
Sensor Type (M Sensor Pair): For pipe diameters DN 50 ... 700 / 57 ... 720 mm
Sensor Type (L Sensor Pair): For pipe diameters DN 300 ... 6000 mm
Sensor Temperature Resistance: -30 ... 160 °C
Sensor Mounting: Built-in magnets (for ferrous pipes) or detachable cable ties
Measurement Units: m³, l, gal, igl, mgl, cf, bal, ib, ob, and more
Applications
Ideal for **facility managers, hydrologists, HVAC technicians, process engineers, and environmental consultants** needing to monitor liquid flow in various systems without cutting into pipes. This **ultrasonic flow meter** is perfect for applications such as validating pump performance, identifying leaks in large distribution networks, conducting energy audits for heating/cooling systems, or ensuring precise flow rates in industrial processes. Its non-invasive nature makes it indispensable for temporary measurements, troubleshooting, and verifying existing inline flow meters across industries like water utilities, chemical processing, building management, and power generation.
Performance and Characteristics
The **PCE-TDS 200+ ML** delivers high-precision, non-intrusive flow measurement through advanced ultrasonic technology. Its dual sensor types (M and L) ensure adaptability across an extensive range of pipe diameters, from small commercial lines to large municipal infrastructure. The integrated installation aid visually guides sensor placement, guaranteeing optimal signal quality for accurate readings. With a rapid measuring range of ±32 m/s and a high reproducibility of ±0.5% f.s., this device provides reliable data crucial for critical operational decisions. Its robust data logging capabilities, including configurable start/stop conditions and storage intervals, coupled with optional software for tabular and graphic analysis, allow for comprehensive long-term monitoring and reporting in .csv or PDF formats. The vivid 2.8" LC color display ensures clear readability of all measured values, making on-site diagnostics efficient and effective.
Kit Contents
- 1 x Ultrasonic flow meter PCE-TDS 200+ ML
- 1 x Flow sensors PCE-TDS 200 M SENSOR (pair)
- 1 x Flow sensors PCE-TDS 200 L SENSOR (pair)
- 2 x Temperature sensor TF-RA330
- 2 x 5 m connection cable
- 2 x Detachable cable ties
- 1 x Power supply unit
- 1 x USB-C cable
- 1 x Ultrasonic contact gel
- 1 x PCE tape measure
- 1 x Plastic case
- 1 x User manual
Optimize your flow measurement processes with unparalleled precision. Shop the PCE Instruments PCE-TDS 200+ ML Portable Ultrasonic Flow Meter now!
Ensure accurate fluid management and operational efficiency. Order your PCE-TDS 200+ ML today!
Achieve non-invasive, high-accuracy flow analysis. Discover the PCE-TDS 200+ ML Portable Ultrasonic Flow Meter!
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Flow measurement | |
| Measuring range | ±32 m/s |
| Accuracy | 0,001 m/s |
| Genauigkeit | DN ≥50 mm: ±1.5 % rdg. for velocities > 0.3 m/s |
| DN <50 mm: ±3.5 % rdg. for velocities > 0.3 m/s | |
| Reproducibility | ±0.5 % of measured value |
| PCE-TDS 200 S SENSOR | Sensor pair |
| Pipe diameter | DN 15 ... 100 / 20 ... 108 mm |
| Temperature resistance | -30 ... 160 °C |
| Dimension | 45 x 30 x 30 mm |
| PCE-TDS 200 M SENSOR | |
| Pipe diameter | DN 50 ... 700 / 57 ... 720 mm |
| Temperature resistance | -30 ... 160 °C |
| Measuring method | Z, V, N, W |
| Medium | - water |
| - sea water | |
| - oil | |
| - crude oil | |
| - methanol | |
| - ethanol | |
| - diesel | |
| - petrol | |
| - petroleum | |
| - user defined | |
| (manual input of the sound velocity from the medium) | |
| All liquids with an impurity | <5 % |
| Pipe material | - copper CU |
| - steel FE | |
| - stainless steel VA | |
| - aluminium AL | |
| - brass ME | |
| - cast iron CI | |
| - iron FE | |
| - nickel NI | |
| - titanium TI | |
| - zink ZI | |
| - acrylic AC | |
| - polyethylene PE | |
| - polypropylene PP | |
| - polyvinyl chloride PVC | |
| - nylon NY | |
| - user defined | |
| (manual input of the transversal sound velocity | |
| of the pipe material) | |
| Inner pipe lining | - no lining |
| - user defined | |
| - epoxy resin | |
| - rubber | |
| - mortar | |
| - polystyrene PS | |
| - polyethylene PE | |
| - polytetrafluoroethylene PTFE | |
| - polyurethane PU | |
| - polypropylene PP | |
| - user defined | |
| (manual input of the longitudinal sound velocity | |
| of the inner lining of the pipe) | |
| Measurement parameters | flow velocity, volume flow and volume |
| Units (dimensions) | mm, in |
| Units (flow velocity) | m/s, ft/s |
| Units (volume flow) | m³, l, gal, igl, mgl, cf, bal, ib, ob |
| Time specification | seconds, minutes, hours, days |
| Units (volume) | m³, l, gal, igl, mgl, cf, bal, ib, ob |
| Temperature measurement | |
| Measuring range | Accuracy |
| Type B: 600 ... 1800 °C | Type B: ±(0.5 % + 3 °C) |
| Type E: -100 ... +900 °C | Type E: ±(0.4 % + 1 °C) |
| Type J: -100 ... 1150 °C | Type J: ±(0.4 % + 1 °C) |
| Type K: -100 ... +1370 °C | Type K: ±(0.4 % + 1 °C) |
| Type N: -100 ... + 1150 °C | Type N: ±(0.4 % + 1 °C) |
| Type R: 0 ... 1700 °C | Type R: ±(0.5 % + 3 °C) |
| Type S: 0 ... 1500 °C | Type S: ±(0.5 % + 3 °C) |
| Type T: -100 ... +400 °C | Type T: ±(0.4 % + 1 °C) |
| Resolution | 0.1 °C |
| Connectable thermocouples | B, E ,J ,K ,N ,R ,S ,T |
| Measuring parameters | flow rate, volume flow, volume, temperature, |
| Heat output and heat quantity | |
| Units (temperature) | °C / °F |
| Units (heat quantity) | K, kJ, MJ, Wh, kWh, MWh, Btu, kBtu, MBtu |
| Units (heat output) | W, kW, MW, J/h, kJ/h MJ/h, Btu/h, kBtu/h, MBtu/h |
| Cost display | EUR, Pound, USD, Turkish Lira, Zloty, Yen |
| Further specifications | |
| 2.8" LCD | 2,8" LCD |
| Menu | metrisch / imperial |
| Menu languages | German, English, French, Spanish, |
| Italian, Dutch, Portuguese, Danish, Turkish, Polish, German | |
| Turkish, Polish, Russian, Chinese, Japanese | |
| Operating and storage conditions | Temperature: -20 ... +65 °C |
| Humidity: 10 ... 95 % r. h., non-condensing | |
| Data logger | 32 GB memory capacity / 10 million measuring points |
| Unterface | USB (for online measurement, readout of the internal memory |
| memory and for recharging the battery) | |
| Protection class | IP52 |
| Power supply Internal | Internal: LiPo battery (3.7 V, 2500 mAh) |
| External: USB 5 VDC, 500 mA | |
| Operating time | approx. 10 h |
| Dimensions | 165 x 85 x 32 mm |
| Weight | 255 g |
