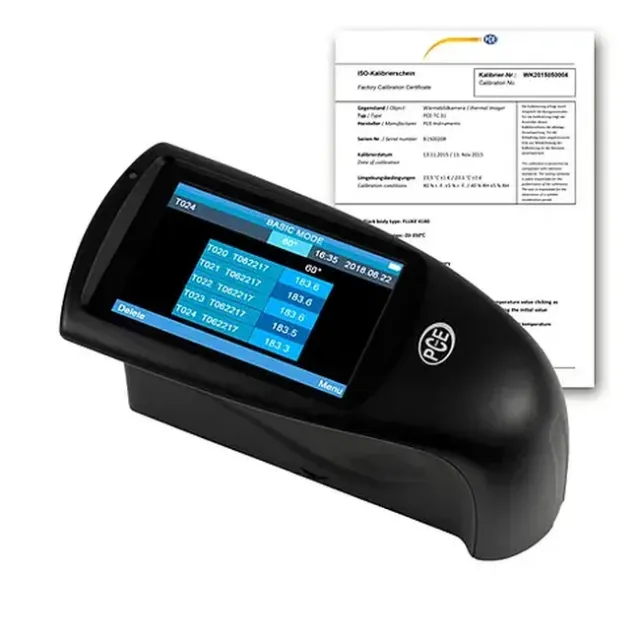

PCE Instruments PCE-SGM 60-ICA Gloss Meter, Wave length 400 to 700 nm incl. ISO Calibration Certificate

Gloss meter for use in quality and incoming goods inspection / 60° Measuring Geometry / 3.5" TFT Display / Low measurement time / Small measurement area / Measurement to 1000 GU

This gloss meter with a small measuring area is used to quantify surfaces that must be measured. The gloss-measuring device operates on the reflection principle by sending light from a known light source onto the surface to be tested and calculates the gloss level of the surface according to the reflection of light particles. The gloss level in gloss units (GU) is then output to the display of the gloss meter.

The measurement geometry of the Gloss Meter PCE-SGM 60 is 60 degrees and is not adjustable. Evaluation software is included with the gloss meter which allows you to read out the measurement data to a computer and analyze and store your results. This gloss meter has data memory installed, which can accommodate up to 5,000 measured values depending on the setting.

Features:

• Measurement geometry: 60°
• Measurement to 1000 gloss units
• Internal memory up to 5000 readings
• Small measurement area
• Fast measurement time
• Includes evaluation software
• Light source: D65
• Wave length: 400-700 nm

Includes:

• 1 x Gloss Meter PCE-SGM 60
• 1 x Charger
• 1 x USB cable
• 1 x Analysis software (on CD-ROM)
• 1 x Calibration plate
• 1 x User manual
• 1 x ISO Calibration Certificate
