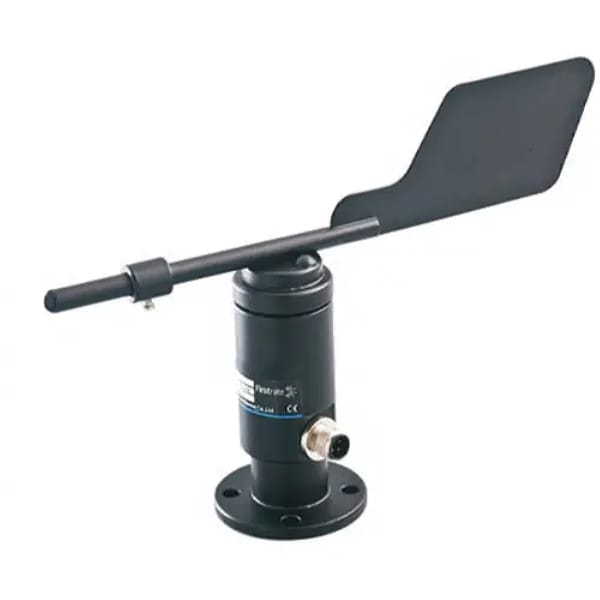

PCE Instruments PCE-FST-200-202-I Robust Wind Sensor for Permanent Installation
- Part #:PCE-FST-200-202-I
- Condition:Brand New
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e){kind=small}
Free ShippingRobust wind sensor for permanent installation / Powder coating / Weatherproof seal protection/ Analogue output signals
The wind direction sensor measures the direction of wind and the results are then output in analogue form. The sensor is compatible with and can be mounted on to a wide variety of available measuring equipment. The sensor will detect even the minutest movements of air and the results are directly passed on. The wind direction sensor is sensitive to wind speed down to as little as, less than 0.8 meters per second.
The wind direction sensor is available in different versions with different outputs. This one is available with 4 … 20-mA output and a 0 … 10V DC output. The sensor is manufactured from corrosion resistant alloy, thus making it impervious to oxidation or rust. This allows the device to be used in the toughest environments. Sensitive parts are protected with seals, to prevent the ingress of water or fine dust.
Features:
- Alloys
- Long life span
- Seal protection
- Direct wind direction measurements
- Easy assembly
- Detects minutest movements of air
Includes:
- 1 x Air Flow Meter PCE-FST-200-202-I
- 1 x Plug M12
- 1 x 3 m / 9.8 ft cable
- 1 x Operating Manual
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Output signal | 4 … 20-mA |
| Operating voltage | 12 … 36V DC |
| Resolution | 22.5° |
| Measurement reading range | 0 … 360° |
| Measurement readings from | ≤ 0.8 m/s (1.8 mph) |
| Measurement reading accuracy | ± 3° |
| Electrical resistance | 250 Ω |
| Heat output | 10 W at 24V DC |
| Operating voltage | 12 … 36V DC |
| Maximum wind speed | 70 m/s (156.6 mph) at max. 30 minutes |
| Power connection | M12 |
| Protection class | IP55 |
