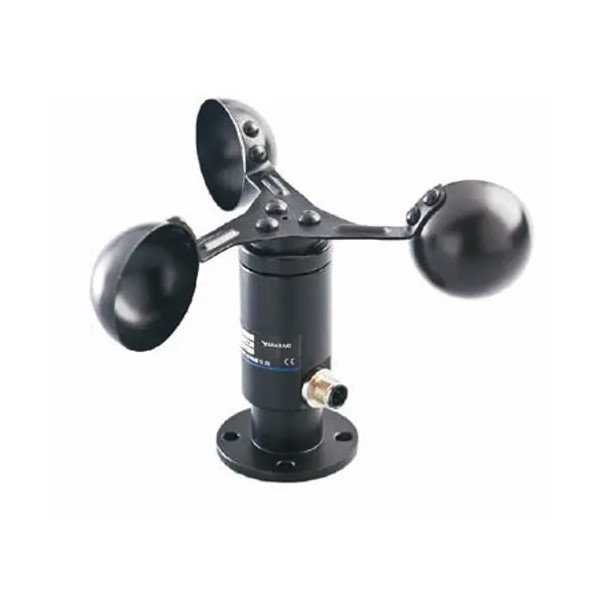

PCE Instruments PCE-FST-200-201-I Robust Wind Measurer for Permanent Installation with 4-20 mA and 0-10 V DC Output

Key Facts

• Robust wind measurer designed for permanent installation.
• Cup anemometer sensor for detecting wind speed and air movement.
• Analog output version with 4-20 mA and 0-10 V DC output.
• Detects wind speed down to less than 0.5 m/s.
• Corrosion-resistant alloy construction helps protect against oxidation and rust.
• Weatherproof seal protection helps guard sensitive parts against water and fine dust ingress.
• Compatible with a wide range of available measuring equipment.

Overview

The PCE-FST-200-201-I robust wind measurer from PCE Instruments is a permanently installed wind speed sensor designed for industrial, environmental, and monitoring applications where continuous wind measurement is required. The cup anemometer detects even very small movements of air and outputs the measured result as an analog signal for connection to compatible measuring or control equipment.

This version is equipped with both 4-20 mA and 0-10 V DC output, making it suitable for integration into many monitoring systems, data acquisition setups, and control environments. Its corrosion-resistant alloy body and sealed sensitive components make it suitable for demanding outdoor use where exposure to weather, fine dust, and moisture is a concern.

Product images are for reference only and may vary.

Features

• Permanent-installation wind speed sensor for fixed monitoring applications.
• Cup anemometer design for reliable wind speed detection.
• Analog output signal for system integration.
• 4-20 mA output and 0-10 V DC output version.
• Detects small air movements for low-speed wind monitoring.
• Corrosion-resistant alloy construction for improved durability.
• Seal protection helps protect sensitive parts from water and fine dust.
• Designed for easy assembly with compatible measuring equipment.

Technical Specifications

• Manufacturer: PCE Instruments
• Part Number: PCE-FST-200-201-I
• Product Type: Robust wind measurer / wind speed sensor / cup anemometer
• Installation Type: Permanent installation
• Output Signal: 4-20 mA
• Additional Output: 0-10 V DC
• Operating Voltage: 12-36 V DC
• Measurement Range: 0.5 m/s to 50 m/s
• Low Wind Speed Sensitivity: Less than 0.5 m/s
• Construction: Corrosion-resistant alloy
• Protection Features: Weatherproof seal protection for sensitive parts

Compatibility

The PCE-FST-200-201-I wind speed sensor is compatible with a wide range of available measuring equipment that can accept its analog output signals. Before ordering, confirm that the receiving device, controller, data logger, or monitoring system supports the required 4-20 mA or 0-10 V DC signal input and the required supply voltage.

Use Cases

• Permanent outdoor wind speed monitoring.
• Industrial environmental measurement systems.
• Weather and site monitoring applications.
• Integration with compatible measuring instruments or data loggers.
• Monitoring applications where analog wind speed output is required.

What's Included

• PCE-FST-200-201-I wind measurer sensor
• Cable
• Plug
• Manual

Installation Notes

This wind measurer is intended for permanent installation and should be connected only to compatible measuring or control equipment. Verify wiring, output type, supply voltage, mounting requirements, and environmental conditions before installation. For export, compliance, or system-integration projects, confirm all technical requirements with the project engineer, installer, or receiving-system manufacturer.

Category FAQs

What is the PCE-FST-200-201-I used for?

The PCE-FST-200-201-I is used for permanent wind speed measurement in applications where air movement must be monitored and transmitted as an analog signal.

Is this model a handheld wind meter?

No. This model is designed as a fixed wind speed sensor for permanent installation, not as a handheld portable anemometer.

What output signals does this version provide?

This version provides 4-20 mA output and 0-10 V DC output for connection to compatible measuring or control equipment.

Can this wind sensor detect low wind speeds?

Yes. The PCE-FST-200-201 wind speed sensor is sensitive to wind speed down to less than 0.5 m/s.

Is the sensor suitable for outdoor environments?

The sensor is built from corrosion-resistant alloy and includes seal protection for sensitive parts, helping protect against water and fine dust in demanding environments.

Can this sensor be connected to any measuring device?

It can be connected to many compatible measuring devices, but the receiving equipment must support the correct analog input signal, voltage requirements, and installation configuration.

What should be checked before installation?

Before installation, confirm the mounting location, supply voltage, signal input type, wiring requirements, and compatibility with the receiving instrument or control system.

Does this product include accessories?

Distributor data lists the product as including a cable, manual, plug, and sensor.
