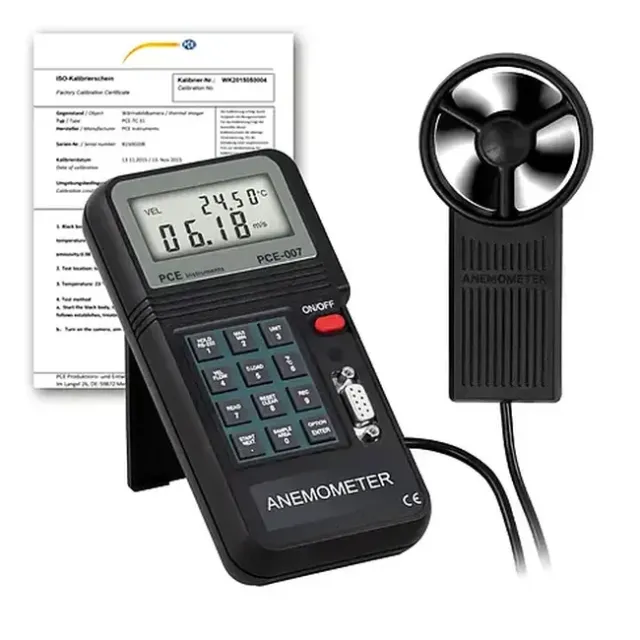

PCE Instruments PCE-007-ICA Anemometer Data Logger, with RS-232 Interface incl. ISO Calibration Certificate

  • Part #:PCE-007-ICA
  • Condition:Brand New
0
Reviews Write a Review Questions & Answers
PCE Instruments PCE-007-ICA Anemometer Data Logger, with RS-232 Interface incl. ISO Calibration Certificate
PCE Instruments PCE-007-ICA Anemometer Data Logger, with RS-232 Interface incl. ISO Calibration Certificate
PCE Instruments PCE-007-ICA Anemometer Data Logger, with RS-232 Interface incl. ISO Calibration Certificate
PCE Instruments PCE-007-ICA Anemometer Data Logger, with RS-232 Interface incl. ISO Calibration Certificate
PCE Instruments PCE-007-ICA Anemometer Data Logger, with RS-232 Interface incl. ISO Calibration Certificate
PCE Instruments PCE-007-ICA Anemometer Data Logger, with RS-232 Interface incl. ISO Calibration Certificate
  • $627.00 / Each
  • Free Shipping logoFree Shipping
  • $627.00 / Each
  • Free Shipping logoFree Shipping
2 Weeks Factory Lead Time
Check Availability
Quantity:
Description
See more product information Report an issue with this product
⚠️ Attention CA Residents: Prop 65 Warning
Technical details
Ranges of measurement with the corresponding symbol of measurement displayed for the PCE-007 Flow meter:
    - m / s     - Feet/min     - Knots     - Km/h     - Mph     - °C / °F      - m³/min0.3 ... 45.0 0.3 ... 8800 0.3 ... 88.0 0.3 ... 140.0 0.3 ... 100.0 0.0 ... 45.0 / 32 ... 113°F 0.0 ... 999,900
Resolution:     - Wind speed     - Air temperature     - Data logger0.01 m/s (the same for all units) 0.2°C / 32.4°F 0.001 to 100 (according to the measurement range)
Accuracy:     - Wind speed     - Air temperature     - Data logger±3% ±0.1 (the same for all units) ±1°C / 33.8°F Calculated from the wind speed and the surface
InterfaceYes, RS-232 for data transfer
MemoryYes, 2000 readings either as wind speed or temperature. Don't forget: if the memory is full, it will save all currently stored data, but if the batteries have no power, then all the data will be lost.
SoftwareYes, for the configuration of the device and to transfer data to a computer (with Windows 95, 98, 2000 or XP Professional) Measurement values can be exported to other programmes such as Excel.
Data transmission rate (via software) 1 s
Side wheel   - Casing   - DimensionsSapphire (set upon bearings of precious stones) 66 x 132 x 29.2 mm / 2.6 x 5.2 x 1.1 in
Display 2 double LCDs with 4 digits
Operating conditions Data logger:    0 ... 50°C / 32 ... 122°F,  <80% r.h.  Side wheel:       0 ... 60°C / 32 ... 140°F, <80% r.h.
Power 1 x 9V battery (approx. 50 hours of use)
Dimensions of the device 88 x 168 x 26.2mm / 3.5 x 6.6 x 1 in
Enclosure ABS plastic
Weight 350g / < lb
Specification Sheet
