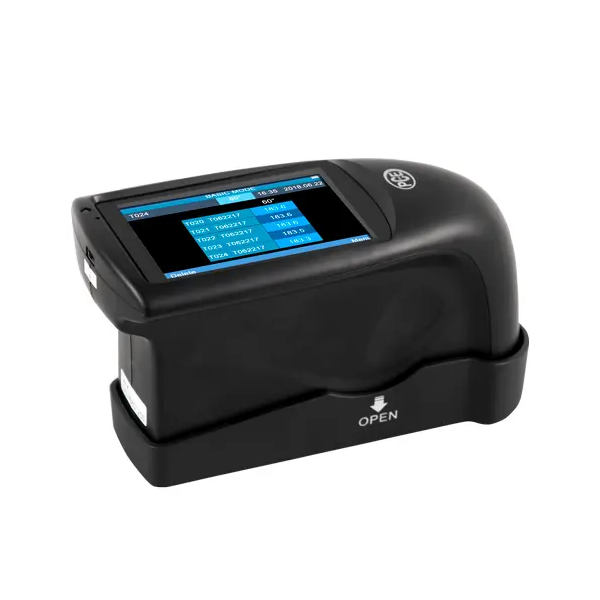

PCE Instruments PCE-SGM 60 Gloss Meter, Wave length 400 to 700 nm
- Part #:PCE-SGM 60
- Condition:Brand New
- List Price: $1,695.00
- $1,383.10 / EachYou Save: 18.4%
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e)
Free Shipping
Gloss meter for use in quality and incoming goods inspection / 60° Measuring Geometry / 3.5" TFT Display / Low measurement time / Small measurement area / Measurement to 1000 GU
This gloss meter with a small measuring area is used to quantify surfaces that must be measured. The gloss-measuring device operates on the reflection principle by sending light from a known light source onto the surface to be tested and calculates the gloss level of the surface according to the reflection of light particles. The gloss level in gloss units (GU) is then output to the display of the gloss meter.
The measurement geometry of the Gloss Meter PCE-SGM 60 is 60 degrees and is not adjustable. Evaluation software is included with the gloss meter which allows you to read out the measurement data to a computer and analyze and store your results. This gloss meter has data memory installed, which can accommodate up to 5,000 measured values depending on the setting.
Features:
- Measurement geometry: 60°
- Measurement to 1000 gloss units
- Internal memory up to 5000 readings
- Small measurement area
- Fast measurement time
- Includes evaluation software
- Light source: D65
- Wave length: 400-700 nm
Includes:
- 1 x Gloss Meter PCE-SGM 60
- 1 x Charger
- 1 x USB cable
- 1 x Analysis software (on CD-ROM)
- 1 x Calibration plate
- 1 x User Manual
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov- You May Also Like
- Your Recently Viewed
- Reviews
| Measurement Geometry | 60° |
| Display | 3.5 in TFT touch display |
| Standards | ISO 2813 GB/T 9754 ASTM D 523 ASTM D 2457 |
| Measuring Area | 1.5mm x 2 mm / 0.06in x 0.07 in |
| Measuring Range | 0 ... 1000 GU |
| Readability | 0.1 GU |
| Repeatability | Measuring range 0 ... 10 GU: ±0.1 GU Measuring range 10 ... 100 GU: ±0.2 GU Measuring range 100 ... 1000 GU: ±0.2 GU (%) |
| Reproducibility | Measuring range 0 ... 10 GU: ±0.2 GU Measuring range 10 ... 100 GU: ±0.5 GU Measuring range 10 ... 1000 GU: ±0.5 GU (%) |
| Chromaticity | Corresponds to CIE 1931 (2 °) under a CIE C - light source |
| Measurement Accuracy | ±1.5 / ±1.5% |
| Measuring Time | 0.5 seconds |
| Dimensions | 160 x 75 x 90 mm / 6.3 x 3 x 3.5 in |
| Weight | 350 g / < 1 lb |
| Menu Language | English, Chinese |
| Power Supply | 3200-mAh Li-ion battery |
| Interface | USB / RS-232 |
| Measurement Memory | Basic measurement: 1000 Statistical mode: 5000 Continuous measurement: 5000 |
| Software | included |
| Ambient Temperature | 0 ... 40° C / 32 ... 104°F |
| Storage Temperature | -20 ... 50° C / -4 ... 122°F |
| Relative Humidity | < 85% rel. Humidity (non-condensing) |
