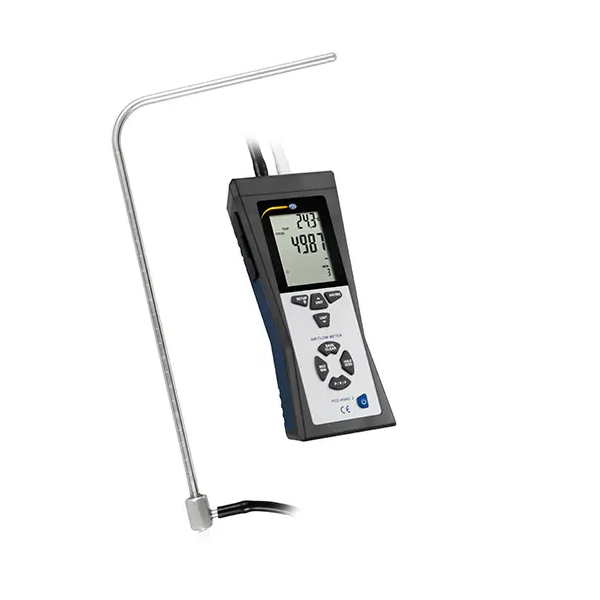

PCE Instruments PCE-HVAC 2 Multifunction Air Flow Meter
- Part #:PCE-HVAC 2
- Condition:Brand New
- List Price: $495.00
- $422.49 / EachYou Save: 14.65%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $495.00
- $422.49 / EachYou Save: 14.65%
- Free Shipping
PCE-HVAC 2 High-velocity multifunction airflow meter with pitot tubeMeasures air velocities up to 80 m/s (178.66 mph) / Zero, minimum, maximum, average, record and hold functions / Stores to memory up to 99 measurement values per parameter
PCE-HVAC 2 is a high-velocity multifunction airflow meter with a pitot tube. This portable airflow meter can be used to determine air speed, air pressure, air flow, differential pressure and ambient temperature. The pitot tube allows access through tiny openings to take measurements in small pipe systems and other confined spaces.
- Measures air velocities up to 80 meters per second (m / s)
- Zero, minimum, maximum, average, record and hold functions
- Stores to memory up to 99 measurement values per parameter
Stored measurement values can be called or read out later on the device itself or on the computer. The transfer to a computer works easily via a USB interface. A real-time measurement can also be carried out via this interface. When a USB connection is established, the measured values are displayed on the computer screen using the downloadable PC-compatible software. In addition to an ergonomic design, the anemometer boasts a backlit display that enables use in low-light conditions. The PCE-HVAC 2 has a thread on the bottom, so the device can be mounted on a tripod. The measuring hoses are inserted at the top of the device allowing for connection to the pitot tube.
Features:
- Measures air speed, air pressure, airflow
- Displays ambient temperature
- Zero adjustment function
- MIN, MAX, AVR, REC and HOLD functions
- Backlit LCD
- Dual display on the LCD
- Suitable for high flow rates
- Internal memory for 99 measurement values per parameter
- USB cable included
- Downloadable PC-compatible software
- Real-time measurement
- Pitot tube measurement
- Differential pressure and standard measurement
- 2 connecting hoses (each 85 cm / 33.46 in)
- Adjustable measuring units (adjustable)
- ISO calibration available - see accessories for details
Includes:
- 1 x Multifunction Air Flow Meter PCE-HVAC 2
- 1 x Pitot tube (angled)
- 1 x USB cable
- 1 x Carrying case
- 1 x Software
- 2 x Connecting hose (85 cm each)
- 1 x 9 V block battery
- 1 x Instruction manual
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Air pressure | |
| Accuracy | ± 0.3% of reading at 25°C / 77°F |
| Repeatability | ± 0.2% (± 0.5% of reading) |
| Linearity / hysteresis | ± 0.29% of reading |
| Pressure range | 5000 Pa |
| Maximum pressure | 10 psi |
| Response time | Typically 0.5 seconds |
| Measuring range | 0.7252 psi 50.00 mbar 20.07 inH2O 509.8 mmH2O 5000 Pa |
| Resolution | 0.0001 psi 0.01 mbar 0.01 inH2O 0.1 mmH2O 1 Pa |
| Selectable units | Mbar, psi, inH2O, mmH2O, or Pa |
| Air speed | |
| Measuring range | 1 ... 80 m / s 200 ... 15733 ft / min 3.6 ... 288 km / h 2.24 ... 178.66 MPH 2 ... 154.6 knots |
| Resolution | 0.01 m / s 1 ft / min 0.1 km / h 0.01 MPH 0.1 knots |
| Accuracy | At m / s: ± 2.5% of measured value At ft / min, Km / h, MPH and Node: Depending on the air speed and the size of the air duct |
| Flow rate | |
| Measuring range | 0 ... 99999 m³ / min 0 ... 99999 ft³ / min |
| Resolution | 0.001 ... 100 m³ / min 0.0001 ... 100 ft³ / min |
| Temperature | |
| Measuring range | 0 ... 50°C / 32 ... 122°F |
| Resolution | 0.1°C / 0.18°F |
| Accuracy | ± 1°C / ± 1.8°F |
| General | |
| Diameter of pitot tube | 8 mm / 0.3 in |
| Length of measuring hoses | Each 85 cm / 33.46 in |
| Total length of the tube | 335 mm / 13.18 in |
| Low battery indicator | Yes |
| Power supply | 9V block battery |
| Operating conditions | 0 ... 50°C / 32 ... 122°F / <90% RH non-condensing |
| Storage conditions | -10 ... 60°C / 14 ... 140°F / <90% RH non-condensing |
| Internal memory | 99 measured values per parameter |
| Interface | USB |
| Display | LCD |
| Housing material | ABS plastic |
| Dimensions | Device: 206 x 95 x 45 mm / 8.11 x 3.7 x 1.7 in Pitot tube: 335 mm / 13.18 in - Ø 8 mm / 0.31 in |
| Weight (incl. pitot tube, battery and measuring hoses) | 600 g / 1.3 lbs |
