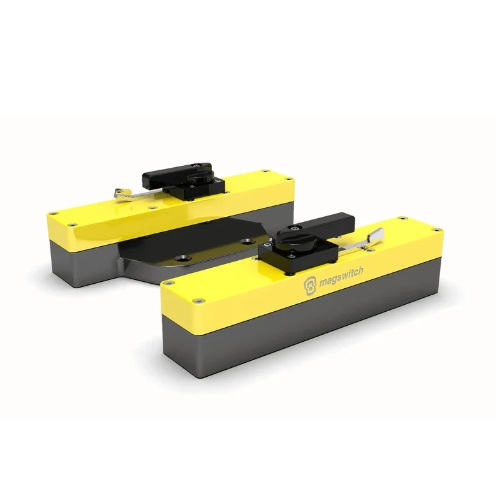

Magswitch 81001386 Power Feeder Mount
- Part #:81001386
- Condition:Brand New
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e){kind=small}
Free ShippingDescription
Power Feeder Mount
The Power Feeder Mount makes it fast and easy to position and lock a power feeder to a cast iron tool table top. The power feeder mount can be placed anywhere on a cast iron drill press table, and finely positioned until it is in place. Once in position, each of the 2 powerful switchable magnets lock the vise in place for the power feeding.
Features
- 2 ½" hole mounting pattern for medium to small power feeders
- Optional 4 magnet mounting plate with a 3 ½" by 4 ¼" for large power feeders
- Powerful magnets provide a solid grip for high torque power feeding operations
- Switchable magnets allow for rapid positioning and clamping for a more efficient power feeding
- Low profile design maximizes vertical drilling capacity
- Eliminates need to drill and tap into table tops to mount power feeders
⚠️ Attention CA Residents: Prop 65 Warning
- Specification Sheet
- You May Also Like
- Your Recently Viewed
- Reviews
Technical details
| Maximum Breakaway Force | 1737 lbs |
| Nominal Maximum Shear | 469 lbs |
| Full Saturation Thickness | 0.5 in |
| Overall Height (Max) | 2.84 in |
| Overall Length | 8.83 in |
| Overall Width | 8.52 in |
| Net Weight | 10.14 lbs |
