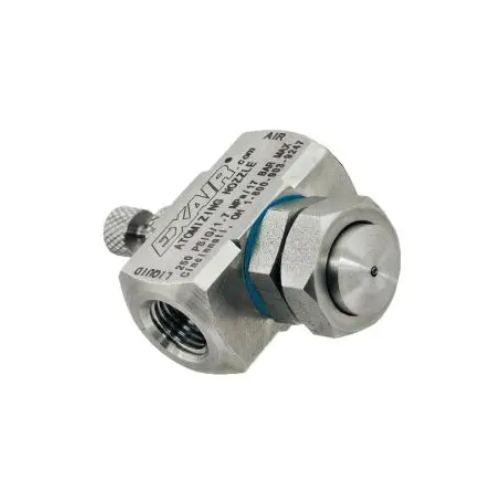

Exair SR1010SS Siphon Fed Round Atomizing Nozzle, 0.8 GPH, 1/4 FNPT

Features:

• EXAIR's 1/4 FNPT siphon fed round pattern nozzle is ideal where no liquid pressure is available and a thin coating is needed in a specific area.
• The flow rate is adjustable via an adjusting valve.
• The siphon nozzle works best with a suction height of 36" (914 mm) or less.
• Since the nozzle is siphon fed, the compressed airflow draws the liquid in and mixes it internally.
• Liquid flow depends on both gravity or suction height and airflow.
• The siphon fed round pattern nozzle provides the highest liquid flow of any siphon fed nozzle.
• Suitable for siphon or gravity fed, non-pressurized applications.
• Type 303 Stainless Steel - the EXAIR's Atomizing Nozzle is constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. It is designed for environments with a maximum operating temperature of 800°F (426°C).

Applications:

• Washing
• Rinsing
• Coating
• Cooling
• Quenching
• Wetting (moistening)
• Humidification
• Dust Control

Advantages:

• Fully adjustable
• Maximizes liquid dispersion
• Minimizes liquid consumption
• All stainless steel construction
• Compact
• Versatile
• Interchangeable liquid and air caps
• Minimizes air consumption
• Fine atomization
