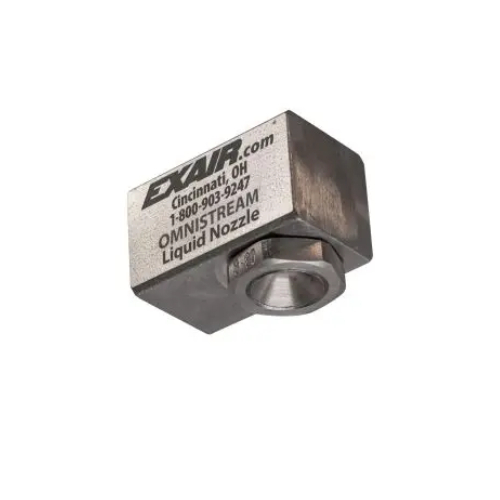

Exair FL3013SS OmniStream Cone Nozzle, 1.3 GPM, 3/8 NPT

Features:

• EXAIR's 3/8 NPT OmniStream Cone Nozzle, with a full cone spray pattern, is among the most common types of spray nozzles.
• The full cone spray nozzle is used to address cooling, cleaning, washing, rinsing, and dust suppression applications throughout industry.
• Its vaneless design creates wide open internal features that resist clogging and allow it to work well with liquids containing particulates.
• It produces a uniform distribution in a full cone round pattern.
• Its right-angle design is compact and operates at liquid pressures up to 250 PSI.
• It is commonly used with liquids such as water, rinse aids, or detergents, but is also effective with chemicals, pesticides, and herbicides.
• Adjustment of the liquid flow rate is achieved by varying liquid pressure.
• Type 303 Stainless Steel - the EXAIR's Liquid Atomizing Nozzle is constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. It is designed for environments with a maximum operating temperature of 800°F (426°C).

Applications:

• Cooling, coating
• Quenching
• Dust suppression
• Washing, rinsing
• Foam breaking
• Slurry spraying
• Sanitizing, degreasing
• Lubricating

Advantages:

• High liquid flow rates
• Increase surface area coverage
• Increase liquid volume on your target
• All stainless steel construction
• Compact footprint, versatile

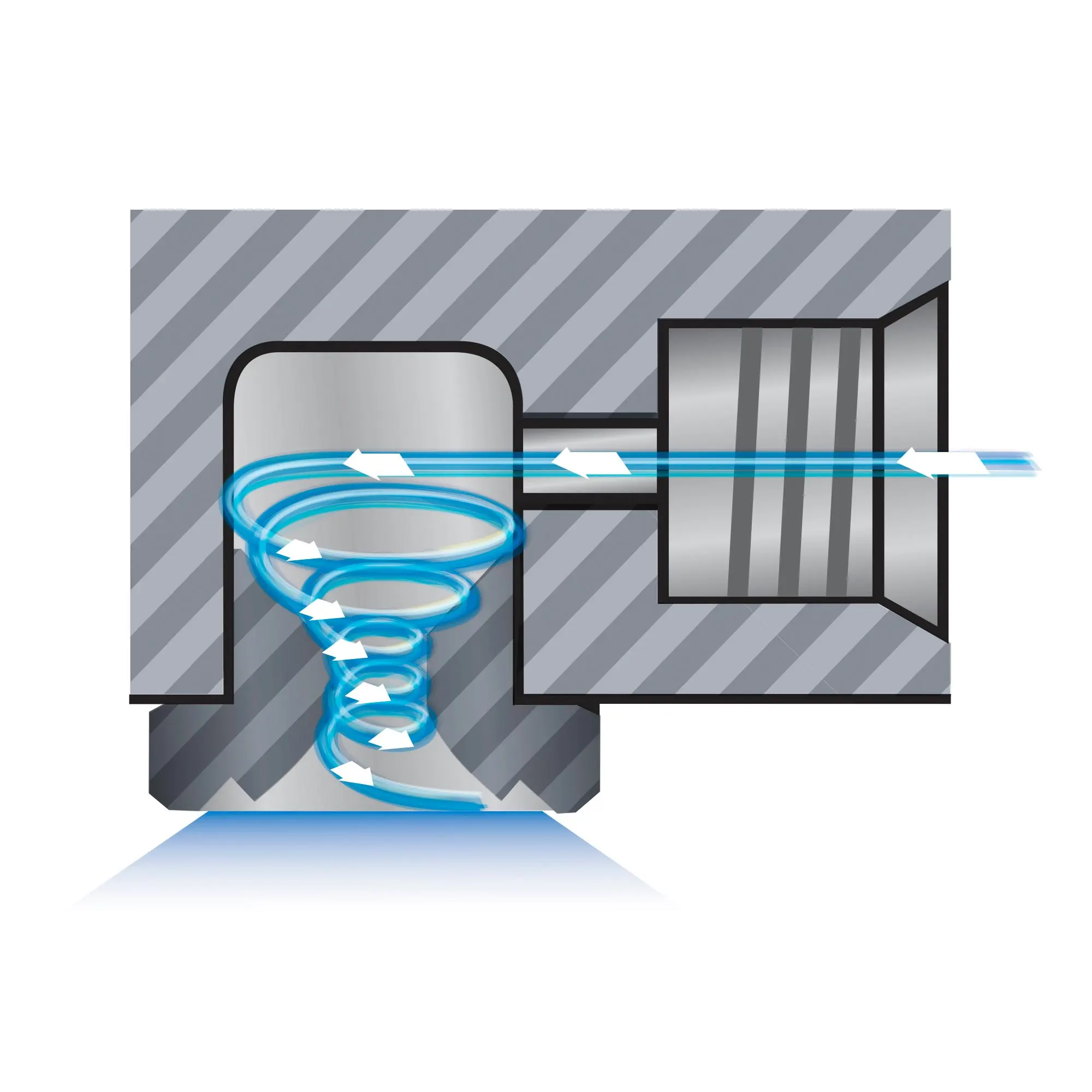

How It Work:

• With OmniStream Cone nozzles, the atomizing fluid is supplied into the body of the nozzle creating a swirling action within the vortex chamber.
• This vortex produces a full cone spray pattern when the precisely machined nozzle breaks the liquid surface tension as it exits the orifice at a controlled spray angle.
