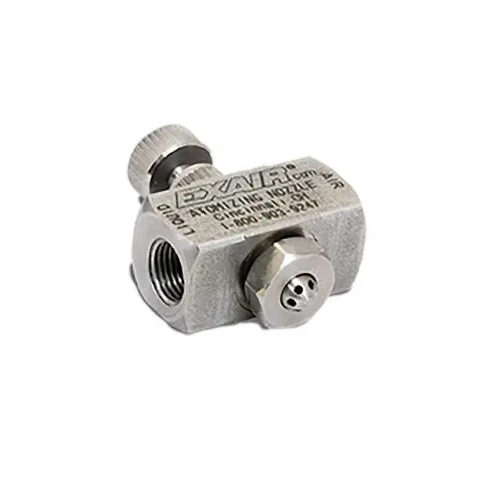

Exair AW8010SS Internal Mix Wide Angle Round Atomizing Nozzle, 2.60 GPH, 1/8 FNPT

Features:

• EXAIR's 1/8 FNPT internal mix wide angle round pattern atomizing nozzle is great for covering a broad area.
• It can be adjusted for a light mist or a heavy soaking spray.
• It is popular for dust mitigation, humidification, and cooling of products, people, or livestock in a broad area.
• This nozzle is also perfect for applying a coating to parts packed in a large container, for example, misting a container of stamped steel parts with oil to prevent oxidation during shipment.
• For pressure fed applications not requiring independent air and liquid control.
• Type 303 Stainless Steel - the EXAIR Atomizing Nozzle is constructed with Type 303 stainless steel, which can resist high temperatures and corrosive environments. It is designed for environments with a maximum operating temperature of 800°F (426°C).

Applications:

• Washing
• Rinsing
• Coating
• Cooling
• Quenching
• Wetting (moistening)
• Humidification
• Dust Control

Advantages:

• Fully adjustable
• Maximizes liquid dispersion
• Minimizes liquid consumption
• All stainless steel construction
• Compact
• Versatile
• Interchangeable liquid and air caps
• Minimizes air consumption
• Fine atomization
