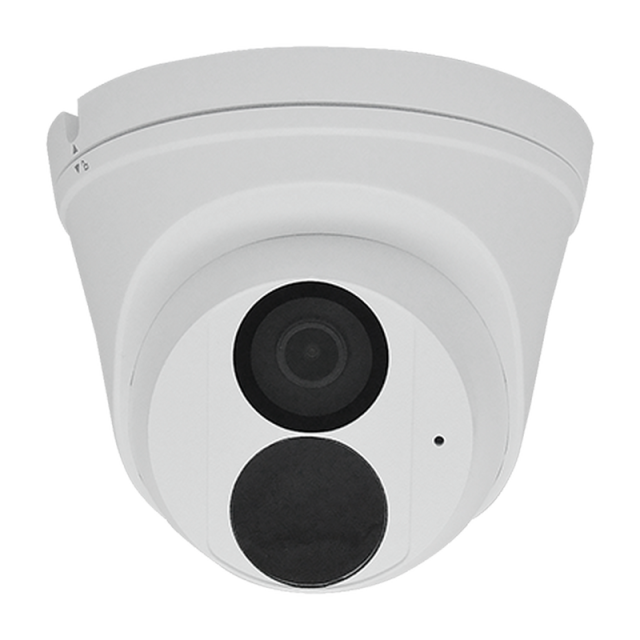

ACTi Z71 4MP Outdoor Dome Camera with D/N, Adaptive IR, Superior WDR, SLLS, Fixed Lens

  • Part #:Z71
  • Condition:Brand New
0 Reviews Write a Review
  • List Price: $372.00
    • $334.80 / Each
      You Save: 10.0%
  • Free Shipping logoFree Shipping
See product details
  • Technical details
  • Description
  • You May Also Like
  • Your Recently Viewed Items
  • Reviews
Technical details

Device

Product TypeDome
Maximum Resolution4MP
Application EnvironmentOutdoor
Image SensorProgressive Scan CMOS
Sensor Size1/3 "
Day / NightYes
Low Light SensitivitySuperior
Minimum IlluminationColor: 0.01 lux at F2.0 (AGC on); B/W: 0 lux at F2.0 (IR LED on)
Mechanical IR Cut FilterYes
IR LEDAdaptive IR LED (850 nm)
IR Working Distance40m
Electronic Shutter1-1/100000 second (manual mode); 1-1/100000 second (auto mode)
S/N Ratio56 dB

Lens

Focal LengthFixed focal, f2.8mm
ApertureF2.0
IrisFixed iris
FocusFixed focus
Lens MountBoard mount
Horizontal Viewing Angle94.7°
Vertical Viewing Angle53.1°
Viewing Angle AdjustmentPan: 0°-360°, Tilt: 0°-80°, Rotation: 0°-360°

Video

CompressionH.265, H.264 (Baseline/ Main profile), MJPEG
Maximum Frame Rate vs. Resolution30 fps at 2688 x 1520; 30 fps at 2560 x 1440; 30 fps at 2304 x 1296; 30 fps at 1920 x 1080; 30 fps at 1280 x 720; 30 fps at 704 x 576
Multi-StreamingSimultaneous triple streams
Bit Rate128Kbps - 16Mbps (per stream)
Wide Dynamic RangeSuperior WDR (120 dB)
Image EnhancementWhite Balance, Backlight compensation (BLC), Defogging
Digital Noise Reduction2D + 3D DNR
Privacy Mask4 configurable regions
Text OverlayYes
Built-in AnalyticsTampering Detection, Intrusion Detection (Forbidden Area Detection)
Image OrientationFlip, Mirror

Audio

Audio Type1-way, Built-in Microphone
Audio CompressionG.711

Network

Network Protocol & ServiceIPv4, TCP, UDP, DHCP, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, UPnP, TLS 1.2
Ethernet Port1 x Ethernet (10/100 Base-T), RJ-45 connector
SecurityIP address filtering, HTTPS encryption, Password protected user level

Event

Event TriggerVideo motion detection (4 regions), Sound detection
Event ResponseE-mail notification with snapshots, Upload snapshot to FTP server, Save video or snapshot to local storage

Integration

Edge RecordingSupport (integration with NVR by ONVIF Profile G)
ONVIF CompliantYes, Profile S, Profile G

Interface

Local StorageMicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only)
Operating ButtonNo

General

Power SourceDC 12V, PoE (IEEE802.3af)
Power Consumption5.5 W (DC)
Weight376g (0.83lb)
Dimensions(Dia. x H): 118mm x 97mm (4.6" x 3.8")
Environmental CasingWeatherproof (IP68), Vandal proof metal casing (IK10)
Operating Temperature-30°C ~ 50°C (-22°F ~ 122°F)
Operating Humidity10% - 95% RH
ApprovalsCE Class B, FCC Class B, IP68, IK10 (metal casing)
Warranty2 Year(s)
Comments* Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series.
