Technical details
Device

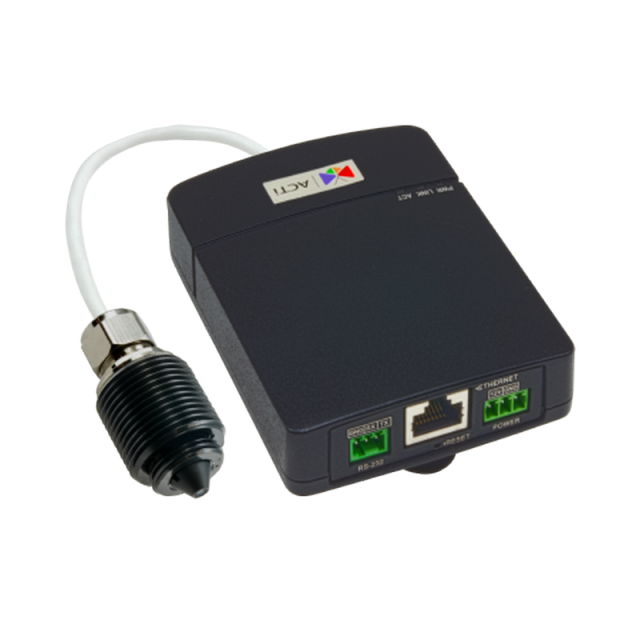

Product Type | Pinhole Covert |
Maximum Resolution | 5MP |
Application Environment | Indoor |
Image Sensor | Progressive Scan CMOS |
Sensor Size | 1/3.2 " |
Effective Pixels | 2592(H) X 1944(V) (5.04 MP) |
Day / Night | No |
Low Light Sensitivity | Standard |
Minimum Illumination | Color: 0.1 lux at F2.5 (30 IRE, 2400 K) |
Mechanical IR Cut Filter | No |
IR LED | No |
Horizontal Resolution (TV Lines) | 1350 TVL |
S/N Ratio | 52 dB |
Lens
Focal Length | Fixed focal, f3.7mm |
Aperture | F2.5 |
Iris | Fixed iris |
Focus | Fixed focus |
Lens Mount | RJ12 connector up to 12m from main unit |
Horizontal Viewing Angle | 70.2° |
Vertical Viewing Angle | 51.4° |
Video
Compression | H.264 (Baseline/ Main/ High profile), MJPEG |
Maximum Frame Rate vs. Resolution | 15 fps at 2592 x 1944, 15 fps at 2048 x 1536, 30 fps at 1920 x 1080, 30 fps at 1280 x 720, 30 fps at 800 x 600, 30 fps at 640 x 480, 15 fps at 320 x 240 |
Multi-Streaming | Simultaneous dual streams based on two configurations |
Bit Rate | 28Kbps - 6Mbps (per stream) |
Bit Rate Mode | Constant, Variable |
Wide Dynamic Range | Basic WDR (74 dB) |
Digital Noise Reduction | DNR |
Privacy Mask | 4 configurable regions |
On-Screen Graphics | Yes |
Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
Audio
Audio Type | 2-way, Mic-in, Line-in, Line-out |
Audio Compression | 8 kHz, 16 bit encoding, Mono, PCM, G.711 |
Network
Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
Ethernet Port | 1 x RJ-45 connector |
Security | IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
Event
Event Trigger | Video motion detection (3 regions), External device through digital input, Sound detection, |
Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video or snapshot to FTP server, Upload video to NVR server, Activate external device through digital output |
System
Watchdog | Support |
Integration
Unified Solution | Fully compatible with ACTi software |
GPS Position | Manual setting |
ONVIF Compliant | Yes, Profile S, Profile G, Profile T, Profile Q |
GB28181 Compliant | Yes |
Auto Firmware Upgrade | Yes |
Interface
Serial Port | 1 x RS-232 |
Local Storage | MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only) |
Digital Input/Output | 1/1 |
Operating Button | Reset Button |
General
Power Source | DC 12V, PoE Class 2 (IEEE802.3af) |
Power Consumption | 4.32 W (PoE) |
Weight | 583g (1.285lb) |
Dimensions | Main Unit (W x H x D): 75mm x 100.33mm x 30mm (3.0" x 4.0" x 1.2"), Lens Unit (Dia. x L): 26mm x 55.52mm (1.0" x 2.2") |
Environmental Casing | Vibration proof (EN50155) |
Mount Type | Bracket, Flush, Tiltable Flush Mount, Corner Mount |
Starting Temperature | -20°C ~ 50°C (-4°F ~ 122°F) |
Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
Approvals | CE Class B, FCC Class B, EAC, EN50121-3-2, EN50155, UL (for optional PoE injector and power adapter) |
Real-time Clock (RTC) | Yes |
Warranty | 3 Year(s). |
