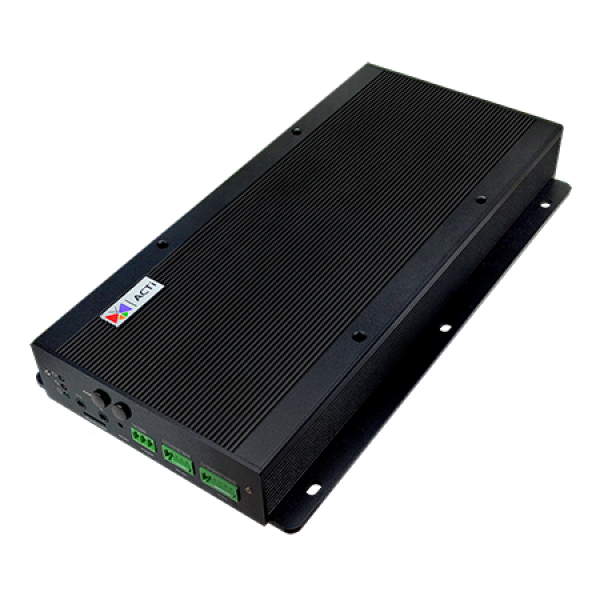

ACTi ECD-200 16-Channel Megapixel H.265 Video Decoder with RJ-45 Video Input

  • Part #:ECD-200
  • Condition:Brand New
0
Reviews Write a Review Questions & Answers
ACTi ECD-200 16-Channel Megapixel H.265 Video Decoder with RJ-45 Video Input
ACTi ECD-200 16-Channel Megapixel H.265 Video Decoder with RJ-45 Video Input
ACTi ECD-200 16-Channel Megapixel H.265 Video Decoder with RJ-45 Video Input
  • List Price: $2,783.00
  • $2,120.00 / Each
    You Save: 23.82%
  • Free Shipping logoFree Shipping
  • List Price: $2,783.00
  • $2,120.00 / Each
    You Save: 23.82%
  • Free Shipping logoFree Shipping
Typically In Stock
Check Availability
Quantity:
Description
See more product information Report an issue with this product
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
📈 Tariffs may impact pricing; subject to manufacturer updates.
  • You May Also Like
  • Your Recently Viewed
  • Reviews
  • Q&A
Technical details

Device

Product TypeVideo Decoder
Maximum ResolutionSupport all ACTi cameras in all resolutions
Product ApplicationVideo Decoding, Public Viewer
Maximum Number of Video Devices16
Maximum Number of ClientsLocal: 1, Remote: 2
Supported Screen ResolutionHDMI: 1080p, 4K2K; VGA: 1080p

Hardware

CPUHi3536
RAM4GB

License

License requiredNo
Free License16

Live View

Display Layout ModeCustom dynamic layouts by grid merging
Digital ZoomYes
Event StatusNetwork loss, Motion, DI

Map

e-MapYes*
Google MapYes*

PTZ

PTZ ControlPTZ Control

Video

CompressionH.265, H.264
Maximum Frame Rate vs. Resolution30 fps at 3840 x 2160; 30 fps at 1920 x 1080; 30 fps at 720 x 480; 25 fps at 720 x 576; 30 fps at 640 x 480

Audio

Audio Type2-way, Line-in, Line-out

Network

Network Protocol & ServiceTCP, UDP, IP, HTTP, HTTPS, DHCP, RTP, RTSP
Ethernet PortNon-PoE: 1 port(s), Ethernet (1000 Base-T), RJ-45 connector

Event

Event Trigger[Video Device]: Video motion detection, External device through digital input, Sound detection, Video loss, Video Recovery, Network loss and recovery, Intelligent event detection (ACTi IVS Cameras).;
Event ResponseShow event on local display, Play sound on HDMI display

System

Client PC Operating SystemWindows 10, Windows 8.1, Windows 7 SP1, Windows Server 2012 R2, Windows Server 2008 R2 SP1
Server Operating SystemEmbedded Linux
USB2-Port USB 3.0
LanguageMulti-Language

Integration

Unified SolutionFully compatible with ACTi cameras, encoders, central management system, TV wall and intelligent video surveillance software
ONVIF CompliantYes, Profile S
Web BrowserIE 11 (Please verify that your computer meets the minimum system requirements for Internet Explorer from Microsoft website.)

Storage

Storage BaySATA, Max. 1 Disk(s) (without storage disks, and the function will be available upon request)
HDD Size2.5"

Interface

HDMI Output1, HDMI Type A
Serial Port1 x RS-232
Wirelessmini-PCIe slot x 1 for optional Wireless modules such as Wi-Fi (IEEE 802.11b/g/n)
Local StorageMicroSDHC, MicroSDXC memory card slot (card not included)
Digital Input/Output2/2 (Terminal block)
Local AccessUSB keyboard & mouse
Local Display InterfaceHDMI x 1, VGA x 1,

General

Power SourceDC 12V
Power Consumption9.6 W (DC)
Weight1086g (2.394lb)
Dimensions(W x H x D): 135mm x 32.5mm x 245mm (5.3" x 1.3" x 9.6")
Bundled AccessoriesPole Mount, Power Adapter
Mount TypeSurface, Pole, VESA mount 10x10
Operating Temperature0°C ~ 40°C (32°F ~ 104°F)
Operating Humidity10% - 85% RH
Remote AccessWeb Client
ApprovalsCE, FCC, UL (for bundled power adapter)
Warranty3 Year(s)
