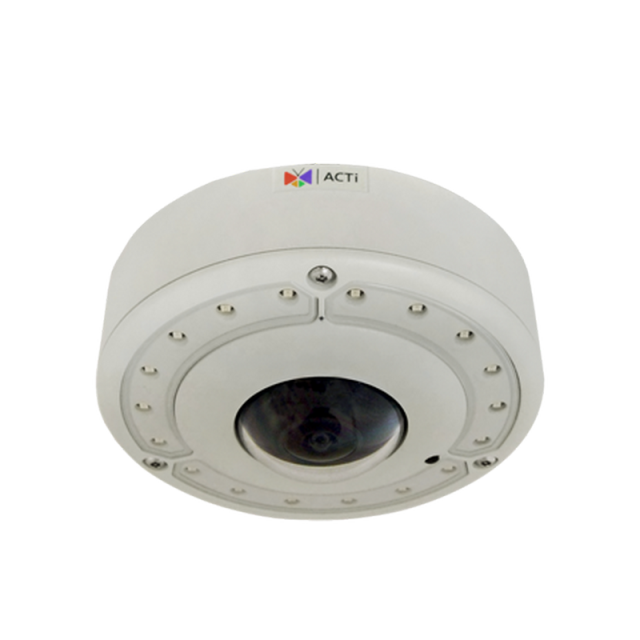

ACTi B78 12MP Video Analytics Outdoor Hemispheric Dome Camera with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed Lens, H.265/H.264

  • Part #:B78
  • Condition:Brand New
0
Reviews Write a Review Questions & Answers
ACTi B78 12MP Video Analytics Outdoor Hemispheric Dome Camera with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed Lens, H.265/H.264
ACTi B78 12MP Video Analytics Outdoor Hemispheric Dome Camera with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed Lens, H.265/H.264
ACTi B78 12MP Video Analytics Outdoor Hemispheric Dome Camera with D/N, Adaptive IR, Extreme WDR, SLLS, Fixed Lens, H.265/H.264

Contact Us For Pricing

Contact Us
Check Availability
Quantity:
Description
See more product information Report an issue with this product
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.govWARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov
📈 Tariffs may impact pricing; subject to manufacturer updates.
  • You May Also Like
  • Your Recently Viewed
  • Reviews
  • Q&A
Technical details

Device

Product TypeHemispheric Dome
Maximum Resolution12MP
Application EnvironmentOutdoor
Image SensorProgressive Scan CMOS
Sensor Size1/1.7 "
Effective Pixels4072(H) X 3046(V) (12.4 MP)
Day / NightYes
Low Light SensitivitySuperior
Minimum IlluminationColor: 0.15 lux; B/W: 0 lux (IR LED on)
Color to B/W SwitchISP based switch, configurable
Mechanical IR Cut FilterYes
IR LEDAdaptive IR LED
IR Working Distance10m
Electronic Shutter1/5-1/64000 second (manual mode); 1/5-1/64000 second (auto mode)
Horizontal Resolution (TV Lines)3000 TVL

Lens

Focal LengthFixed focal, f1.65mm
ApertureF2.8
IrisFixed iris
FocusFixed focus
Lens MountBoard mount
Horizontal Viewing Angle198.5° (overview area); 121.1° (high detail area)
Viewing Angle AdjustmentRotation: -175°-175°

Video

CompressionH.265, H.264 (Baseline/ Main/ High profile), MJPEG
Maximum Frame Rate vs. Resolution(Fisheye View); 30 fps at 3000 x 3000; 30 fps at 2048 x 2048; 30 fps at 1024 x 1024; 30 fps at 640 x 640; (Dewarped View); 30 fps at 4096 x 2160 (4K Ultra HD); 30 fps at 3840 x 2160 (4K Ultra HD); 30 fps at 1920 x 1080; 30 fps at 1280 x 960; 30 fps at 1280 x 720; 30 fps at 800 x 600; 30 fps at 640 x 480; (ePTZ View); 30 fps at 800 x 600; 30 fps at 640 x 480
View ModeFisheye View; Dewarped View; 270-degree Corner View; Multiple View; ePTZ View
Multi-StreamingSimultaneous triple streams based on three configurations
Bit Rate128Kbps - 12Mbps (per stream)
Bit Rate ModeConstant, Variable
Wide Dynamic RangeExtreme WDR (130 dB)
Image EnhancementWhite Balance, Brightness, Contrast, Sharpness, Automatic gain control, Flickerless, Digital Image Stabilizer (DIS, EIS), Defogging
Digital Noise Reduction2D + 3D DNR
Privacy MaskYes, 4 configurable regions
Text OverlayYes
On-Screen GraphicsYes
Built-in AnalyticsTampering Detection
Server-based AnalyticsObject Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy)
Image OrientationFlip, Mirror

Audio

Audio Type2-way, Built-in Microphone, Mic-in, Line-in, Line-out
Audio CompressionG.711 u-law

Network

Network Protocol & ServiceIPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, IGMP, ICMP, ARP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X
Ethernet Port1 x RJ-45 connector
SecurityIP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control

Video Analytics

Analysis Source TypeVideo
Metadata AccuracyStandard

Event

Event TriggerVideo motion detection (3 regions), External device through digital input, Sound detection, Tampering detection, Video streams loss
Event ResponseNotify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Play the audio file, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server, Activate external device through digital output

System

WatchdogSupport

Integration

Unified SolutionFully compatible with ACTi software
Software Development KitYes
GPS PositionManual setting
Edge RecordingSupport (integration with NVR by ONVIF Profile G or proprietary protocol)*
ONVIF CompliantYes, Profile S, Profile G, Profile T, Profile Q
Web BrowserIE 11
Auto Firmware UpgradeYes

Interface

Audio Interface1/1, Terminal block, Built-in microphone
Analog Video Output1 x CVBS, Terminal block
Local StorageMicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only)
Digital Input/Output1/1 (Terminal block), DC Output Voltage: 5V
Operating ButtonReset Button

General

Power SourceDC 12V, PoE Class 3 (IEEE802.3af)
Power Consumption12.95 W (PoE)
Weight954g (2.103lb)
Dimensions(Dia. x H): 152.00mm x 71.00mm (6.0" x 2.8")
Environmental CasingWeatherproof (IP68), Vandal proof (IK10)
Mount TypeSurface, Rough Surface, Gang Box, Pendant, Tilted Mount, Wall Mount, Pole Mount, Corner Mount
Starting Temperature-20°C ~ 50°C (-4°F ~ 122°F)
Operating Temperature-40°C ~ 50°C (-40°F ~ 122°F)
ApprovalsCE, FCC, IP68, NEMA 4X, IK10
Real-time Clock (RTC)Yes
Warranty3 Year(s).
Comments* Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series.
