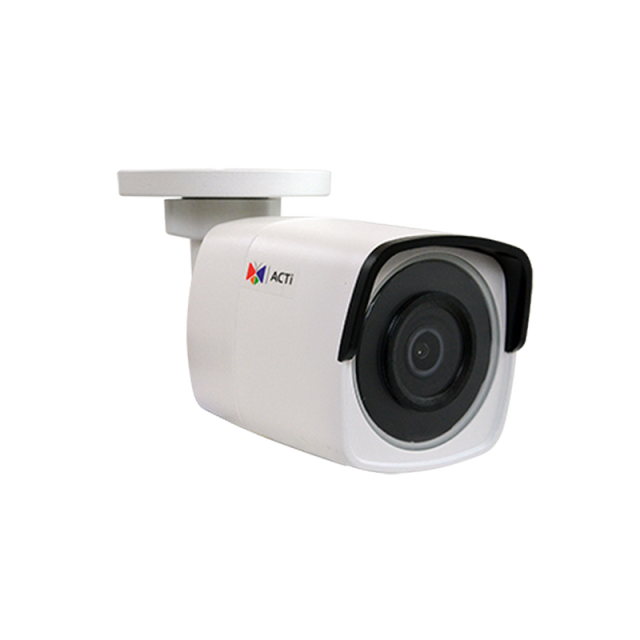

ACTi A310 4MP Mini Bullet Camera with D/N, IR, Extreme WDR, SLLS, Fixed Lens
- Part #:A310
- Condition:Brand New
Description
4MP Mini Bullet with D/N, IR, Extreme WDR, SLLS, Fixed lens, f2.8mm/F1.6 (HOV:101.3°), H.265/H.264, 1080p/30fps, 2D+3D DNR, MicroSD/MicroSDHC/MicroSDXC, PoE/DC12V, IP68, IK10 (metal casing)
- 4 Megapixel
- Day & Night with Superior Low Light Sensitivity and IR LED
- Fixed Lens with f2.8mm/F1.6
- Extreme WDR
- H.265 Compression
- Super wide angle
- Event trigger, response and notification
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
Device
| Product Type | Mini Bullet |
| Maximum Resolution | 4MP |
| Application Environment | Outdoor |
| Image Sensor | Progressive Scan CMOS |
| Sensor Size | 1/2.7 " |
| Day / Night | Yes |
| Low Light Sensitivity | Superior |
| Minimum Illumination | Color: 0.018 lux; B/W: 0 lux (IR LED on) |
| Color to B/W Switch | ISP based switch, configurable |
| Mechanical IR Cut Filter | Yes |
| IR LED | IR LED (850 nm) |
| IR Working Distance | 65m (1.0 lux) |
| Electronic Shutter | 1/30-1/100000 second (auto mode) |
| S/N Ratio | 52 dB |
Lens
| Focal Length | Fixed focal, f2.8mm |
| Aperture | F1.6 |
| Iris | Fixed iris |
| Focus | Fixed focus |
| Lens Mount | Board mount |
| Horizontal Viewing Angle | 101.3° |
| Vertical Viewing Angle | 55.3° |
Video
| Compression | H.265, H.264 (Main/ High profile), MJPEG |
| Maximum Frame Rate vs. Resolution | 30 fps at 2688 x 1520; 30 fps at 2560 x 1440; 30 fps at 1920 x 1080; 30 fps at 1280 x 960; 30 fps at 1280 x 720; 30 fps at 640 x 480 |
| Multi-Streaming | Simultaneous quad streams |
| Bit Rate | 128Kbps - 12Mbps (per stream) |
| Bit Rate Mode | Constant, Variable |
| Wide Dynamic Range | Extreme WDR (150 dB) |
| Image Enhancement | White Balance, Backlight compensation (BLC), Brightness, Contrast, Sharpness, Automatic gain control |
| Digital Noise Reduction | 2D + 3D DNR |
| Privacy Mask | 4 configurable regions |
| Text Overlay | Yes |
| Built-in Analytics | Tampering Detection, Face Detection, Object Line Crossing Detection, Object Enter Area Detection |
| Server-based Analytics | Object Line Counting, People Counting, Face Detection, Object Based Motion Detection, Tamper, Object Line Crossing Detection, Object Enter Area Detection, Missing Object Detection, Unattended Object Detection, Smoke Detection, Heat Map, Dwell Time, Direction Detection, Automatic License Plate Recognition, People Queue Detection, (Require PC-based or standalone IVS or ALPR Server. Contact ACTi support for recommendations on how to maximize analytical accuracy) |
| Image Orientation | Flip, Mirror, Rotation (Corridor mode) |
Audio
Network
| Network Protocol & Service | IPv4/v6, TCP, UDP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, NTP, RTP, RTSP, RTCP, SMTP, FTP, SFTP, IGMP, ICMP, Bonjour, UPnP, QoS, SNMP, IEEE 802.1X |
| Ethernet Port | 1, Ethernet (10/100 Base-T), RJ-45 pigtail connector |
| Security | IP address filtering, HTTPS encryption, Password protected user level, Anonymous login, IEEE 802.1X network access control |
Event
| Event Trigger | Video motion detection (10 included and excluded polygonal regions), Intelligent event detection, Video streams loss, System log buffer overrun, Remove system log, Logon events (Login Failure, Login Success, Block an Account) |
| Event Response | Notify control center, Change camera settings, Command other devices, E-mail notification with snapshots, Push notification to mobile device, Save video to local storage, Upload video to NVR server, Upload video or snapshot to FTP server |
System
| System Log | Support |
| Watchdog | Support |
Integration
| Unified Solution | Fully compatible with ACTi software |
| GPS Position | Manual setting |
| Edge Recording | Support (integration with NVR by ONVIF Profile G or proprietary protocol)** |
| ONVIF Compliant | Yes, Profile S, Profile G, Profile T |
| GB28181 Compliant | Yes |
| Web Browser | IE 11, Google Chrome*, Microsoft Edge*, Apple Safari* |
| Auto Firmware Upgrade | Yes |
Interface
| Local Storage | MicroSD, MicroSDHC, MicroSDXC Memory Card Slot (card not included, up to 256GB, Kingston or Sandisk only) |
| Operating Button | Reset Button |
General
| Power Source | DC 12V, PoE Class 3 (IEEE802.3af) |
| Power Consumption | 6 W (DC), 7.5 W (PoE) |
| Weight | 474g (1.045lb) |
| Dimensions | (W x H x D): 65.6mm x 65.6mm x 153.7mm (2.58" x 2.58" x 6.05") |
| Environmental Casing | Weatherproof (IP68), Vandal proof metal casing (IK10) |
| Bundled Accessories | Integrated bracket |
| Operating Temperature | -30°C ~ 60°C (-22°F ~ 140°F) |
| Operating Humidity | 10% - 95% RH |
| Approvals | CE Class B, FCC Class B, EAC, IP68, NEMA 4X, IK10 (metal casing) |
| Warranty | 3 Year(s) |
| Comments | * cross-browser compatibility: Not available for H.265 video decoding; ** Edge Recording function is integrated with NVR 3 Corporate / NVR 3 Business / INR / GNR series. |
