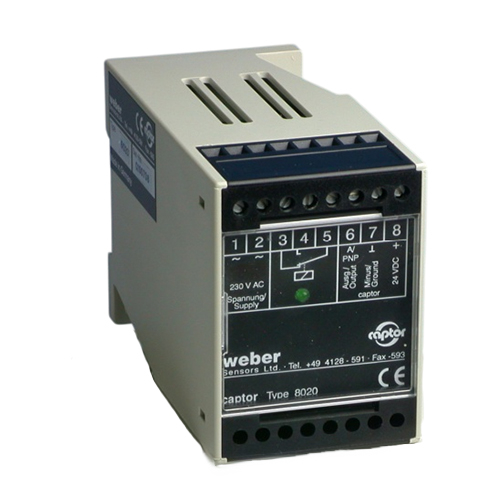

Weber Sensors 8020 Power Supply Unit with Sensor Output PNP or Analogue, 110VAC Supply
- Part #:8020
- Condition:Brand New
- List Price: $488.07
- $476.83 / EachYou Save: 2.3%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $488.07
- $476.83 / EachYou Save: 2.3%
- Free Shipping
Description
The supply unit allow for the operation of 24 VDC sensors, such as vent- and flow-captors, with AC supply voltage. Tue supply unit contains a 24 VDC transformer rectifier and a switching circuit with output relay with potential free single pole double throw switching contact. An integrated LED plays the actual switching situation
Features:
- Clamp housing for standard bar as per DIN 46277 and DIN EN 50022 for the installation in switch cabinets or similar.
- For PNP-switching sensors or sensors with analog output signal.
- On connection of an analog signal to the input of the supply unit a switch signal is activated which controls an integrated relay when a fixed threshold of 50% of the max. input signal is reached.
- This provides the possibility, when connecting flow· and vent-captors with adiustable measuring range, to vary the switching point on a large scale; e.g„ for the flow-captor 4114.30 related to water at Flow velocity between 10 cm/s and 100 cm/s, resp. for the vent·captor 3202. 30 related to air between 50 cm/s and 15 m/s
⚠️ Attention CA Residents: Prop 65 Warning
- Specification Sheet
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| Technical data | |
| Sensor output | PNP or analoque |
| Connecting data | |
| Supply | 24 VDC, max. 120 mA, short circuit detected |
| Signal input | Ri approx. 500 Ω, Ie limited to 15 mA threshold switch 15 mA, hysteresis ± 0.8 mA |
| Contact data of relay | |
| Switching voltage max. | 30 VDC / 240 VAC |
| Switching current max. | 2.5 A AC/DC |
| Mechanical data | |
| Protection standard | clamp housing IP 40 |
| Sizes (l x w x h) und Mass | clamp housing: (55x75x110) mm, 350g |
Specification Sheet
