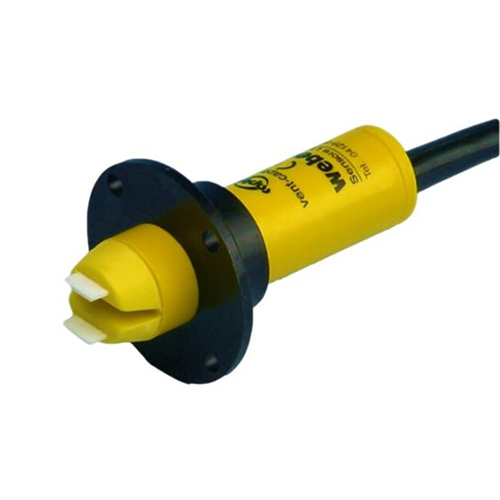

Weber Sensors 3201.51 Vent-Captor Flow Monitor for Gaseous Media, 110 VAC, Two Meter Oilflex Cable, Switching Range 1 to 10 m/sec Normal Open, AC Thyristor Output
- Part #:3201.51
- Model #:Vent-Captor
- Condition:Brand New
- List Price: $592.90
- $573.10 / EachYou Save: 3.34%
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e)
Free Shipping
- List Price: $592.90
- $573.10 / EachYou Save: 3.34%
- Free Shipping
Description
The vent-captor is an air flow monitor which is used where air and other gases in industrial processes need to be monitored. The compact, electronic sensor works according to the calorimetric measuring principle and without mechanically moving parts. It detects the flow velocity of the medium and converts it into an electrical signal.
Features:
- small compact unit
- adjustable switching point
- temperature independent
- robust construction (fully resin encapsulated)
- ISO 9001:2015
⚠️ Attention CA Residents: Prop 65 Warning
- Specification Sheet
- Manuals/Tutorials
- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
Technical details
| Medium | gaseous |
| Sensor data | |
| Switching range | 1 m/s to 10 m/s, continuously adjustable |
| Factory setting | < 4 m/s |
| Medium temperature | -20 °C to +70 °C |
| Ambient temperature | -20 °C to +70 °C |
| Pressure | atmospheric |
| Switching delay | min. 3 sec. / max. 100 sec. depends on set-point adjustment |
| Temperature drift | < 0.5 % per Kelvin |
| Repeatability | < 3 % |
| Hysteresis | < 30 % |
| Mechanical data | |
| Protection class | IP 64 |
| Material sensor probe | ceramic |
| Material housing | Ultradur (PBTP) |
| Mounting accessories | flange |
| Electrical connection | 2 m moulded oilflex cable / 3 x 0.5 mm2 |
| Electrical data | |
| Electrical output without flow: | Thyristor Normally Open, currentless |
| Operating voltage | 110VAC |
| Switching current | 5 - 200 mA |
| Switch-on jumper | max. 90 sec. |
