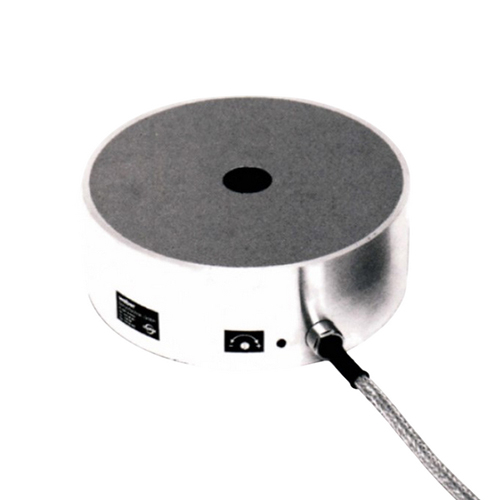

Weber Sensors 2090.15 Proxi-Captor Proximity Switch with 90 mm Switching Distance, with Submersible Sealed Potentiometer, 2 Meter Oil Flex Cable, 24 VDC

The Proxi-captor: A Rugged Inductive Proximity Switch for Harsh Industrial Environments

This Proxi-captor is a rugged, inductive proximity switch specifically conceived for installation in demanding, harsh industrial environments. A key design feature is its simple nylon Allen bolt mounting, which protects the unit from serious mechanical damage in the event of a collision by breaking cleanly.

Engineered for heavy industrial applications, the Proxi-captor is fully resin encapsulated and constructed from durable materials. Its high-frequency oscillator is detuned when a metal component approaches, which subsequently drives a switching stage via a trigger amplifier to deliver a reliable switching signal.

Features:

• compact and remote
• self-adjusting and adjustable proximity switches
• fully encapsulated
• no moving parts
• rugged aluminium housings
• ISO 9001:2015

This inductive proximity switch is ideal for contactless switching tasks in heavy industry where switching distances may vary, high switching frequencies occur, large sensing distances are concerned, or high repeatability is required. It offers simple installation with a center fixing bolt, an adjustable switching range, and is short-circuit protected, featuring fully encapsulated electronics.
