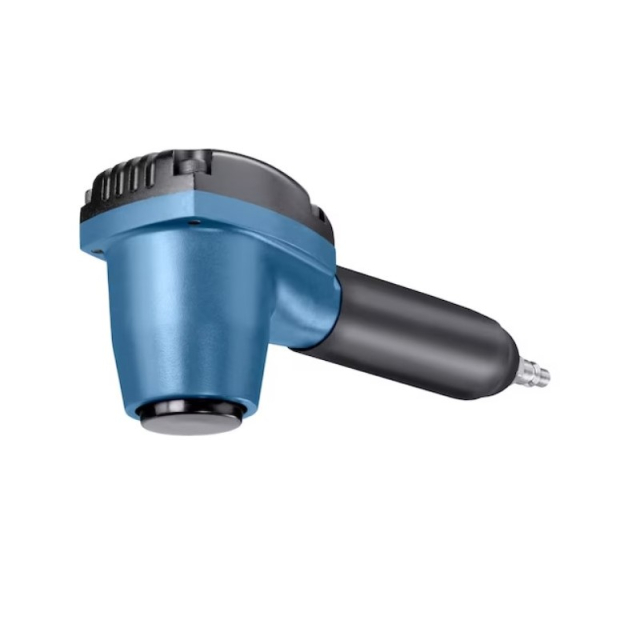

Trumpf 2782209 TruTool PS 100 Pneumatic Part Separator for Nanojoint and Microjoint Connections

Key Facts

• Pneumatic part separator designed for separating laser-cut sheet metal parts from scrap skeletons
• Suitable for nanojoint and microjoint connections up to 0.472 inch
• Designed to vibrate the sheet metal composite using impact pulses so parts detach from the skeleton
• Can help remove small laser-cut parts faster than manual removal methods
• Compact design supports comfortable handheld operation
• Multiple holding positions at the machine head and handle help reduce operator fatigue
• Rubberized hammer tip helps reduce tilting and damage during part removal

Overview

The Trumpf 2782209 TruTool PS 100 Part Separator is a pneumatic tool designed to remove laser-cut sheet metal parts from the surrounding scrap skeleton. It works by applying impact pulses that vibrate the sheet metal composite, helping nanojoint and microjoint connections release quickly and cleanly.

This part separator is intended for use in sheet metal fabrication environments where small cut parts need to be removed efficiently after laser cutting. The TruTool PS 100 is especially useful for nanojoint separation and can also be used for microjoint connections up to 0.472 inch.

Its compact, ergonomic design allows the operator to guide the tool from either the machine head or the handle. This provides more flexibility during repetitive work and helps support a more comfortable operating position.

Features

• Designed for removing laser-cut small parts from the scrap skeleton
• Supports separation of nanojoint and microjoint connections
• Separates connections up to 0.472 inch
• Impact pulse action helps detach parts from the sheet metal composite
• Can be faster than manual part removal depending on application and material conditions
• Ergonomic handling with guidance possible at the machine head and handle
• Multiple holding positions help avoid remaining in one fixed position during operation
• Rubberized hammer tip helps reduce tilting and surface damage during removal
• Compact pneumatic design for production and fabrication use

Technical Specifications

• Brand: Trumpf
• Part Number: 2782209
• Model: TruTool PS 100
• Tool Type: Pneumatic Part Separator
• Connection Type: Nanojoint and Microjoint Connections
• Maximum Connection Separation Capacity: Up to 0.472 inch
• Application: Laser-cut sheet metal part removal
• Operation Type: Pneumatic impact pulse separation
• Machine Style: Handheld

Applications

• Removing laser-cut parts from scrap skeletons
• Separating nanojoint connections in sheet metal fabrication
• Separating microjoint connections after laser cutting
• Production environments requiring repeated small-part removal
• Metal fabrication shops and laser cutting operations
• Post-processing of sheet metal components

What's Included

• Trumpf TruTool PS 100 Part Separator
• Compressed air connection ISO, integrated
• Compressed air connection ARO
• Standard hammer insert, integrated
• Allen key DIN 911-5
• Allen key DIN 911-6

Category FAQs

What is the Trumpf TruTool PS 100 used for?

The TruTool PS 100 is used to remove laser-cut sheet metal parts from the surrounding scrap skeleton by separating nanojoint and microjoint connections.

How does the TruTool PS 100 separate parts?

The tool uses pneumatic impact pulses to vibrate the sheet metal composite, helping the cut part detach from the scrap skeleton.

Can this tool separate nanojoint connections?

Yes. The TruTool PS 100 is designed as a practical solution for separating nanojoint connections.

Can it also be used for microjoint connections?

Yes. The tool can also be used for microjoint connections up to 0.472 inch.

Is the TruTool PS 100 manually operated?

Yes. It is a handheld pneumatic tool designed for operator-guided part separation.

Why use a pneumatic part separator instead of manual removal?

A pneumatic part separator can help speed up part removal, reduce manual effort, and improve consistency when removing small laser-cut parts from a scrap skeleton.

Does the tool help reduce damage during removal?

The rubberized hammer tip is designed to help reduce tilting and damage during part removal.

What connections are included?

The listed scope of delivery includes an integrated ISO compressed air connection and an ARO compressed air connection.

Is the tool designed for ergonomic use?

Yes. The compact design and multiple holding positions at the machine head and handle help support more comfortable operation during repeated use.

What industries commonly use this type of tool?

This type of part separator is commonly used in sheet metal fabrication, laser cutting, manufacturing, and metalworking operations.
