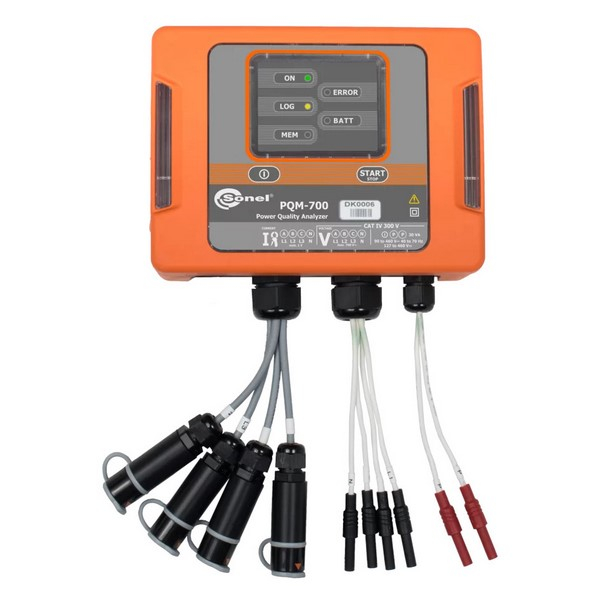

Sonel WMUSPQM700 PQM-700 Power Quality Analyzer
- Part #:WMUSPQM700
- Condition:Brand New
See product details
%20Copyright%202023%20Fonticons,%20Inc.%20--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048V96H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20272c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2048c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20240c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64%2016c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016H64%20208c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64V416c0%2053%2043%2096%2096%2096s96-43%2096-96H384c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V288%20256%20237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48H112zM544%20237.3V256H416V160h50.7L544%20237.3zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96zm272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201%20-96%200z'/%3e%3c/svg%3e){kind=small}
Free Shipping- Technical details
- Description
- You May Also Like
- Your Recently Viewed Items
- Reviews
Technical details
| Parameter | Measuring range | Max. resolution | Accuracy | |
|---|---|---|---|---|
| Alternating voltage (TRMS) | - | 0.0 ... 760.0 V | 4 significant digits | ±0.5% Unom |
| Crest Factor | Voltage | 1.00 ... 10.00 (≤1.65 for 690 V voltage | 0.01 | ±5% |
| Crest Factor | Current | 1.00 ... 10.00 (≤3.6 dla Inom) | 0.01 | ±5% |
| Alternating current (TRMS) | - | depending on clamp* | 4 significant digits | ±0.2% Inom(error does not account for clamp error) |
| Frequency | - | 40.00...70.00 Hz | 0.01 Hz | ±0.05 Hz |
| Active, reactive, apparent and distortion power | - | depending on configuration (transducers, clamps) | 4 significant digits | depending on configuration (transducers, clamps) |
| Active, reactive and apparent energy | - | depending on configuration (transducers, clamps) | 4 significant digits | as power error |
| cosφ and power factor (PF) | - | 0.00...1.00 | 0.01 | ±0.03 |
| tgφ | - | 0,00...10,00 | 0.01 | depends on error of active and reactive power |
| Harmonics | Voltage | DC, 1...40 | as for alternating voltage True RMS | ±0,15% Unomfor m.v. < 3% Unom |
| ±5% m.v. for m.v. ≥ 3% Unom | None | None | None | None |
| Harmonics | Current | DC, 1...40 | as for alternating current True RMS | ±0.5% Inomfor m.v. < 10% Inom |
| ±5% m.v. for m.v. ≥ 10% Inom | None | None | None | None |
| THD | Voltage and current | 0.0..100.0% (relative to RMS value) | 0.1% | ±5% |
| Flicker index | - | 0.40...10.00 | 0.01 | ±10% |
| Unbalance factor | Voltage and current | 0.0...10.0% | 0.1% | ±0.3% (absolute error) |
