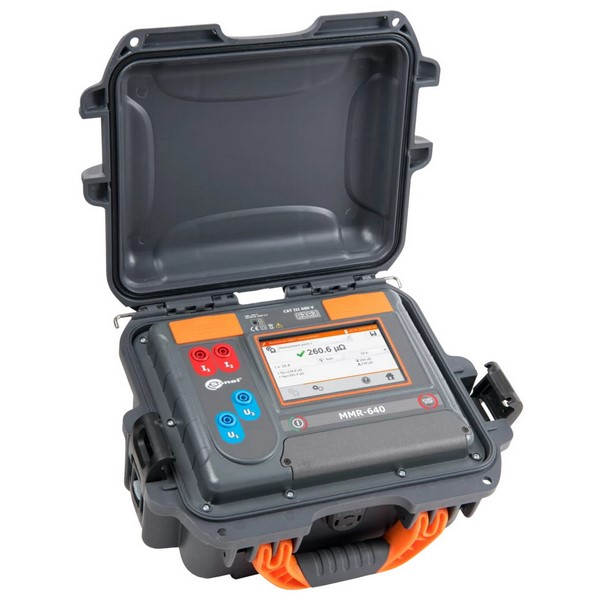

Sonel WMUSMMR640 MMR-640 Microohmmeter
- Part #:WMUSMMR640
- Condition:Brand New
%20Copyright%202023%20Fonticons,%20Inc.--%3e%3cpath%20fill='%230F615A'%20d='M112%200C85.5%200%2064%2021.5%2064%2048v48H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h256c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H48c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H16c-8.8%200-16%207.2-16%2016s7.2%2016%2016%2016h192c8.8%200%2016%207.2%2016%2016s-7.2%2016-16%2016H64v128c0%2053%2043%2096%2096%2096s96-43%2096-96h128c0%2053%2043%2096%2096%2096s96-43%2096-96h32c17.7%200%2032-14.3%2032-32s-14.3-32-32-32V237.3c0-17-6.7-33.3-18.7-45.3L512%20114.7c-12-12-28.3-18.7-45.3-18.7H416V48c0-26.5-21.5-48-48-48zm432%20237.3V256H416v-96h50.7zM160%20368a48%2048%200%201%201%200%2096%2048%2048%200%201%201%200-96m272%2048a48%2048%200%201%201%2096%200%2048%2048%200%201%201-96%200'/%3e%3c/svg%3e){kind=small}
Free ShippingLow resistance within range
Product features
- measurement of very low resistance
- high immunity to disturbances
- easy operation
- big touchscreen
- automatic measurement mode
- autoranging
Application
The MMR-640 meter is designed to measure very low resistance of resistive objects. This product is made to be used in power plants, railways and maintenance companies to measure resistance of:
- breakers, contacts,
- earthing conductors, equipotential bondings,
- welded and soldered connections,
- bolted connections,
- and other resistive objects. MMR-640 can be also utilized on production lines (eg. at the final production control stage).
Device capabilities
The MMR-640 meter provides an innovative combination of a high-performance measuring device with a modern user interface and advanced data management system.
Durable and practical casing
In response to the customers needs the MMR-640 has been designed to operate in difficult environmental conditions. A unique casing with the IP67 ingress protection rating ensures that the device is both waterproof and dustproof.
Easy readout
The MMR-640 meter is equipped with a readable color touchscreen that, due to its 800 x 480 pixel resolution, provides both high comfort of interacting with the interface and high readability of the measurement results.
Includes:
- Doble-wire test lead 3 m CAT III/1000V CAT IV/600V (12 A / 32 A) U1/I1
- Doble-wire test lead 3 m CAT III/1000V CAT IV/600V (12 A / 32 A) U2/I2
- Li-ion battery 7.2 V
- Carrying case
- Kelvin clamp, 1 kV, 25 A
- USB cable
WARNING: Cancer and Reproductive Harm www.P65Warnings.ca.gov- You May Also Like
- Your Recently Viewed
- Reviews
- Q&A
| Range | Resolution | Test current | Accuracy |
|---|---|---|---|
| 0...999.9 uΩ | 0.1 uΩ | 10 A | ±(0.25% m.v. + 2 digits) |
| 1.0000...1.9999 mΩ | 0.0001 mΩ | 10 A | ±(0.25% m.v. + 2 digits) |
| 2.000...19.999 mΩ | 0.001 mΩ | 10 A | ±(0.25% m.v. + 2 digits) |
| 20.00...199.99 mΩ | 0.01 mΩ | 10 A / 1 A | ±(0.25% m.v. + 2 digits) |
| 200.0...999.9 mΩ | 0.1 mΩ | 1 A / 0.1 A | ±(0.25% m.v. + 2 digits) |
| 1.0000...1.9999 Ω | 0.0001 Ω | 1 A / 0.1 A | ±(0.25% m.v. + 2 digits) |
| 2.000...19.999 Ω | 0.001 Ω | 0.1 A | ±(0.25% m.v. + 2 digits) |
| 20.00...199.99 Ω | 0.01 Ω | 10 mA | ±(0.25% m.v. + 2 digits) |
| 200,0...1999.9 Ω | 0.1 Ω | 1 mA | ±(0.25% m.v. + 2 digits) |
