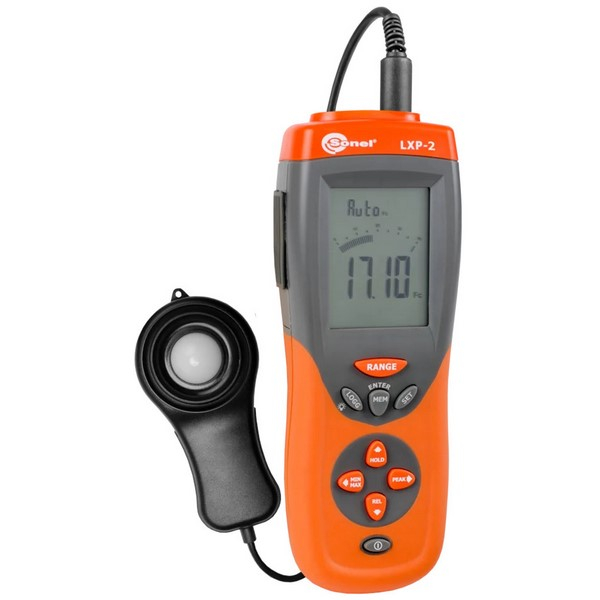

Sonel WMGBLXP2 LXP-2 Illuminance Meter

Data transmission: USB

Display: monochrome, backlit, segmented

Reliable illuminance measurements with the LXP-2 light meter

Model for people making basic lighting measurements of indoor and outdoor workplaces. The device works with LP-1 measuring probe (class B) which allows to proceed with measurements in a reliable way. The nonintegrated probe eliminates the influence of the user to the measurement result.

Main features

• high resolution up to 0.1 lx
• highly accurate measurements
• measurements of all types of light sources including:
  • LEDs lamps,
  • incandescent lamps,
  • fluorescent lamps,
  • electrodeless lamps,
  • high and low-pressure lamps
• no need to using correction factors
• photodiodes with filters make the spectral sensitivity characteristics well matched to the requirements of C.I.E.

Product functions

• data-hold for freezing measuring values
• automatic zeroing
• peak-hold for freezing the peak signal of light pulse
• capable of selecting measuring mode in Lux or FC scale
• MAX and MIN results save
• relative mode
• easy to read large backlit display
• USB connection with PC
• built-in memory: 99 points
• 16 000 values records data logger
• auto power off

Technical specification:

• display: 3-3/4 digits, LCD with 40-segment bar indicator
• exceeding of range: "OL" symbol
• spectral sensitivity: CIE photopic curve (CIE human eye sensitivity curve)
• power supply: 9 V battery or 8.4 V rechargeable battery
• photodetector: one silicon photodiode and spectral curve filter
• communication interface: USB and wireless
• operational temperature: 0...50°C | 32...122°F
• operational relative humidity: 0...80%
• storage temperature: -20...+70°C | -4...+158°F
