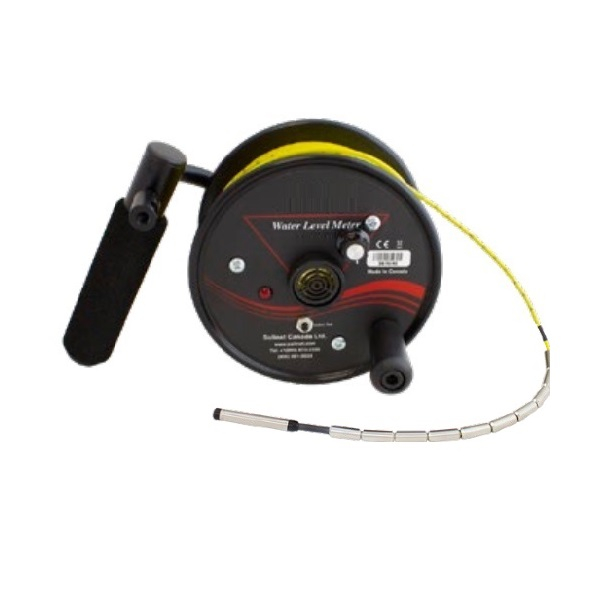

Solinst 114864 Coaxial Cable Mini Water Level Meter for Yellow Laser Marked Cable 25m, Probe 10mm dia. x 70mm long

Coaxial Cable Mini Water Level Meter for Yellow Laser Marked Cable 25m, Probe 10mm dia. x 38mm long

The laser marked coaxial cable is mounted on a convenient small reel that is light-weight and fits easily into a mini carrying case or backpack. The accurate cable is marked each millimeter or every millimeter. Mini Water Level Meter is available 25m lengths. There is the choice P10

Probe

Probe is made from 316 stainless steel and is submersible the full length of the tape. It contains a strong internal magnetic assembly to detect metal casing and a plunger assembly to measure total well depth. The tape seal plug design allows the probe to be quickly and easily replaced if required.

Features

• One probe for both well casing depth indication and total
  well depth measurement
• Uses non-stretch, accurately laser marked flat tape
• Replacement tapes are interchangeable with other Meters
• Rugged design with 3 year warranty

Applications

• Measuring total well depth
• Groundwater well installation
• Detecting gaps in well casing
• Installing telescoping well screen
• Packer and downhole instrument installation
• Hydrofracturing
• Confirming existing well construction

• Decommissioning abandoned wells
