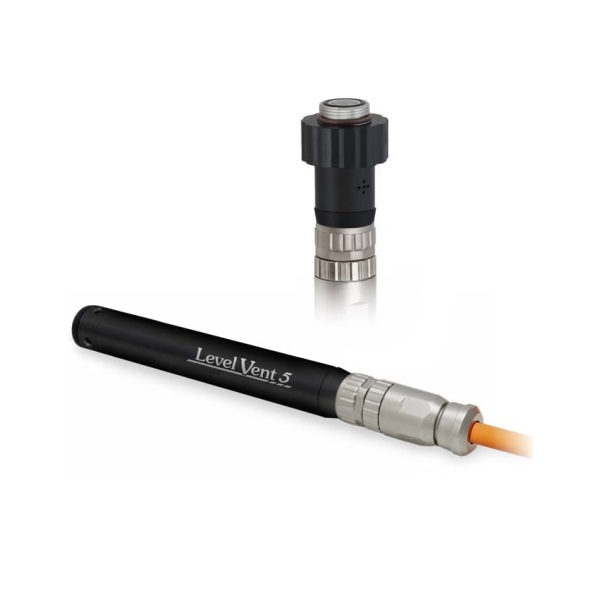

Solinst 114626 LevelVent 5, Full Scale 5m (16.4ft)

LevelVent 5, Full Scale 5m (16.4ft)

The LevelVent 5 is a vented version of popular Levelogger. The highly-accurate datalogger is designed to record water level and temperature measurements during shallow groundwater and surface water deployments. The LevelVent 5 logger contains pressure and temperature sensors, a battery, memory for up to 150,000 data logs, and hydrophobic filter within a 22 mm x 173 mm (7/8" x 6.8") stainless steel housing with a corrosion-resistant coating. The LevelVent uses a gauged pressure transducer. Easy connection for communication accessories. The vented cable and LevelVent 5 logger are protected from moisture by permanent, built-in desiccants and hydrophobic filters in the logger and the wellhead. The vented pressure transducer is made of Hastelloy, making it extremely durable and accurate in a wide range of temperature and monitoring conditions. The sensor provides an accuracy of 0.05% FS, and can withstand 2 times over-pressure without permanent damage.

Applications

• Ideal for shallow deployment: up to 20 m (65 ft)
  submergence
• Aquifer characterization: pumping tests, slug
  tests, etc.
• Stream gauging, lake, reservoir and dam
  management
• Watershed, drainage basin and recharge
  monitoring
• Stormwater and runoff monitoring
• Water supply and tank level measurement
• Long-term water level monitoring in wells and
  surface water

Features

• Corrosion and abrasion-resistant coating bakedon using polymerization technology
• Gauged pressure sensor for highly-accurate water level measurements: 0.05% FS
• Compact wellhead makes deployment simple using a 2" Well Cap Assembly
• Communication cables and accessories connect directly to the wellhead
• Long-lasting battery included in logger
• Built-in hydrophobic filters and desiccants - no need to replace, reduces maintenance
